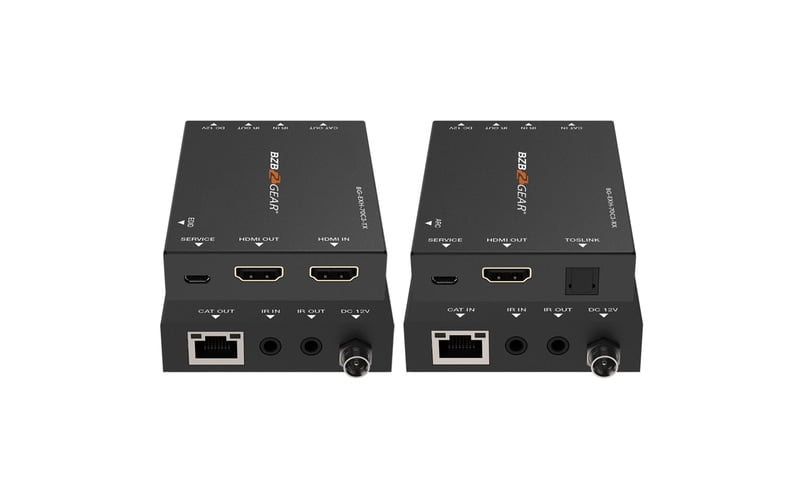

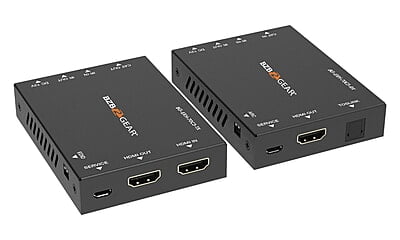

BG-EXH-70C3

The BG-EXH-70C3 is an 18Gbps HDMI extender that can transmit HDMI and IR control signals up to 230ft(70m) via a single CAT6/6a cable and the uncompressed, long-distance transmission between the transmitter and receiver is achieved with zero-delay. These devices are also HDMI 2.0b and HDCP 2.2 compliant ensuring content is protected. The extenders feature bi-directional IR and power over cable(PoC) meaning only one of the units in the pair needs a power supply while IR blaster and receiver cables can be utilized to control devices on either end of the system simplifying a clean installation.

EDID copy pass-through between the source and display devices help to ensure the best signal quality possible. Video resolution is crystal clear with up to 4K2K@60Hz 4:4:4 along with rich colors provided by HDR, HDR10, HDR10+, Dolby Vision, and HLG. ARC and audio de-embedding via the receiver optical port support LPCM 7.1, Dolby True HD, and DTS HD Master formats. The flexible and compact design of the BG-EXH-70C3 allows for a wide range of uses where signal sources may need to be further away from their displays.

Features

• HDMI Loop-out Loop-out to view content locally at transmitter side
• Bi-Directional IR Control devices via IR either from the receiver or transmitter
• HDCP 2.2 High-Bandwidth Digital Content Protection Supported
• Rich Color Contrast HDR, HDR10, HDR10+, Dolby Vision, and HLG supported
• Stunning Image Quality Crystal clear images at 4K 60Hz 4:4:4
• Power Over Cable Power only needs to be supplied to the either transmitter or receiver allowing for easier installation

• Audio Formats: LPCM 7.1, Dolby True HD, DTS HD Master
• EDID copy pass-through

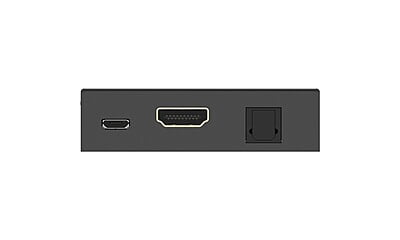

• ARC and audio de-embedding through S/PDIF optical port on receiver
