BG-8K-22MA

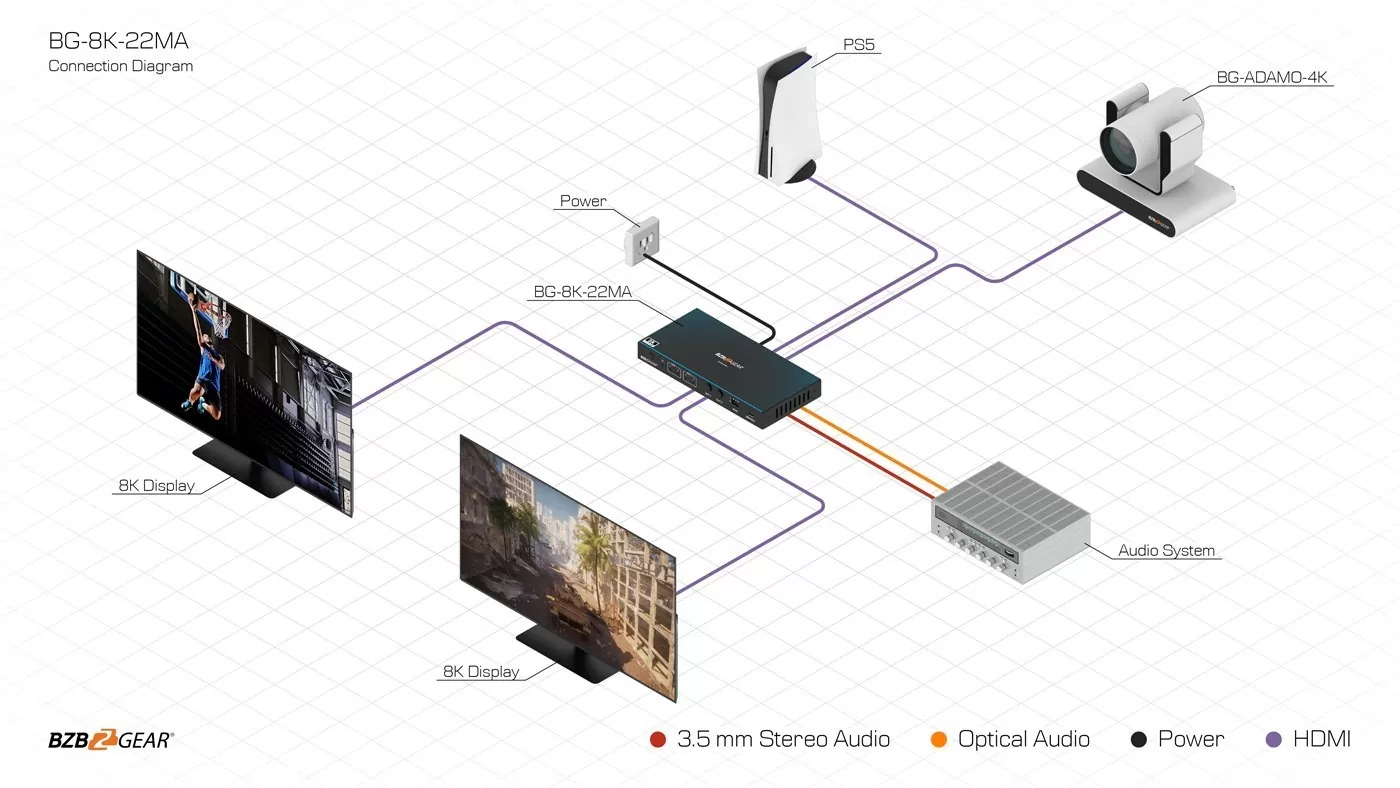

The 2x2 8K 60Hz HDMI matrix switcher is a high-performance device that allows you to switch between two HDMI input sources and send the output to two separate displays. It supports 8K resolution at 60Hz refresh rate for crystal clear picture quality. Additionally, it features audio de-embedding, allowing you to extract the audio from the HDMI signal and route it to an external audio system. The EDID management function ensures compatibility between the source and display devices by mimicking the EDID of the connected displays. This ensures optimal video and audio performance. This matrix switcher is a ideal for any professional A/V setup, home theater, and conference room.
In addition to 8K resolution at 60Hz, this 2x2 HDMI matrix switcher also supports 4K resolution at 120Hz, making it ideal for the gaming community who require the highest quality video and smooth frame rates for an immersive gaming experience. High refresh rates, such as 120Hz, can make a big difference for fast-paced games, making the image look smoother, and reducing motion blur. This feature makes this matrix switcher a great solution for gaming enthusiasts, who require the best quality picture and a seamless visual experience.
Furthermore, this matrix switcher is also compatible with 4:4:4 chroma subsampling and HDR, which means it can deliver more accurate color representation and better contrast, making it ideal for both gaming and professional video applications.
Recommended HDMI Cable
| Video Resolution | 8K | 4K60 | 4K24 | 1080P |
| HDMI Cable Type | Ultra HDMI 2.1 | HDMI 2.0 | HDMI 1.4 | HDMI 1.4 |
| HDMI Cable Length (HDMI IN / OUT) | 3m/10ft | 8m/26ft | 12m/39ft | 15m/49ft |
The use of a “Premium High-Speed HDMI” cable is highly recommended.
Features
- Secure content HDMI 2.1 and HDCP 2.3 compliant
- 8K and 4K@120Hz Video resolutions up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
- Audio formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- EDID management Seamless scaling for the best results

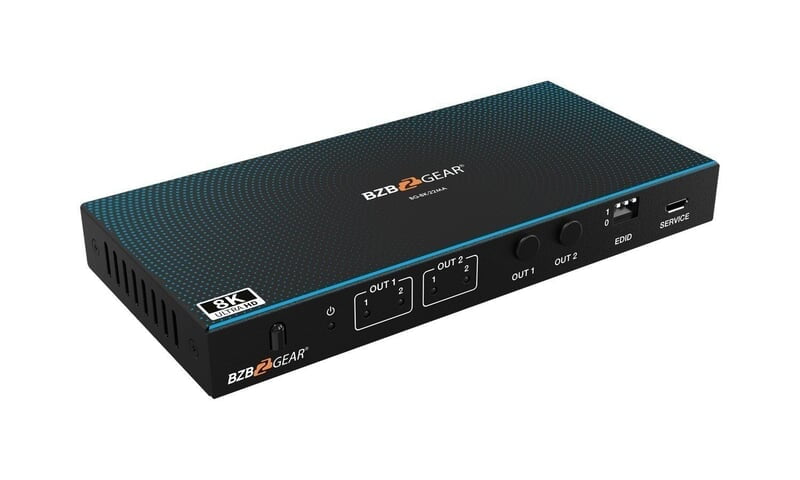

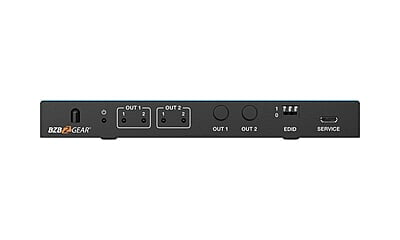

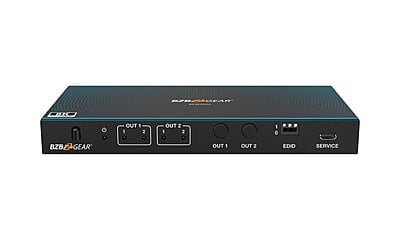

- Control options IR remote control and front panel button switching
- Compact design For easy and flexible installation
- 40Gbps video bandwidth
- HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
- VRR, FVA, ALLM

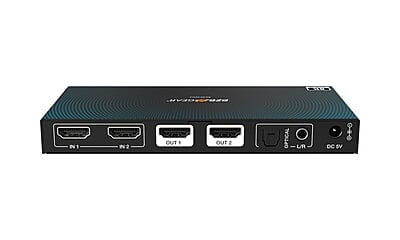

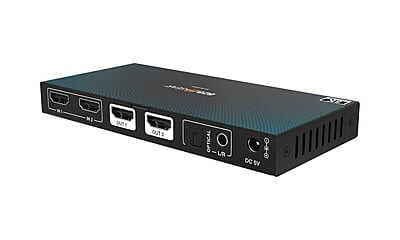

- Audio de-embedding functionality (output through the optical and analog ports)
- Built-in Equalizer, Retiming, and Driver
