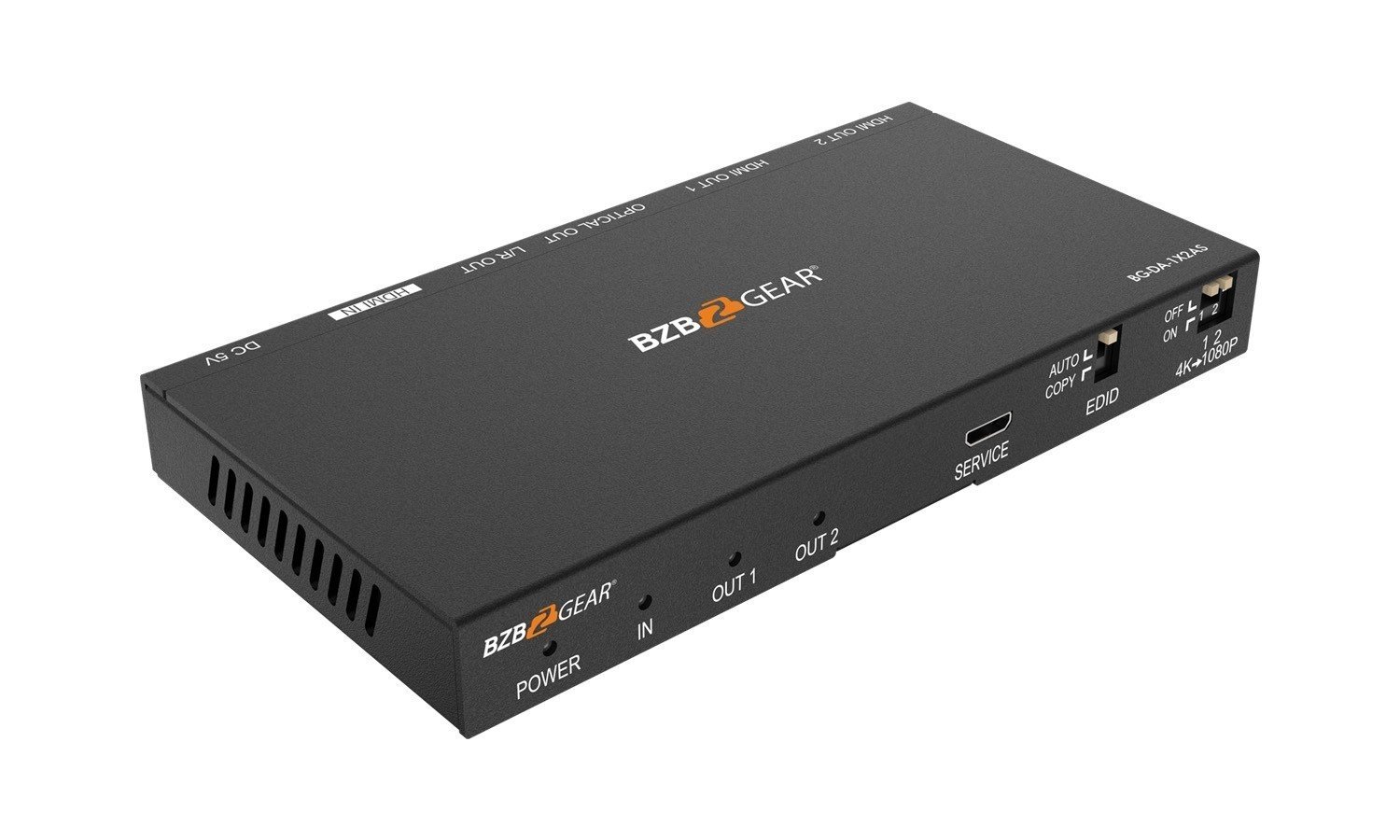

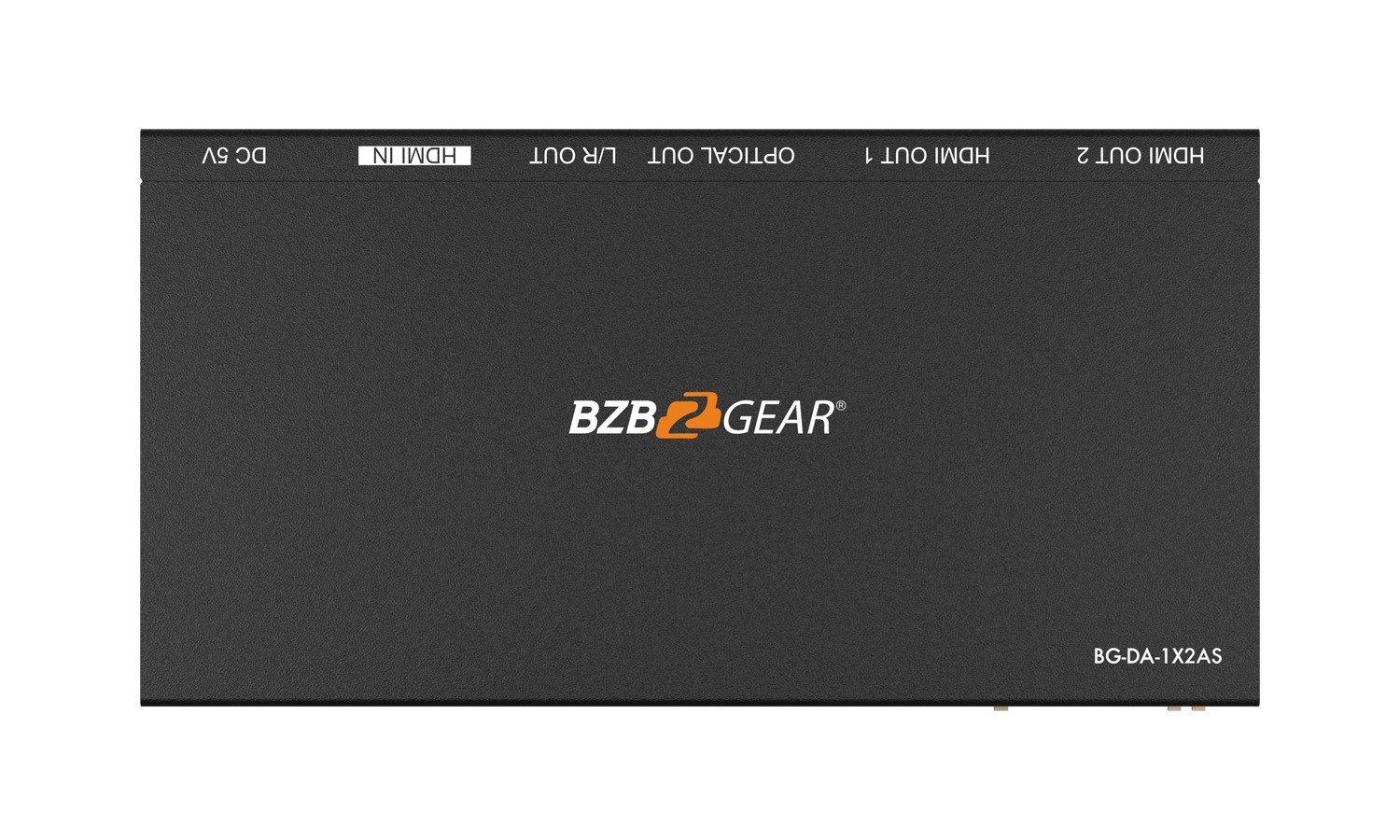

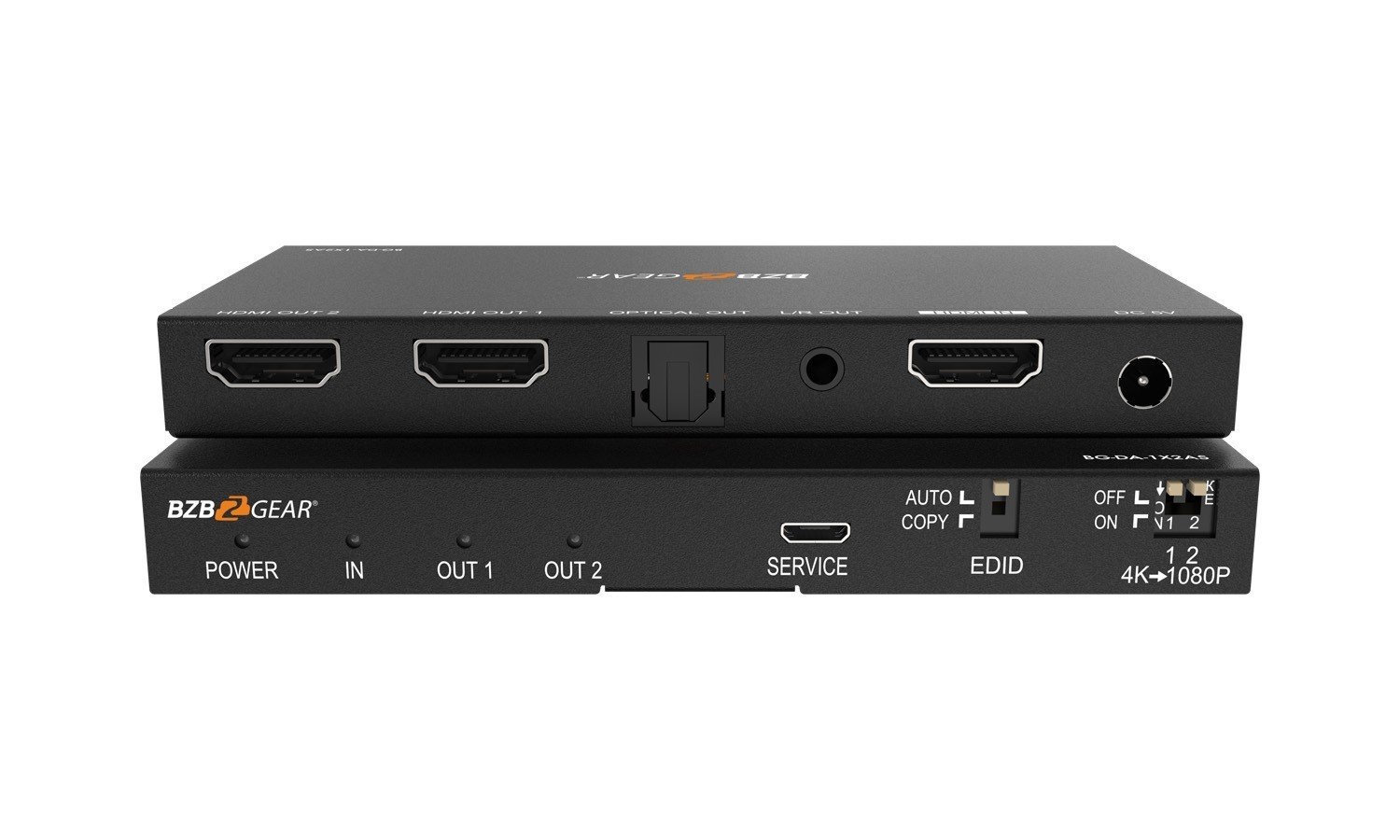

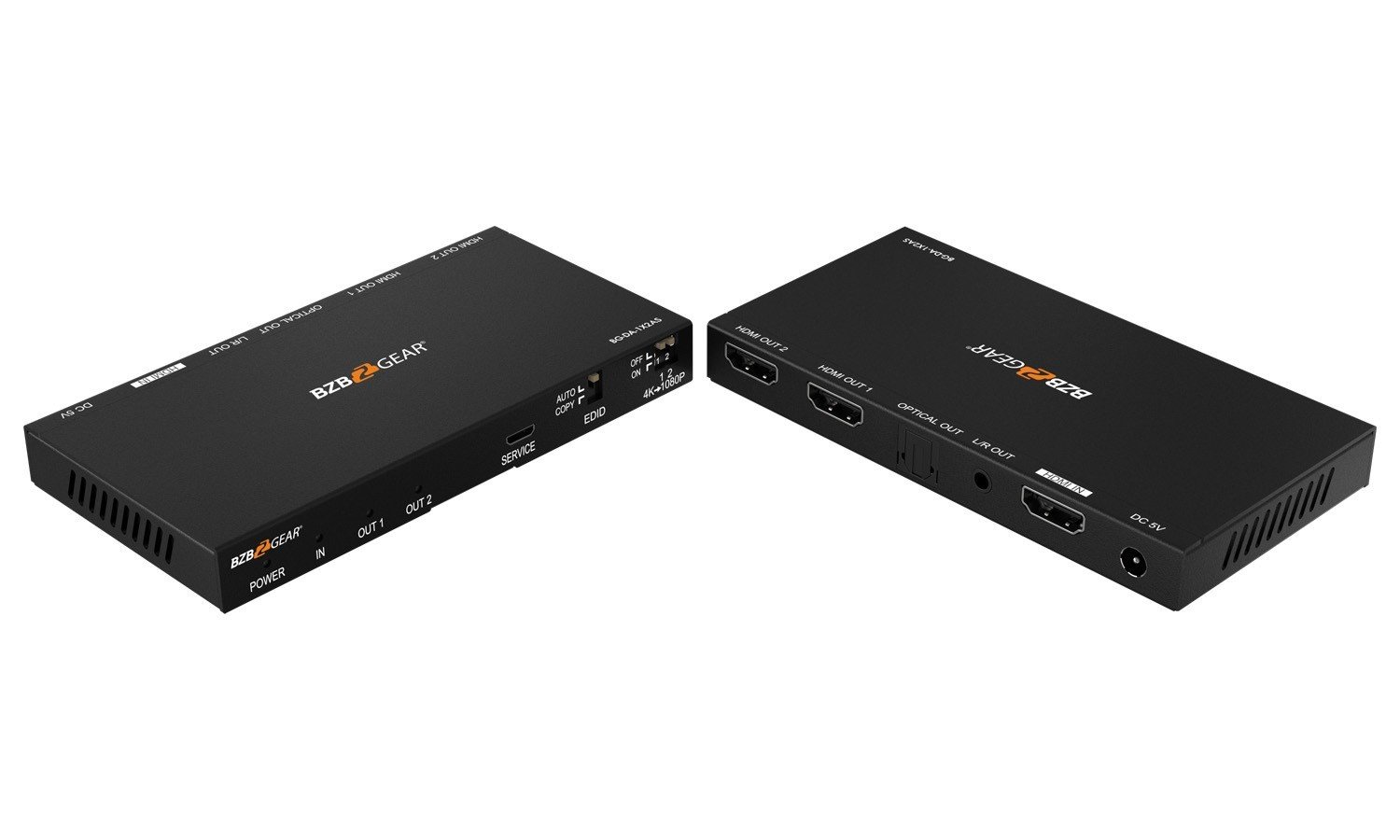

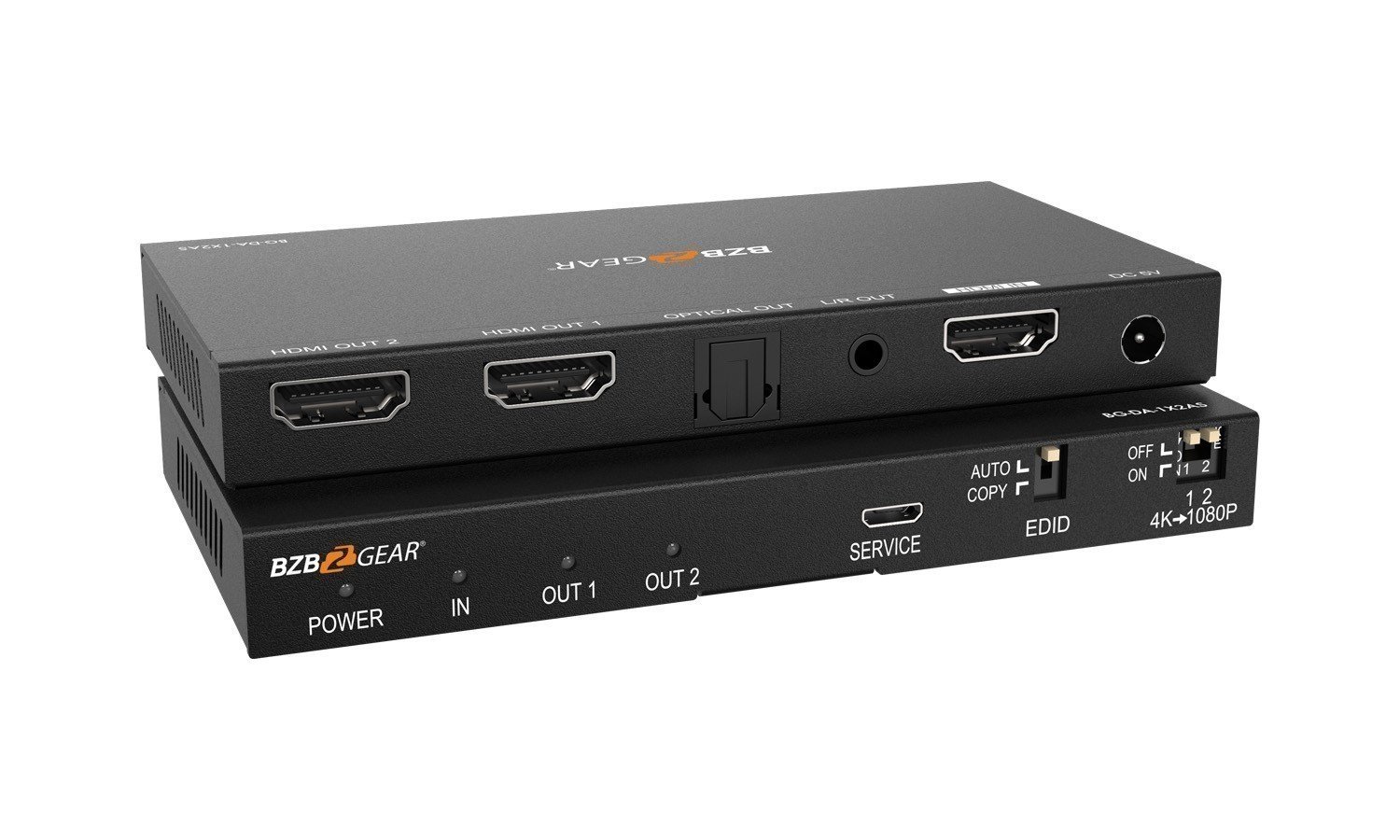

BG-DA-1X2AS | 1x2 4K UHD HDMI Splitter with Downscaler with Digital and Analog Audio Output

The BG-DA-1X2AS is a high-performance HDMI splitter designed for professional applications. It offers the ability to split one 4K@60Hz input signal into two lossless copies, making it perfect for sharing a single device with two displays. The splitter supports resolutions up to 4K@60Hz 4:4:4 and HDCP 2.2, providing exceptional picture quality and stability.

One of the key features of the BG-DA-1X2AS is its selectable 4K to 1080P downscaler for each output, which allows for compatibility with legacy displays. This feature makes it a versatile choice for installations that require flexible and adaptable video solutions.

The splitter also features EDID settings, which can be easily configured to COPY or AUTO modes, to help ensure more stable and seamless HDMI connections in different display situations.

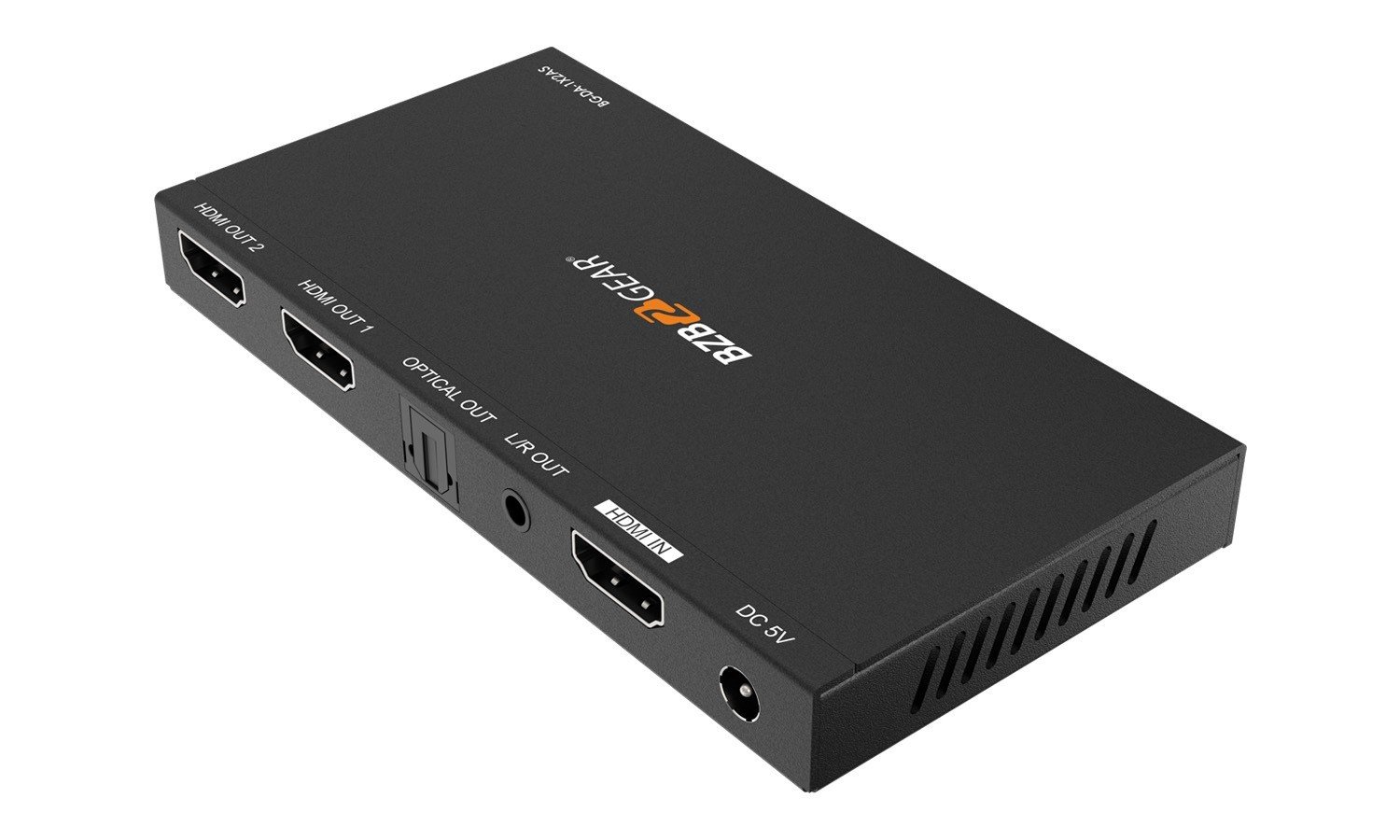

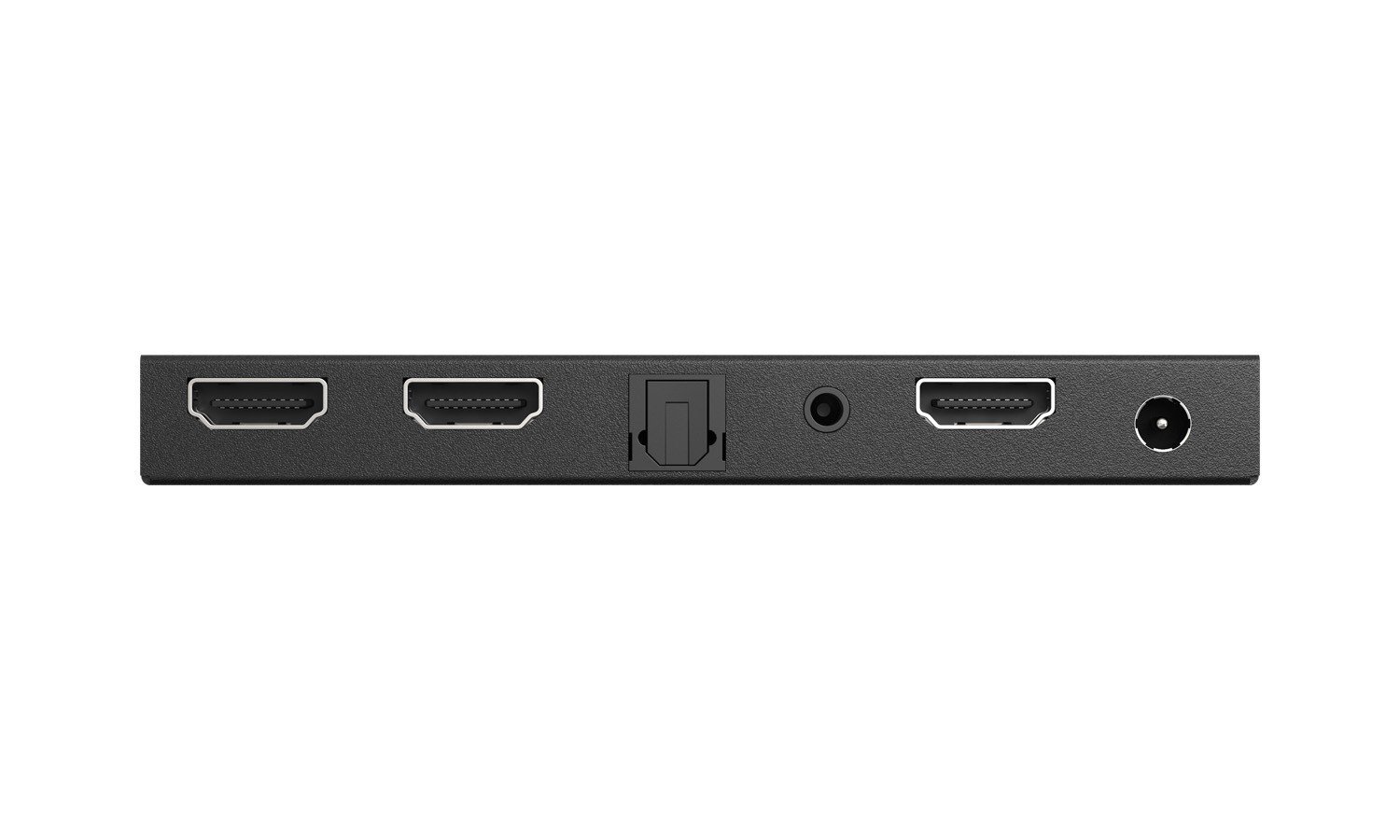

In addition to its video capabilities, the BG-DA-1X2AS also provides audio extraction via optical and 3.5mm stereo outputs, enabling it to send signals to external audio systems. The splitter supports a variety of audio formats, including LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD, making it an ideal choice for professional audio and video installations.

The BG-DA-1X2AS is built with a durable metal housing, ensuring protection against everyday wear and tear, and providing long-lasting reliability. Its advanced features and robust construction make it a reliable and versatile tool for demanding professional AV installations.

Features

• 4K Support Supports resolutions up to 4K@60Hz 4:4:4
• Audio Extraction HDMI audio extraction via optical and 3.5mm ports
• HDCP 2.2 High-Bandwidth Digital Content Protection Supported
• Downscaling Selectable 4K to 1080P downscaling feature

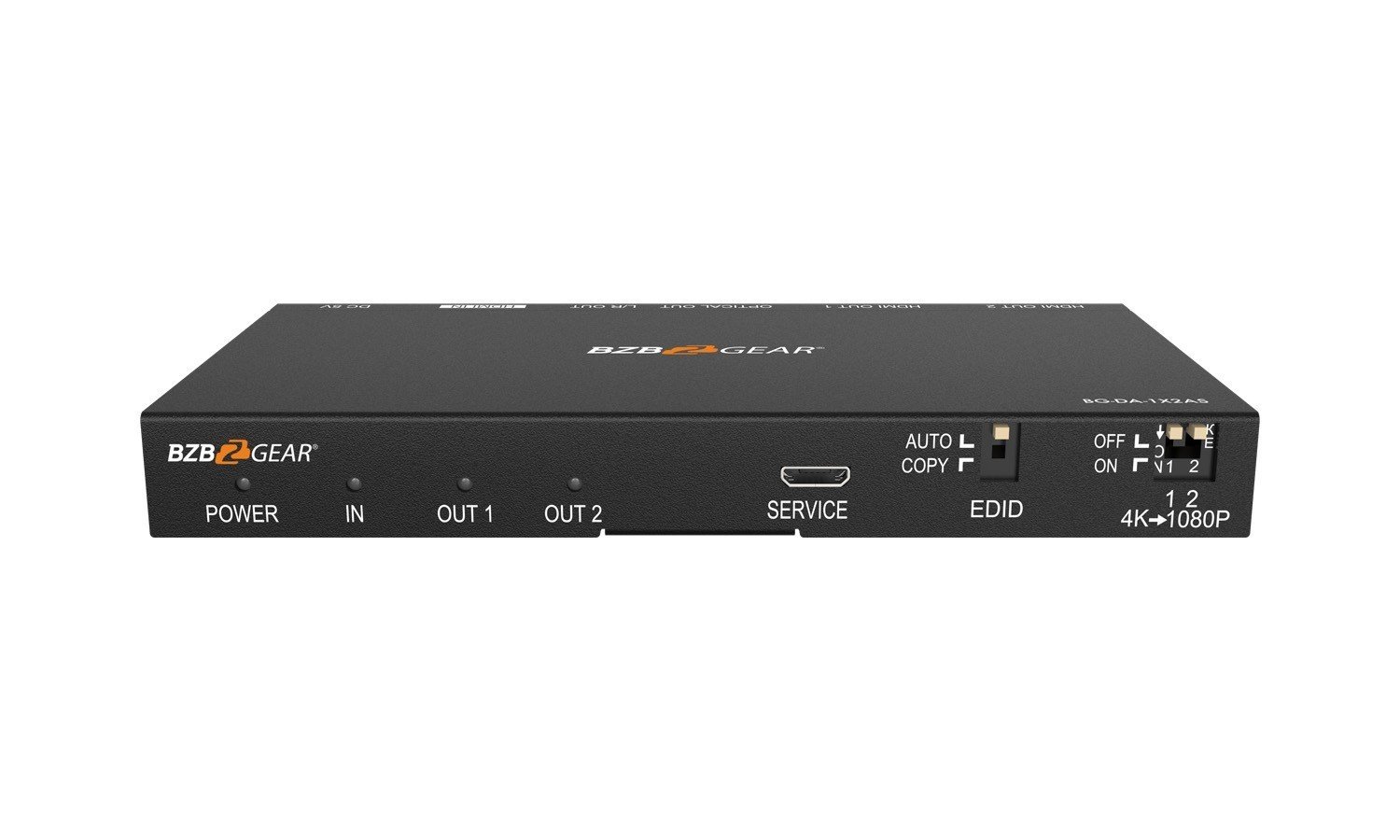

• EDID EDID dip switches ensure each output maintains a stable connection
• Easy to Use Simple for anyone to learn

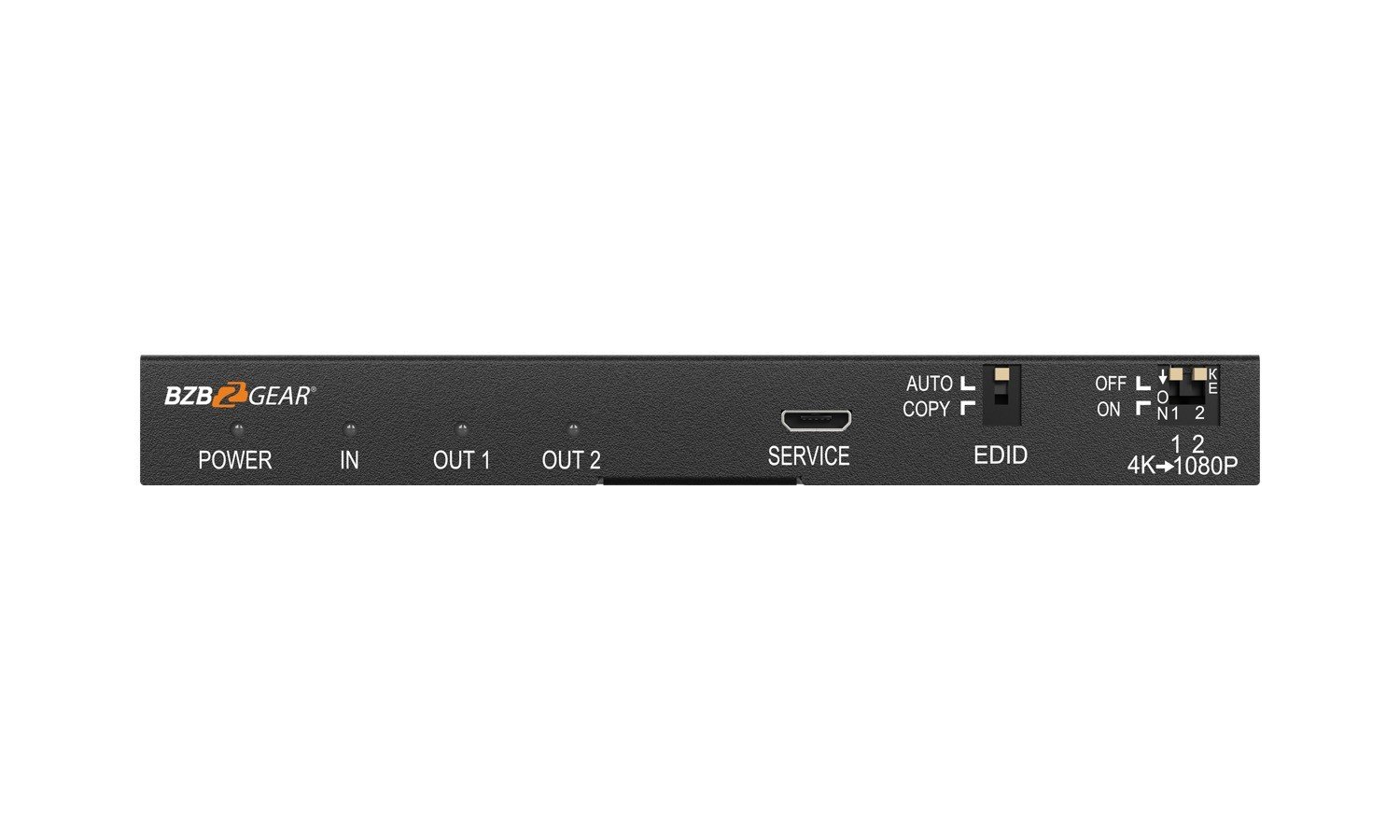

• Supports output bypass and 4K->1080P downscaling via dip switches
• EDID can be selected COPY and AUTO modes via dip switch. (COPY: It copies OUT 1 port EDID settings to all output ports; AUTO: Compares OUT 1 and OUT 2 EDID settings and outputs the best resolution to all outputs)
• Supports HDMI audio formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
