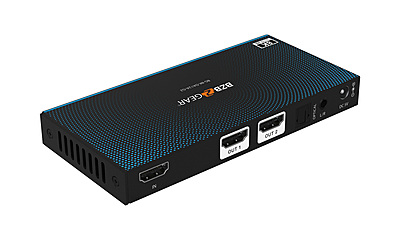

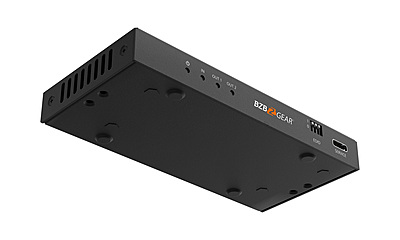

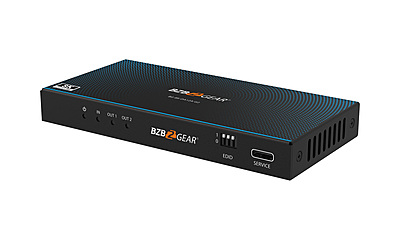

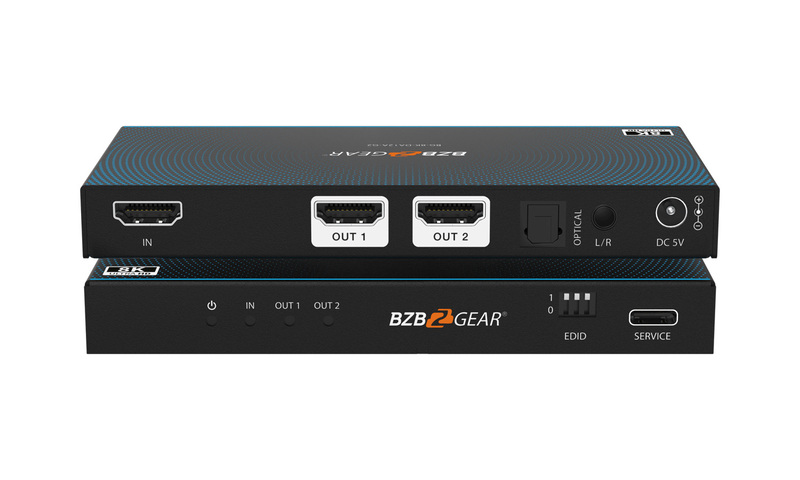

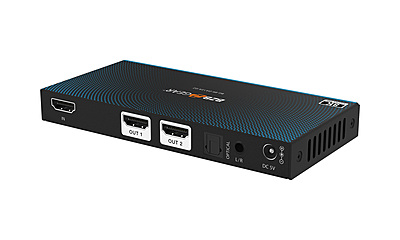

BG-8K-DA12A-G2 | 1x2 8K UHD HDMI 2.1 48Gbps Splitter with Auto Downscaling/Audio De-embedder
€169,00
Overview
The BG-8K-DA12A-G2 is a high-performance 1x2 HDMI 2.1 splitter designed to distribute a single HDMI source to two displays without compromising video or audio quality. Supporting resolutions up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit) with 48Gbps FRL bandwidth, this device ensures stunning visual clarity and fluid motion for both home entertainment and professional AV setups. Its HDCP 2.3 compliance guarantees seamless content protection, making it ideal for high-definition streaming, gaming, and presentation applications.
VAT
Not Included Choose Quantity
Product Details
| Technical Specifications | ||||
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3, HDCP 1.4 | |||
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS | |||
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit | |||
| Color Depth | 8/10/12bit | |||
| Color Space | RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 | |||
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | |||
| Audio Formats | HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Technical Audio de-embedding output: Optical: LPCM/Dolby/DTS 5.1CH Analog: LPCM 2CH | |||
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | |||
| Connection | ||||

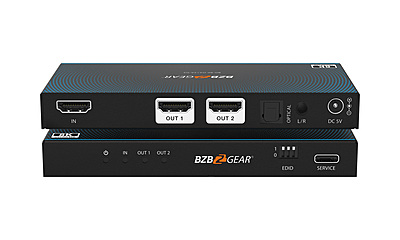

| Input | 1 x HDMI IN [Type A, 19-pin female] | |||

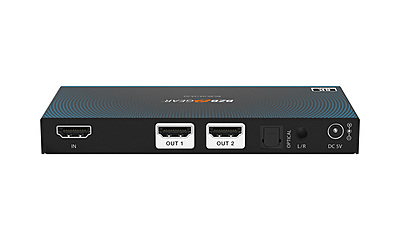

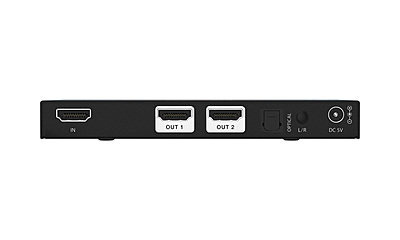

| Output | 2 x HDMI OUT [Type A, 19-pin female] 1 x OPTICAL [S/PDIF] 1 x L/R [3.5mm Stereo Mini-jack] | |||

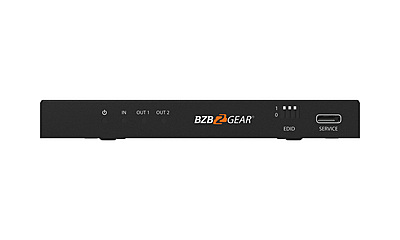

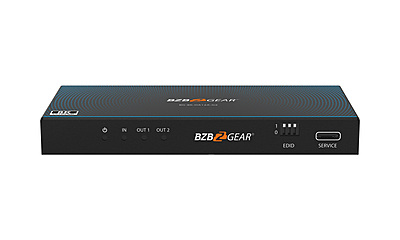

| Control | 1 x SERVICE [USB Type C, Update port] | |||
| Mechanical | ||||
| Housing | Metal Enclosure | |||
| Dimensions (W x D x H) | 5.7in x 2.7in x 0.67in [145mm x 68mm x 17mm] | |||
| Weight | 0.57 lbs [260g] | |||
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) | |||
| Power Consumption | 4.5W (Max) | |||
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C | |||
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C | |||
| Relative Humidity | 20~90% RH (non-condensing) | |||
| Recommended HDMI Cable | ||||
| Video Resolution | 8K | 4K60 | 4K24 | 1080P |
| HDMI Cable Length (HDMI IN / OUT) | 3m/10ft (Ultra HDMI 2.1) | 8m/26ft | 12m/39ft | 15m/49ft |
