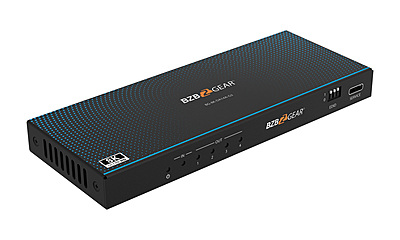

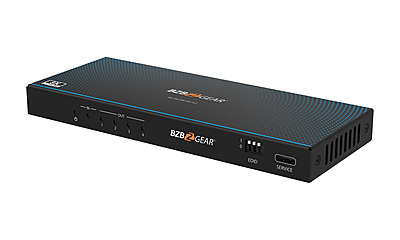

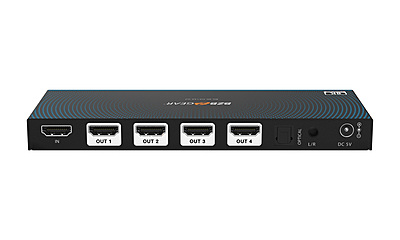

BG-8K-DA14A-G2 | 1x4 8K UHD HDMI 2.1 48Gbps Splitter with Auto Downscalling/Audio De-embedder
€249,00
Tags:
Overview
The BG-8K-DA14A-G2 is a high-performance 1x4 HDMI 2.1 splitter designed to distribute a single 8K HDMI source to up to four display devices simultaneously. Supporting cutting-edge 8K@60Hz and 4K@120Hz resolutions, this splitter ensures crystal-clear visuals with HDR10+, Dolby Vision, and HLG for a truly immersive viewing experience. With a robust 48 Gbps FRL bandwidth, HDCP 2.3 compliance, and advanced gaming features like VRR and ALLM, this device is perfect for home theaters, gaming setups, and professional AV environments. Additionally, its built-in audio de-embedding capability allows seamless extraction of audio through optical S/PDIF and analog L/R outputs, offering enhanced flexibility for integrating external sound systems.
VAT
Not Included Choose Quantity
Product Details
Tech Specifications
| Technical Specifications | ||||
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3, HDCP 1.4 | |||
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS | |||
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, 8K@30Hz 4:4:4 12bit | |||
| Color Depth | 8/10/12bit | |||
| Color Space | RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 | |||
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | |||
| Audio Formats | HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Technical Audio de-embedding output: Optical: LPCM/Dolby/DTS 5.1CH Analog: LPCM 2CH | |||
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | |||
| Connection | ||||

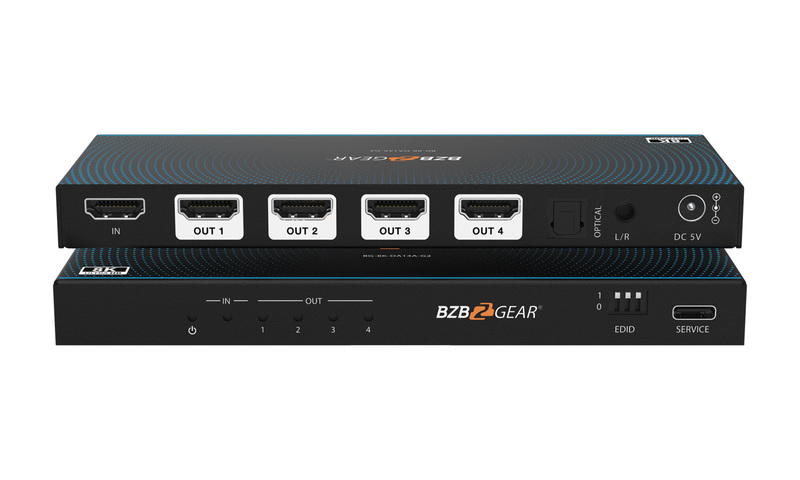

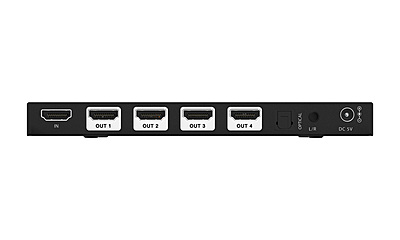

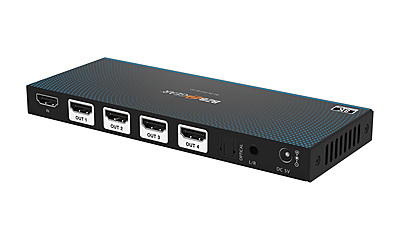

| Input | 1 x HDMI IN [Type A, 19-pin female] | |||
| Output | 4 x HDMI OUT [Type A, 19-pin female] 1 x OPTICAL [S/PDIF] 1 x L/R [3.5mm Stereo Mini-jack] | |||

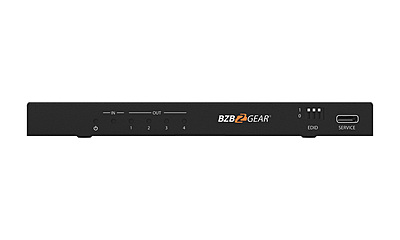

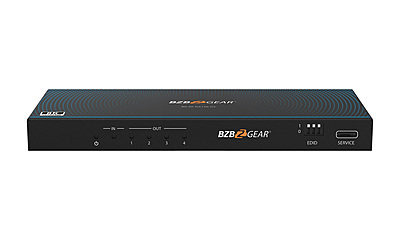

| Control | 1 x SERVICE [USB Type C, Update port] | |||
| Mechanical | ||||

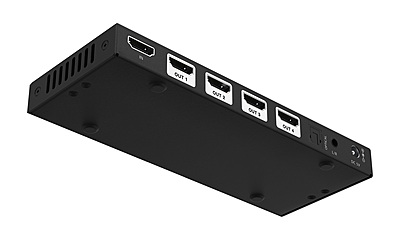

| Housing | Metal Enclosure | |||
| Dimensions (W x D x H) | 6.9in x 2.7in x 0.7in [176mm x 68mm x 18mm] | |||
| Weight | 0.65 lbs [295g] | |||
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) | |||
| Power Consumption | 6W (Max) | |||
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C | |||
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C | |||
| Relative Humidity | 20~90% RH (non-condensing) | |||
| Recommended HDMI Cable | ||||
| Video Resolution | 8K | 4K60 | 4K24 | 1080P |
| HDMI Cable Length (HDMI IN / OUT) | 3m/10ft (Ultra HDMI 2.1) | 8m/26ft | 12m/39ft | 15m/49ft |
| The use of “Premium High Speed HDMI” cable is highly recommended. |
