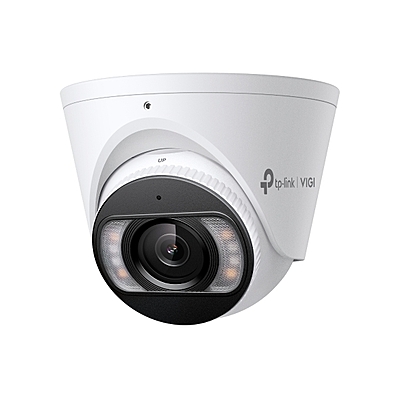

InSight S445 | VIGI 4MP Full-Color Turret Network Camera
€100,00
InSight S445
VIGI 4MP Full-Color Turret Network Camera
- 4MP Super-High Definition and 24h Full-Color
- People & Vehicle Analytics§
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
VAT
Not Included Choose Quantity
Product Details
| LENS | |
|---|---|
| Type | Fixed Focal Lens |
| Focal Length | 2.8/4 mm |
| Aperture | F1.6 |
| FOV | • 2.8 mm: Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118° • 4 mm: Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | • 2.8 mm Detect: 64 m (210 ft) Observe: 27 m (89 ft) Recognize: 13 m (43 ft) Identify: 6 m (20 ft) • 4 mm Detect: 80 m (262 ft) Observe: 33 m (108 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) |
| Angle Adjustment (Manual) | |
|---|---|
| Range | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| ILLUMINATOR | |
|---|---|
| IR LED | • Quantity: 4 • Range: 30m • Wavelength: 850nm |
| White LED | • Quantity: 4 • Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
|---|---|
| Max. Resolution | 2688 x 1520 |
| Main Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 512 Kbps |
| Image | |
|---|---|
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
|---|---|
| Audio Communicatie | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compressie | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| Netwerk | |
|---|---|
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | ONVIF Profile S/T/G |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
| Cloud | Yes |
| Beveiliging | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Alarm en Event Management | |
|---|---|
| Smart Event | • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection |
| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login) |
| Alarm Linkage | • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing |
| Deep Learning Function | |
|---|---|
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§ |
| INTERFACES | |
|---|---|
| Netwerk Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB** |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| Algemeen | |
|---|---|
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Verpakkingsinhoud | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
| Material | Metal |
| Net Weight | 0.48 Kg |
| Power Supply | • 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 12 W |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 4.4 × 4.4 × 3.3 in (111 × 111 × 83.7 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
§This function must be used with VIGI specified software.
△When People & Vehicle Analytics is enabled, only DWDR is supported.
*Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.
**SD card is not included in the package.
| CAMERA | |
|---|---|
| Beeldsensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimale Lichtsterkte | 0.005 Lux; 0 Lux with IR/White light |
| Dag/Nacht Mechanisme | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
