BG-USB3-LR100 | USB 3.0 over HDBaseT Extender (PoC, RS-232, GPIO & up to 100M/328Ft over CAT6a Cable)
€649,00
Tags:
The BG-USB3-LR100 USB 3.0 Extender is an essential tool for extending USB connections over long distances, capable of transmitting signals up to 100 meters (328 feet) using a single CAT6a cable. Designed for reliability and performance, this extender ensures high-speed data transfer with rates up to 5Gbps, making it ideal for various applications, including industrial settings and large-scale installations.

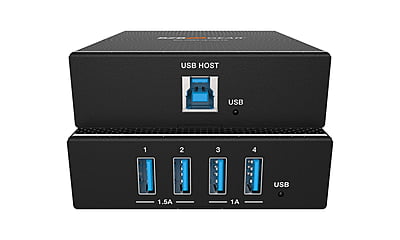

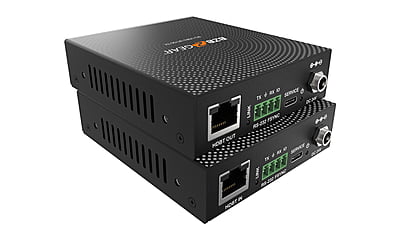

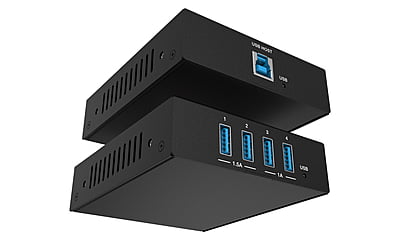

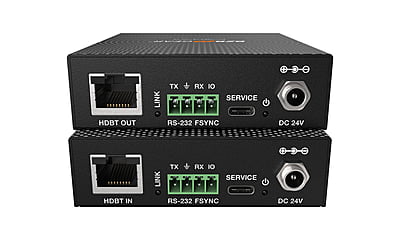

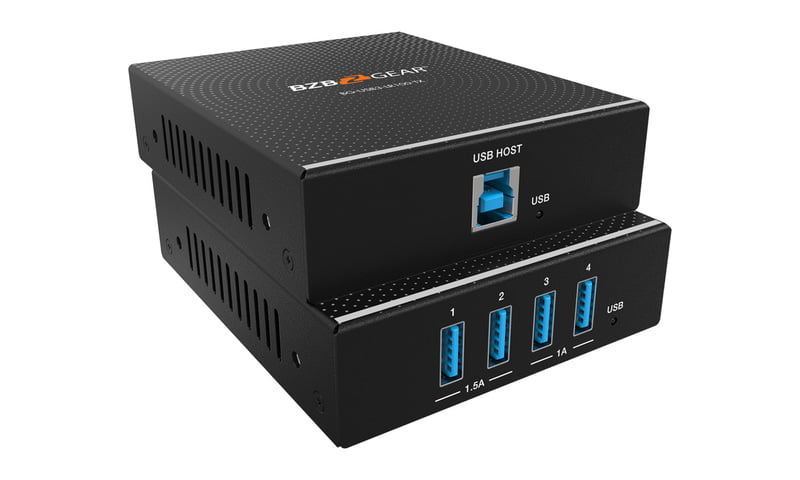

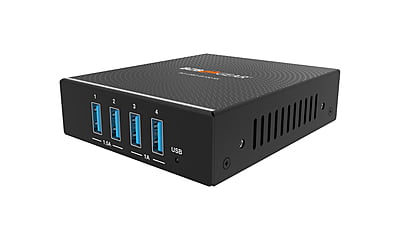

The transmitter features a USB 3.0 Type B input, FSYNC GPIO input, and RS-232 pass-through, while the receiver offers four USB 3.0 Type A outputs, FSYNC GPIO output, and RS-232 pass-through. This setup supports bi-directional 24V Power over Cable (PoC), simplifying power management and installation.
VAT
Not Included Choose Quantity
Product Details
Tech Specifications
Technical | |
| USB Protocol | USB 3.0 |
| Transmission Rate | Up to 5Gbps |
| Network Bandwidth | 10G |
| Transmission Distance | 100m/328ft over CAT6a (F/FTP) cable |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Connections | |

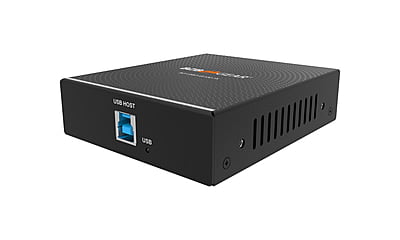

| Transmitter | Input: 1 × USB HOST [USB-B, 9pin Female] Output: 1 × HDBT OUT [RJ45, Female] Control: 1 × RS-232 [3pin-3.5mm Phoenix Connector] 1 × FSYNC [1pin-3.5mm Phoenix Connector] 1 × SERVICE [USB-C, Update Port] |

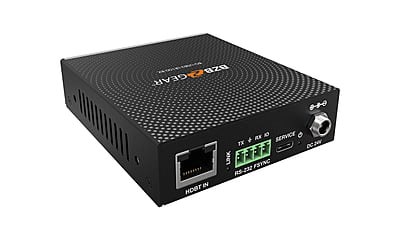

| Receiver | Input: 1 × HDBT IN [RJ45, Female] Output: 4 × USB Devices [USB-A, 9pin Female] Control: 1 × RS-232 [3pin-3.5mm Phoenix Connector] 1 × FSYNC [1pin-3.5mm Phoenix Connector] 1 × SERVICE [USB-C, Update Port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (W x D x H) | Transmitter / Receiver: 3.3in x 3.9in x 1in [85mm x 100mm x 25.5mm] |
| Weight | Transmitter: 0.56 lbs [253g], Receiver: 0.57 lbs [260g] |
| Power Supply | Input: AC 100~240V 50/60Hz, Output: DC 24V/2A |
| Power Consumption | PoC Power Supply: 40W (Max) |
| Operating Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Relative Humidity | 20~90% RH (non-condensing) |
