VIGI C540-4G | VIGI 4MP Outdoor Full-Color 4G Pan Tilt Network Camera
€138,45 €149,00
Tags:
IGI C540-4G
VIGI 4MP Outdoor Full-Color 4G Pan Tilt Network Camera
- 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Experience clear, vibrant 24-hour monitoring, even in total darkness.
- 4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available.
- 360° Monitoring: Cover every corner and eliminate blind spots.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
- Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
- Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client.
- Onboard Storage: Support on-board storage up to 512 GB (SD card slot).*
VAT
Not Included Choose Quantity
Product Details
| LENS | |
|---|---|
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94° |
| Lens Mount | M12*0.5 |
| DORI Distance | Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) |
| PTZ | |
|---|---|
| Pan/tilt Bereik | Pan: 0° to 348°, Tilt: 0° to 120° |
| Pan/tilt Snelheid | • Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s • Tilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s |
| Manual Control Speed | Configurable from 8° to 35°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Power-off Memory | Yes; Auto restore to previous PT and lens status after power failure |
| Park Action | Yes; Preset; Patrol Scan |
| 3D Positioning | Yes |
| Angle Adjustment (Manual) | |
|---|---|
| Range | • Pan: 0° to 348° • Tilt: 0° to 120° |
| ILLUMINATOR | |
|---|---|
| IR LED | • Quantity: 2 • Range: 30m • Wavelength: 850nm |
| White LED | • Quantity: 2 • Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
|---|---|
| Max. Resolution | 2560 X 1440 |
| Main Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 3 Mbps • Sub-Stream: 64 Kbps to 512 Kbps |
| Image | |
|---|---|
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure, WDR, • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software • Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
|---|---|
| Audio Communicatie | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compressie | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| Netwerk | |
|---|---|
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 2 Main Streams & 2 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
| Cloud | Yes |
| Beveiliging | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| 4G | |
|---|---|
| Standard | LTE-TDD/LTE-FDD/WCDMA |
| SIM Type | Nano SIM |
| Category | 4 |
| Frequency | • LTE-FDD: B 1/3/5/7/8/20/28 • LTE-TDD: B 38/40/41 • WCDMA: B 1/5/8 |
| Alarm en Event Management | |
|---|---|
| Smart Event | • Human & Vehicle Classification • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • People Detection • Vehicle Detection |
| Basic Event | • Motion Detection • Video Tampering Detection • Exception (Illegal Login) |
| Alarm Linkage | • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| INTERFACES | |
|---|---|
| Netwerk Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB |

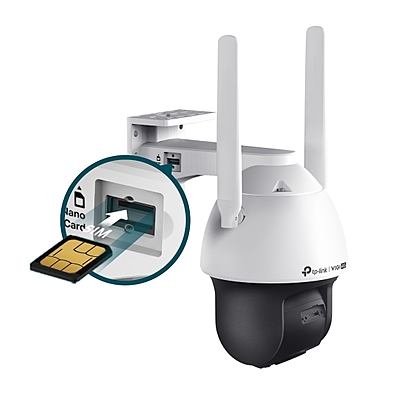

| Built-in Nano-SIM Card Slot | Yes |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| Algemeen | |
|---|---|
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Verpakkingsinhoud | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories • Power Adapter |
| Material | Plastic |
| Net Weight | 0.69 Kg |
| Gross Weight | 1.16 Kg |
| Power Supply | 12V DC/1A, 5.5mm Coaxial Power Plug |
| Antenna | • Quantity: 2 • Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna • Gain: Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz Ant2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz |
| Protection | IP66 |
| Product Dimensions (L x W x H) | 120 × 182 × 201 mm (excluding antennas) |
| Certifications | CE, RCM, BSMI, RoHS, NCC |
| CAMERA | |
|---|---|
| Beeldsensor | 1/3.06” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimale Lichtsterkte | 0.005 Lux; 0 Lux with IR/White Light |
| Dag/Nacht Mechanisme | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
