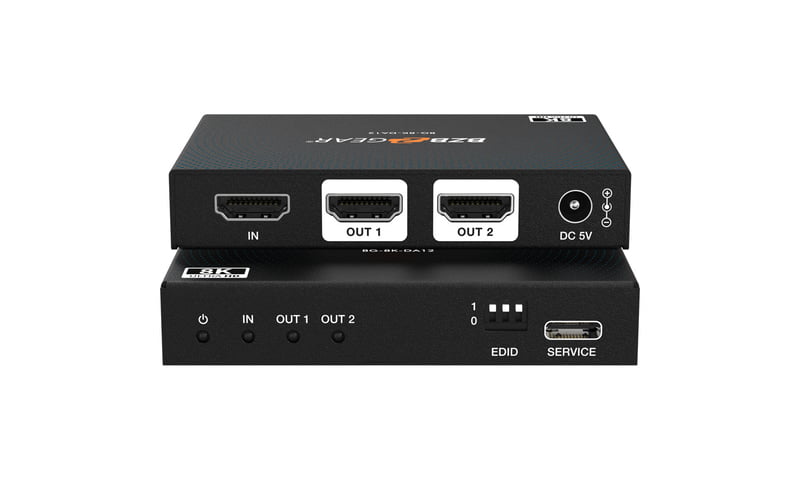

BG-8K-DA12 | 1x2 8K UHD HDMI 2.1 Splitter (8K60 4K120 4:4:4 10bit)
Overview
The BG-8K-DA12 1x2 HDMI Splitter is a high-performance device designed to split a single HDMI signal into two simultaneous HDMI outputs, delivering exceptional video quality with resolutions up to 8K@60Hz 4:2:0 12-bit. Engineered for demanding applications, this splitter supports data rates up to 48Gbps and complies with the latest HDMI 2.1 and HDCP 2.3 standards, ensuring seamless integration into any setup.
With advanced EDID management and cable equalization features, it’s the ideal solution for gaming and high-definition video environments. Whether connected to an Xbox, PS5, or any 4K/8K-capable device, this splitter allows for 4K@120Hz output on multiple TVs or monitors, offering a seamless experience for gaming and entertainment enthusiasts alike.
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS |
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit |
| Color Depth | 8/10/12bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Audio Formats | HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |

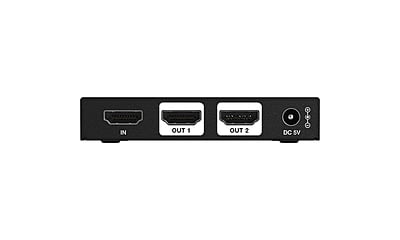

| Input | 1 × HDMI IN [Type A, 19-pin female] |
| Output | 2 × HDMI OUT [Type A, 19-pin female] |
| Control | 1 × SERVICE [USB Type C, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (W x D x H) | 3.7in x 2.7in x 0.71in [95mm x 68mm x 18mm] |
| Weight | 0.39 lbs [177g] |
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 4.3W (Max) |
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Relative Humidity | 20~90% RH (non-condensing) |
