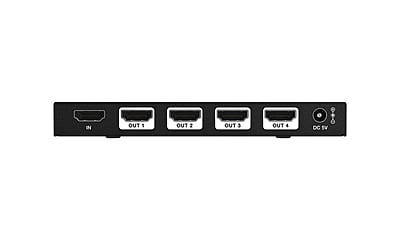

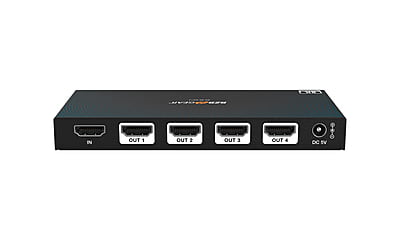

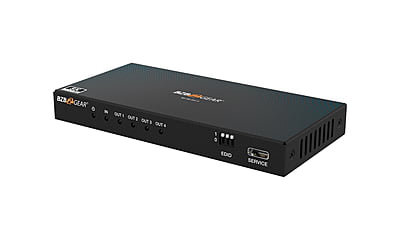

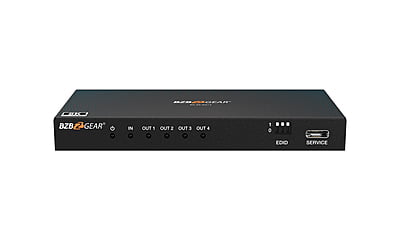

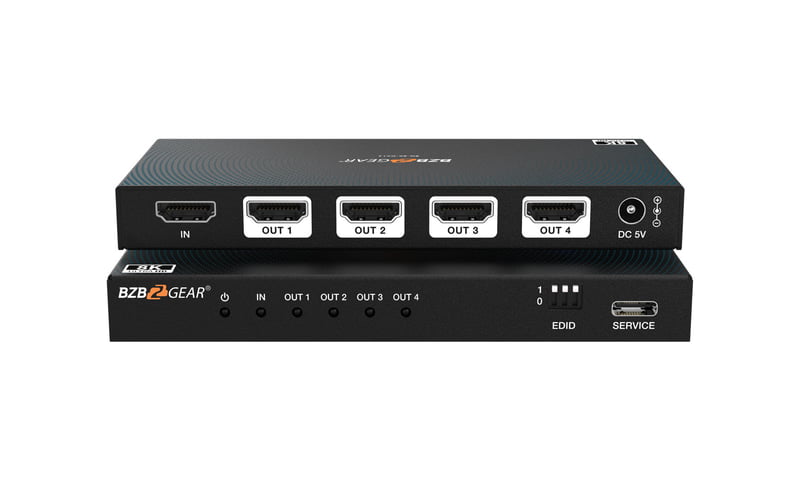

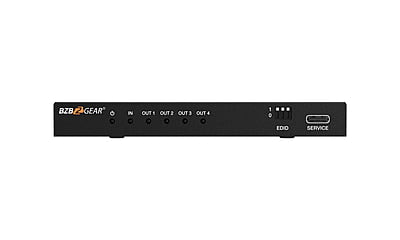

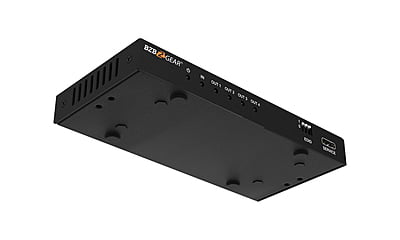

BG-8K-DA14 | 1x4 8K UHD HDMI 2.1 Splitter (8K60 4K120 4:4:4 10bit)
€149,00
Tags:
Overview
VAT
Not Included Choose Quantity
Product Details
Tech Specifications
| Technical | ||||
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3 | |||
| Video Bandwidth | 48Gbps | |||
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit | |||
| Color Depth | 8/10/12bit | |||
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 | |||
| Audio Formats | HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD | |||
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | |||
ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | |||
| Connection | ||||
| Input | 1 × HDMI IN [Type A, 19-pin female] | |||
| Output | 4 × HDMI OUT [Type A, 19-pin female] | |||
| Control | 1 × SERVICE [USB Type C, Update port] | |||
| Mechanical | ||||
| Housing | Metal Enclosure | |||
| Color | Black | |||
| Dimensions (W x D x H) | 5.7in x 2.7in x 0.71in [145mm x 68mm x 18mm] | |||
| Weight | 0.58 lbs [263g] | |||
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) | |||
| Power Consumption | 5.5W (Max) | |||
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C | |||
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C | |||
| Relative Humidity | 20~90% RH (non-condensing) | |||
| Recommended HDMI Cable | ||||
| Video Resolution | 8K | 4K60 | 4K24 | 1080P |
| HDMI Cable Length (HDMI in / out) | 3m/10ft (Ultra HDMI 2.1) | 8m/26ft | 12m/39ft | 15m/49ft |
| The use of “Premium High-Speed HDMI” cables is highly recommended. |
