4x1 8K UHD HDMI 2.1 Switcher with Audio De-embedder (8K60, 4K120Hz 4:4:4 10bit VRR, FVA, ALLM support)
€149,00
Tags:
Overview

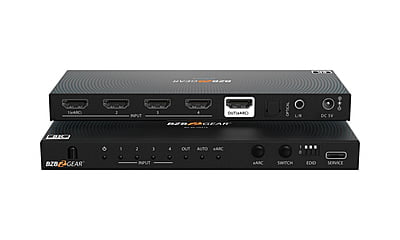

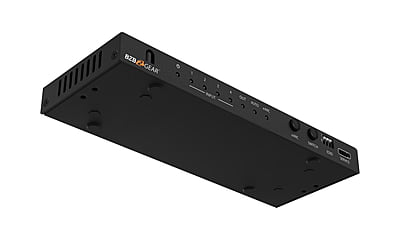

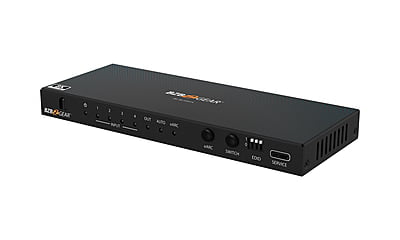

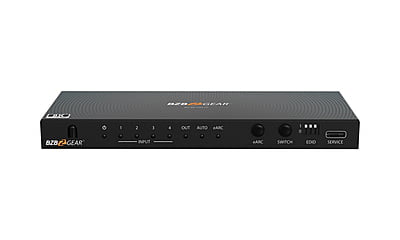

The BG-8K-HS41A 48Gbps 4x1 HDMI Switcher is a high-performance solution designed to seamlessly switch between four HDMI source signals on a single HDMI display. Capable of supporting video resolutions up to 8K@60Hz 4:2:0, this switcher is equipped with cutting-edge features to enhance your audiovisual experience. Its advanced EDID management, CEC control, ARC/eARC support, and comprehensive audio de-embedding options make it an excellent choice for home entertainment, gaming, and more.
VAT
Not Included Choose Quantity
Product Details
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS |
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, 4K@120Hz 4:4:4 12bit |
| Audio Latency | No Latency |
| Video Latency | No Latency |
| Color Depth | 8/10/12bit |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Audio Formats | HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD eARC Audio Out: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD Audio De-embedded Output: Optical: LPCM 2.0CH/Dolby/DTS 5.1CH Analog: LPCM 2.0CH |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input | 4 × HDMI IN [Type A, 19-pin female] |
| Output | 1 × HDMI OUT [Type A, 19-pin female] 1 × OPTICAL [S/PDIF] 1 × L/R [3.5mm Stereo Mini-jack] |
| Control | 1 × SERVICE [USB Type C, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (W x D x H) | 6.9in x 2.7in x 0.71in [176mm x 68mm x 18mm] |
| Weight | 0.69 lbs [315g] |
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 2.5W (Max) |
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Relative Humidity | 20~90% RH (non-condensing) |
