8K60 HDMI 2.1 eARC Audio to Soundbar Converter
Overview
The BG-8K-SA HDMI eARC Audio to Soundbar Adapter is a high-performance solution designed to extract audio signals from HDMI sources or TVs with ARC/eARC functionality and seamlessly output them to a soundbar. Supporting data rates up to 48Gbps and fully compliant with HDMI 2.1 and HDCP 2.3 standards, this adapter ensures outstanding audio and video quality, making it a perfect addition to modern home theater systems.
It handles video resolutions up to 8K@60Hz 4:2:0 12-bit and 4K@120Hz 4:4:4 12-bit, delivering stunning visuals with support for high dynamic range (HDR) formats like HDR10, HDR10+, Dolby Vision, and HLG. Additionally, the adapter supports advanced HDMI 2.1 features, such as Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), Quick Media Switching (QMS), Quick Frame Transport (QFT), and Source-Based Tone Mapping (SBTM), ensuring smooth and responsive video playback.
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS |
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit |
| Audio Latency | No Latency |
| Video Latency | No Latency |
| Color Depth | 8/10/12bit |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Audio Formats | HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X eARC AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |

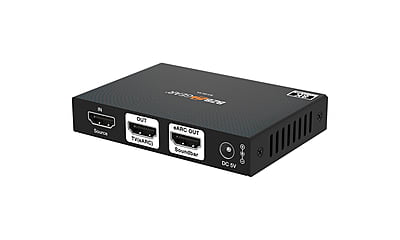

| Input | 1 × Source IN [HDMI Type A, 19-pin female] |
| Output | 1 × TV(eARC) OUT [HDMI Type A, 19-pin female] 1 × Soundbar eARC OUT [HDMI Type A, 19-pin female] |

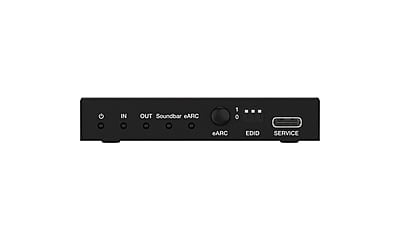

| Control | 1 × SERVICE [USB Type C, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (W x D x H) | 3.7in x 2.7in x 0.71in [95mm x 68mm x 18mm] |
| Weight | 0.39 lbs [178g] |
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 4.13W (Max) |
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Relative Humidity | 20~90% RH (non-condensing) |
