USB-C kabel 2 meter, 20Gbps, 240W , 4K60
€28,00 €30,00
Tags:

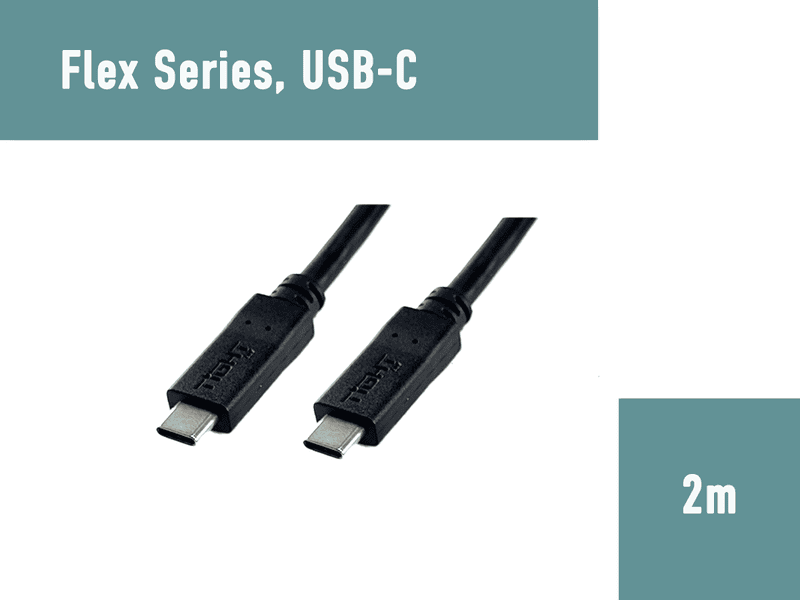

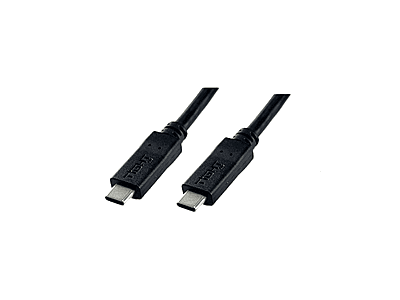

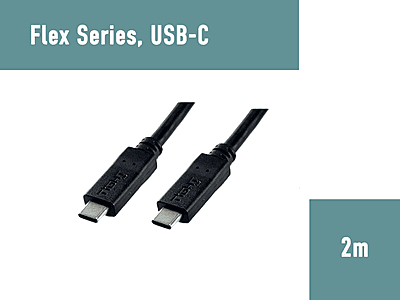

USB-C 4K60 FLEX Cable - 2m
This cable will solve your USB-C cable problems. It supports 20Gbps, 240W charging, Thunderbolt 3/4, Up to USB 4, DisplayPort alt mode (1, 2 or 4 lanes) and Displaylink
Of course 4K60 4:4:4 is supported as well
Of course 4K60 4:4:4 is supported as well
Product URL
https://www.tightav.com/usb-c-4k60-flex-cable-2m VAT
Not Included Choose Quantity
Product Details
| TECHNICAL SPECIFICATIONS | |
| USB | |
| USB Specification | USB 20Gbps, 10Gbps, 2.0, 1.1 Compatible |
| Max Data Speed: | 20Gbps (2x10Gbps) |
| Video Support: | DisplayPort Alt mode (1,2 or 4 Lanes), Thunderbolt 3/4, DisplayLink |
| Resolution: | 4K60 4:4:4 |
| PHYSICAL | Full Featured Male USB-C to Male USB-C |
| Connector over mold: | PVC |
| Connector inner mold: | LD-PE |
| CONDUCTORS | |
| Material: | Tinned Copper |
| Conductors: | 30AWG (0.28/1) |
| Wire Specification: | (30AWG(0.28/1)*1P+DAM)*4P+32AWG*1P+32AWG*4C+22AWG*2C+E+AEB |
| SCREENING | |
| Type: | Triple shielding |
| Metal Shell Sheilding | |
| Type: | Nickel plated metal can |
| JACKET | |
| Color: | Black |
| Diameter: | 5.6mm ± 0.25mm |
| Material: | PVC |
| MECHANICAL | |
| Cable Bending Radius: | 45mm |
| ELECTRICAL | |
| Temperature Rating: | 80°C |
| Storage Temperature: | (-)20-80°C |
| Voltage Rating: | 30V |
| Conductor Resistance: | 381Ω/KM |
| Insulation Resistance: | >100MΩ |
| Power | |
| Maximum Power Delivery | 240W (PD3.1) |
| Maximum Current | 5A |
| E-Marker Chip: | HUSB332B, Hynetek Semiconductor |
| STANDARDS COMPLIANCE | |
| Safety: | PVC UL VW-1 |
| Environmental: | RoHS, REACH, WEEE |
| Compliance | CE |
| MODELS | |
| USBC-M/MLOCK-FLEX-1 | USB-C 4K60 FLEX CABLE WITH LOCKING CONNECTOR- 1M |
| USBC-M/MLOCK-FLEX-2 | USB-C 4K60 FLEX CABLE WITH LOCKING CONNECTOR- 2M |
| USBC-M/M-FLEX-1 | USB-C 4K60 FLEX CABLE- 1M |
| USBC-M/M-FLEX-2 | USB-C 4K60 FLEX CABLE- 2M |
