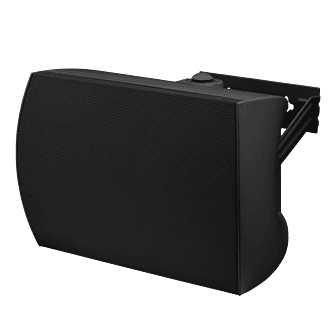

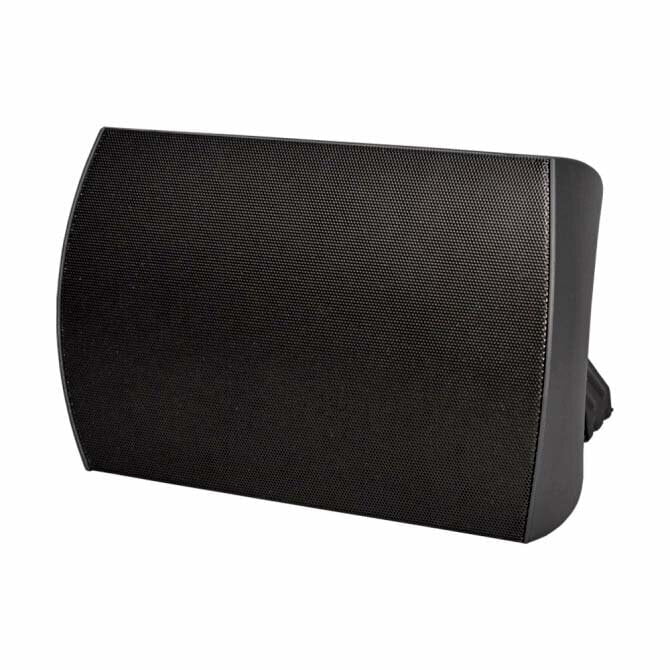

SoundTube IPD-SM52-EZ-WX-BK Dante Speaker
SoundTube IPD-SM52-EZ-WX IP-Addressable Speaker in Black
The IPD-SM52-EZ-WX is a Dante-enabled, weather resistant, digital end-point solution in a surface-mount loud speaker. This speaker includes a 40 W PoE amplifier for simplified installation and set up. Driver components consists of one 5.25 inch polypropylene woofer and one 1.0 inch soft dome tweeter in a ported enclosure. The included pre-mountable surface-mount bracket allows for quick and easy installation and the powder-coated aluminum grille keep the speaker looking good in most environments. The system is UL 60065 approved. IP-Rating: IP65. Included accessories: Safety cable, wall mount bracket, conduit connector and port plug. If used outdoors, port plugs must be installed to ensure protection from moisture.
*Note: If used indoors, remove the grille and take the plug out of the port for greater bass output. Port must remain plugged to maintain IP65 rating in outdoor use. Also: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)
| Color | Black |
|---|---|
| UPC | 752830447585 |
| Manufacturer | SoundTube |
| Manufacturer's Category | STNet IP-Addressable and Dante Series |
| Depth | 6.63 in / 168.4 mm |
| Height | 11.88 in / 301.75 mm |
| Width/Diameter | 7.5 in / 190.5 mm |
| Shipping Weight | 7.8 lbs / 3.54 kg |
| Carton Height | 12 in / 304.8 mm |
| Carton Length | 15 in / 381 mm |
| Carton Width | 10.5 in / 266.7 mm |
| Certifications | CE, IP65, RoHS, UL60065 |
| Included Accessories | Mounting Hardware, Port Plug, Safety Cable |
| Source Inputs | RJ45 Ethernet Port |
| IP Rating | IP65 |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 91° Horizontal / 120° Vertical |
| Crossover Frequency | 3.5 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 6.9 and 5.9 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.2 and 7.7 |
| Frequency Response (± 10 dB) | 55 Hz - 20 kHz | Sealed: 62 Hz - 20 kHz |
| Frequency Response (± 3 dB) | 65 Hz - 20 kHz | Sealed: 80 Hz - 20 kHz |
| Grille Properties | Aluminum, Black, Powder-Coated |
| Low Frequency Voice Coil | 25.4 mm (1") high temperature Kapton |
| Max SPL @ 1M | 97 dB |
| Tweeter Driver | 1" Soft Dome |
| Woofer Driver | 5.25" Polypropylene Cone w/ Butyl Rubber Surround |
