DSP-AEC-1410
14X10 DSP WITH GPIO
Advanced DSP with freely assigned processing blocks, GPIO and camera control

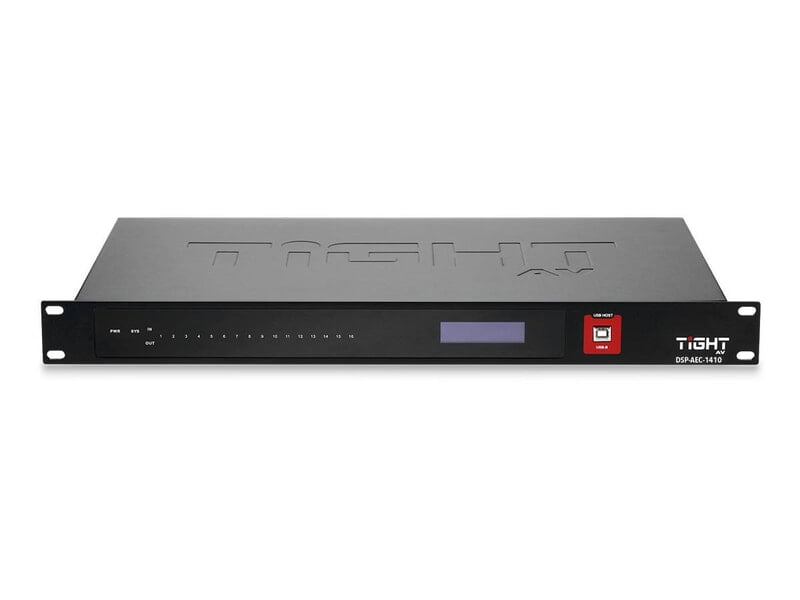

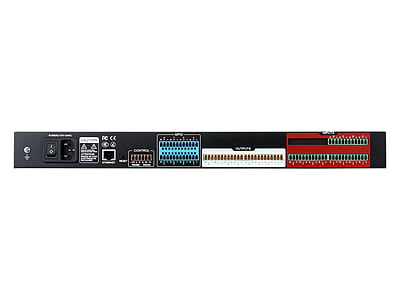

Sometimes you need to go big. The DSP-AEC-1410 offers 12 analog ins and 8 analog outs, as well as 8 GPIO ports plus RS232 and RS485 control. The front panel USB port can operate as a two-channel USB record/playback channel, giving the unit a total of 14 inputs and 10 outputs.
As the name suggests, the DSP-AEC-1410 is equipped with advanced acoustic echo cancellation, making it ideal as a centerpiece in web conference installations to eliminate unwanted feedback. Other DSP facilities include EQ, dynamics, mixer, and matrix, which can be freely configured via five processing blocks per channel. PTZ camera control is also supported, allowing you to choose which channel’s thresholds should trigger the camera’s presets.
For critical applications, two parallel-wired 1410s can be set up in Redundancy Mode, for automatic changeover in case of power or component failure.
As an option, programmable control panels (sold separately) offer the end user hands-on control to parameters set by the integrator.
Type | ADI SHARC 21489 |
DSP Handling Capacity | 400 MIPS, 1,6 GFLOPS |
Input | |
Inputs | (12) Analog Mic/line Audio |
Input Connector | (3) 12-pin Green Terminal Blocks |
Phantom Power | 48V (Max 10mA), selectable per input |
Output | |
Outputs | (8) Analog Line Audio |
Output Connector | (2) 12-pin Yellow Terminal Blocks |
Interface | |
Ethernet | (1) LAN, 10/100/1000 Base-T Ethernet |
Ethernet Connector | (2) RJ45 |
USB | (1) USB 2.0, Type B |
Serial | (1) RS-232, (1) RS-485 |
Serial Connector | (1) 6-pin Brown Terminal Blocks |
GPIO | (8) GPIO |
GPIO Connector | (2) 12-pin Blue Terminal Blocks |
Input Gain | 0 - 48dB in 3dB steps |
Frequency Response | ±0.2dB (20Hz~20KHz) |
Maximum Level | +18dBu |
THD + Noise | 0.003%@4dBu |
Input Dynamic Range | 110dB |
Output Dynamic Range | 112dB |
Background Noise (A-weighted) | -91dBb |
Common Mode Rejection Ratio @60Hz | 80dB |
Channel Isolation @1KHz | 108 dB |
Input Impedance (Balanced) | 9.4kΩ |
Output Impedance (Balanced) | 102Ω |
System Latency | <3ms |
Sample Rate | 48 kHz |
Bit Depth | 24 Bit |
General | |
Power requirements | AC110~240V 50Hz-60Hz |
Maximum Power Consumption | <40W |
Rack Space | Half Rack |
Dimensions (W x D x H) | 482mm x 264mm x 44mm |
Shipping Weight | 3kg |
Operating Temperature | 0 ~ +40℃ |
Storage Temperature | -25 ~ +70℃ |
Relative Humility | 10% - 90% |
Compliance | |
Compliance | FCC, CE |
Environmental Compliance | RoHS, REACH, WEEE |
