HDMI-M/M-FLEX-1
HDMI FLEX CONNECTION CABLE, 1M

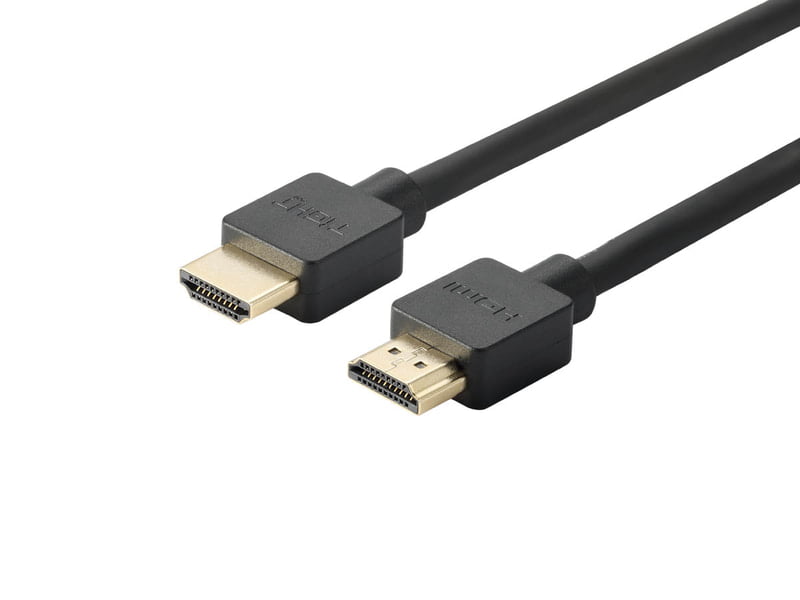

Designed for both performance and aesthetics, the sleek connectors seamlessly integrate into any environment, ensuring top-tier performance without compromising on style. The gold-plated HDMI connectors, featuring a flat design without a friction lock, guarantee easy, safe connections, protecting both your devices and the cable.

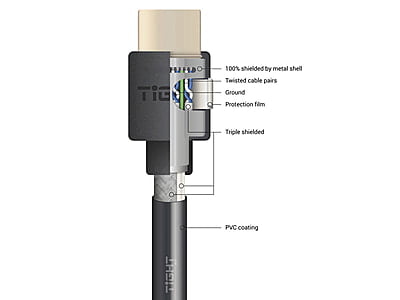

The cables offer robust protection with triple shielding and a metal shell shield at the connector, minimizing interference and ensuring uninterrupted viewing.
Available in various lengths from 0.5m to 5m, TiGHT AV's connection HDMI cables deliver optimal signal integrity and lasting reliability.
Video |
|
Max Resolution for 0,5-5m: | Up to 4K@60Hz 4:4:4, High Speed Certification |
Max Data Rate: | Up to 18 Gbps (6Gbps per channel) |
Supported Color Spaces: | RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020 |
HDMI Compliance: | HDR, HDCP 2.3, EDID, CEC, ARC and ETH |
|
|
AUDIO |
|
Supported Audio Formats: | Dolby Digital Plus™, Dolby TrueHD™, DTS−HD Master Audio™, DVD Audio, SA−CD |
|
|
PHYSICAL | Male HDMI type A, 24K gold−plated Connector |
Connector: | Copper shell with gold plating |
Connector over mold: | PVC |
Connector inner mold: | LD-PE |
|
|
CONDUCTORS |
|
Material: | Tinned Copper |
0,5-5m: | 30AWG (7/0.10) |
Wire Specification: | (1P+D+ AL/MY)x5C+4C+FILLER+ADB(85%AL-M) |
|
|
SCREENING |
|
Type: | Triple shielding |
|
|
Metal Shell Sheilding |
|
Type: | Nickel plated metal can |
|
|
JACKET |
|
Color: | Black |
Diameter: | 6.0mm ± 0.25mm |
Material: | PVC |
|
|
MECHANICAL |
|
Cable Bending Radius for 0,5-5m: | 45mm |
|
|
ELECTRICAL |
|
Temperature Rating: | 80°C |
Storage Temperature: | (-)20-80°C |
Voltage Rating: | 30V |
Conductor Resistance: | 381Ω/KM |
Insulation Resistance: | >100MΩ |
|
|
STANDARDS COMPLIANCE |
|
Safety: | VW-1 |
Environmental: | RoHS, REACH, WEEE |
Compliance | CE |
|
|
MODELS |
|
HDMI-M/M-FLEX-0.5 | HDMI HIGH SPEED ULTRA FLEXIBLE CABLE - 0.5M |
HDMI-M/M-FLEX-1 | HDMI HIGH SPEED ULTRA FLEXIBLE CABLE -1M |
HDMI-M/M-FLEX-1.5 | HDMI HIGH SPEED ULTRA FLEXIBLE CABLE - 1.5M |
HDMI-M/M-FLEX-2 | HDMI HIGH SPEED ULTRA FLEXIBLE CABLE - 2M |
HDMI-M/M-FLEX-3 | HDMI HIGH SPEED ULTRA FLEXIBLE CABLE - 3M |
HDMI-M/M-FLEX-5 | HDMI HIGH SPEED ULTRA FLEXIBLE CABLE - 5M |
