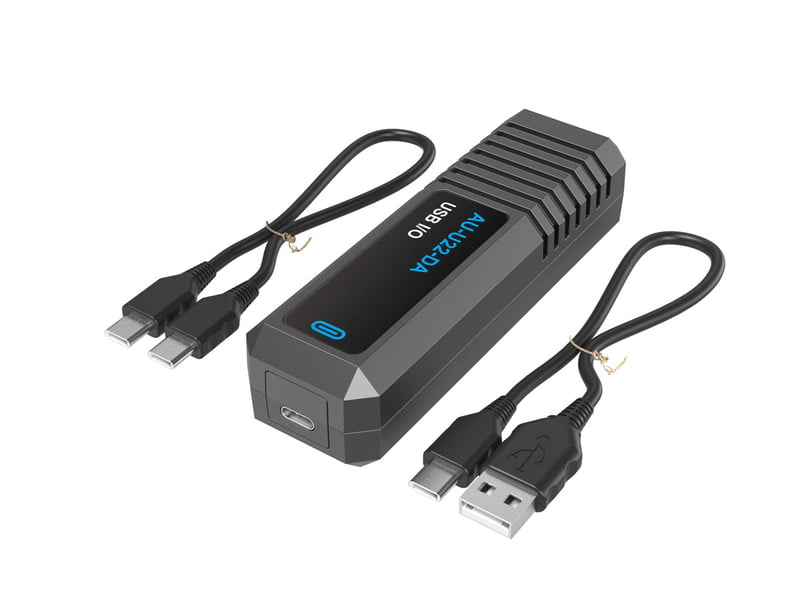

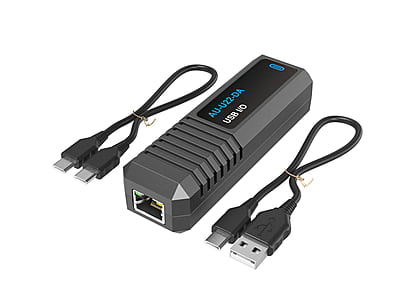

AU-U22-DA
DANTE 2X2 CHANNEL USB 2.0 ADAPTER
AU-U22-DA from TiGHT AV allows for transmitting two channels of USB audio to your Dante network and simultaneously receiving two channels of Dante Audio. It supports sample rates up to 48kHz, using Audinate’s original Dante Ultimo chip.
Featuring class-compliant drivers, the AU-U22-DA allows for connecting any computer or mobile device that supports USB audio, to a Dante network without any software installation needed. Simply plug it in and get to work!
The package includes two types of USB cables: Type-C to Type-C and Type-C to Type-A. Power is supplied via PoE or by USB power from connected source device.
Dante | |
Sample Rate | 48 kHz |
Bit Depth | 24 |
Model Name | AU-U22-DA |
Dante Device Latency | 1, 2 or 5ms (configurable using Dante Controller) |
Network Transport | Dante Audio over IP AES67 RTP |
General | |
Power | 802.3af PoE or USB |
Operation Temperature | -5 to +55℃ |
Storage Temperature | -25 to +70℃ |
USB | USB2.0, Type-C |
Power Consumption | 9W(Max) |
USB Power Delivery | 5V 1.5A (7.5Watts) |
Dimension(W*H*D) | 115x 34 x 28 mm |
Cable length | 20cm |
Net Weight | 70g |
Compliance | FCC, CE |
Environmental | RoHS, WEEE |
