BG-EXH-70WP-W | 4K UHD 18Gbps HDMI Wall Plate Transmitter & Receiver Kit up to 230ft
€699,00
Tags:
Overview

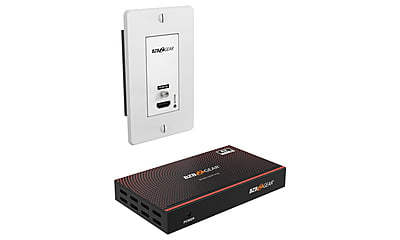

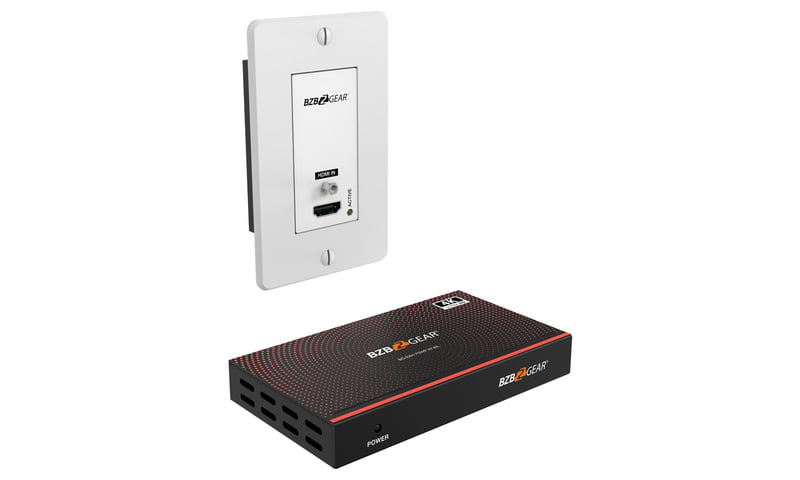

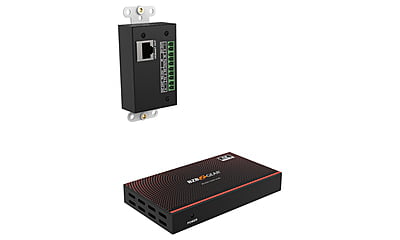

Introducing the BG-EXH-70WP-W HDBaseT Wall Plate Kit, featuring a sophisticated HDBaseT Wall-plate Transmitter and an HDBaseT to HDMI Receiver, designed to elevate your AV experience with seamless signal transmission and exceptional performance.
The transmitter boasts HDMI 2.0b compliance and HDCP 2.2 compatibility, ensuring seamless connectivity and support for high-definition content. With support for resolutions up to 4K2K@60Hz (4:4:4), 4K2K@30Hz, and 1080p@120Hz, it delivers stunning visual clarity and fidelity, making it perfect for a wide range of applications.
VAT
Not Included Choose Quantity
Product Details
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 1.4 and HDCP 2.2 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | Up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz |
| Color Space | RGB/YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-bit, 12-bit |
| HDMI Audio Formats | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Optical Audio Formats | LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH |
| ESD Protection | Human body model—±8kV (Air-gap discharge) & ±4kV(Contact discharge) |
| Connections | |

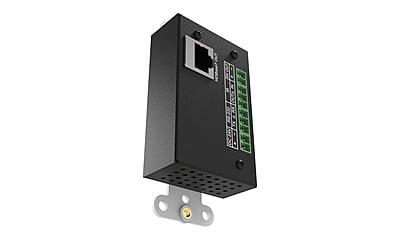

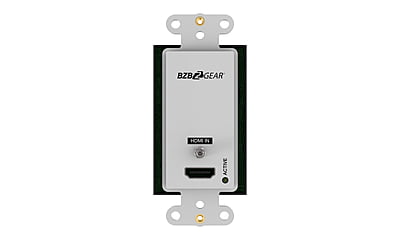

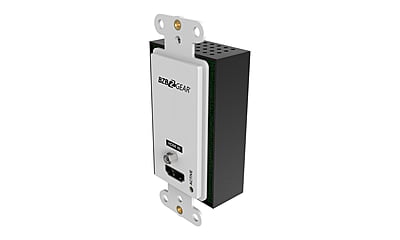

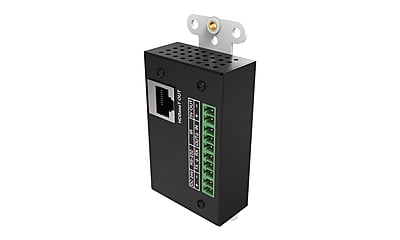

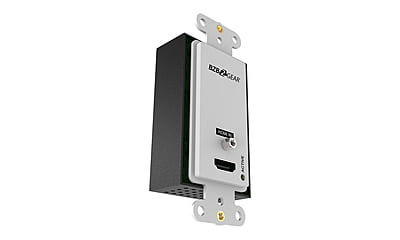

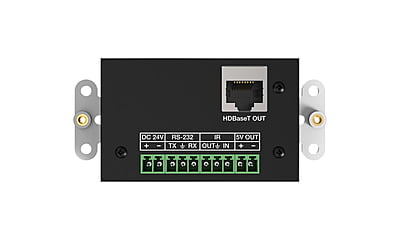

| Transmitter | Inputs: 1x HDMI Type A [19-pin female] 1x IR INPUT [Phoenix jack] 1x RS-232 [Phoenix jack] Outputs: 1x HDBaseT OUT [RJ45] 1x IR OUTPUT [Phoenix jack] 1x RS-232 [Phoenix jack] |

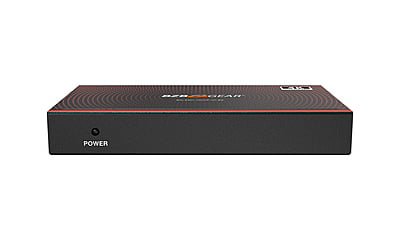

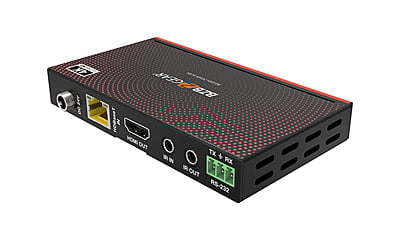

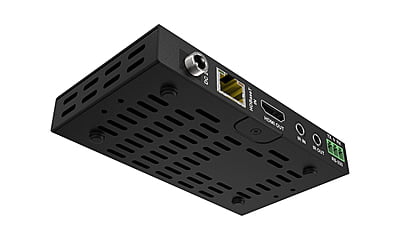

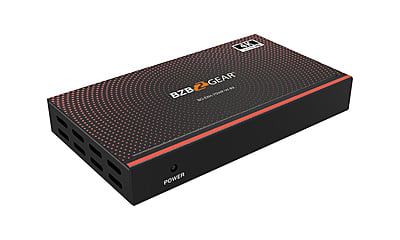

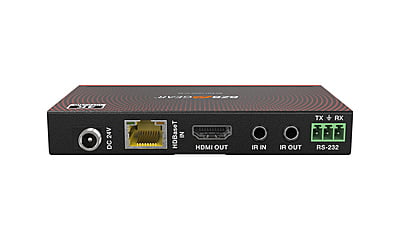

| Receiver | Input: 1x HDBaseT IN [RJ45, 8-pin female] Output: 1x HDMI OUT [Type A, 19-pin female] Controls: 1x IR in, 1x IR out, 1x RS-232 serial port |
| Mechanical | |
| Housing | Plastic-Front Panel, Metal-Rear Case |
| Color | White-Front Panel, Black-Rear Case |
| Dimensions (W x D x H) | Wall plate: 4.1in x 1.8in x 1.2in [103.5mm x 46mm x 30mm] Receiver: 4.6in x 2.6in x 0.71in [117mm x 66mm x 18mm] |
| Weight | Wall plate: 5.75 oz [163g], Receiver: 7.1 oz [201g] |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 9W (Max) |
| OperatingTemperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
