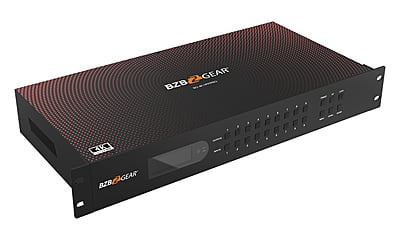

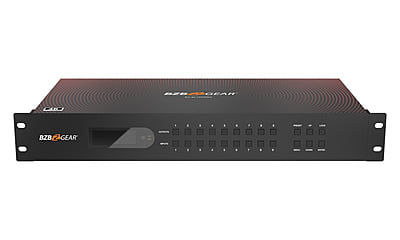

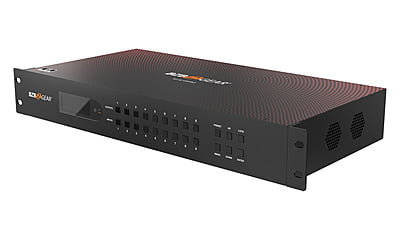

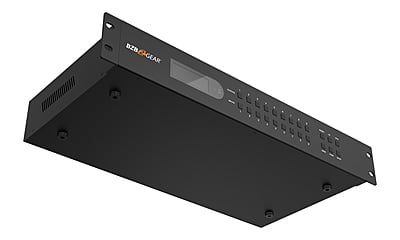

BG-4K-VP99PRO | 9x9 4K UHD Seamless HDMI Matrix Switcher/Video Wall Processor/MultiViewer

Introducing the BG-4K-VP99PRO 9x9 HDMI 2.0 over CAT5/6/7 matrix switcher with 3x3 Video Wall and 9 source multiview capabilities. Experience the pinnacle of versatility and cutting-edge technology with this advanced HDMI matrix switcher, perfect for a wide range of professional AV installations.

Unparalleled Connectivity and Quality

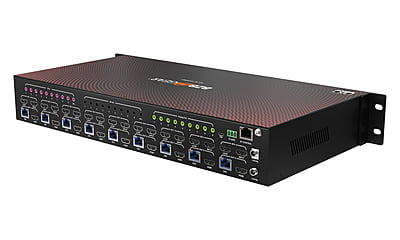

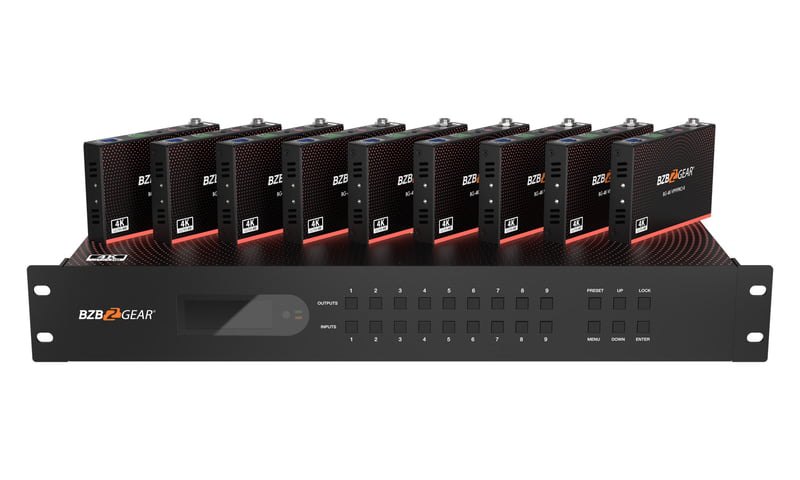

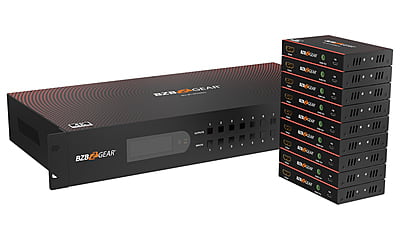

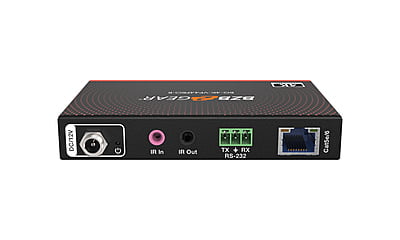

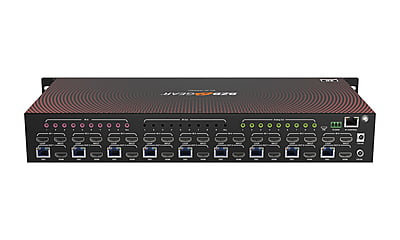

The BG-4K-VP99PRO offers an impressive array of connectivity options to cater to your diverse needs. With 9 HDMI inputs, 9 HDMI loop outs, 9 HDMI outputs, and 9 DSC outputs featuring Power over Cable (POC) support, seamless integration with multiple sources, displays, and audio systems is guaranteed. Additionally, for large-scale AV projects and installations, all HDMI sources can be extended up to 70m(229ft) over CAT5/6/7.

Delivering stunning visuals with exceptional clarity and color reproduction, the BG-4K-VP99PRO supports resolutions up to 4K60Hz 4:4:4. Its impressive bandwidth of 18Gbps ensures the smooth transmission of high-quality content.

Seamless Connectivity and Future-Proof Design

Built-in EDID settings optimize communication between your source devices and displays, ensuring a seamless and reliable connection. HDCP 2.2/1.4 compliance guarantees compatibility with a wide range of devices while protecting your content against unauthorized duplication. Stay up-to-date with the latest features and improvements through the convenient micro-USB port, enabling firmware updates and future enhancements. Enjoy precise and visually appealing video wall configurations with screen edge adjustments. Expand your creative possibilities with 180° rotation and mirror functions offered by the BG-4K-VP99PRO.

Advanced Video Processing Capabilities

The BG-4K-VP99PRO offers a range of advanced video processing capabilities, including video signal seamless switching, video wall creation, multiview, and preset settings. Seamlessly switch between video sources for uninterrupted viewing experiences. Create captivating video walls with a maximum configuration of 3x3 screens, allowing you to showcase content across a larger canvas. Display up to 9 sources on a single screen. Save and recall your preferred configurations effortlessly with the matrix switcher’s support for preset settings.

Immersive Audio and User-Friendly Control

Experience immersive audio alongside stunning visuals with the BG-4K-VP99PRO's balanced audio extraction support. Ideal for professional presentations, conferences, and professional AV installations, this feature ensures a complete sensory experience.

Installation and control are made convenient and flexible with multiple options. Take advantage of panel buttons, IR remote control, TCP/IP control, RS232 commands, and the BG-SWITCH-CONTROL app, a free BZBGEAR proprietary matrix switcher control software for Windows, Mac, iOS, and Android to easily manage and adjust the matrix switcher’s settings to suit your requirements.

Features

• Signal Extension Extent your HDMI signals up to 70m (229ft) over CAT5
• Audio Matrixing Analog audio embedded & extraction - the audio can be independently routed
• PoC Power over Cable enables devices to be powered and centralized via a single cable connection
• Multiview Mode Display 9 different sources on the same screen
• Video Wall Mode Supports up to a 3x3 video wall - supports cascading
• 4K UHD 4K@30Hz

• Loop out
• HDCP 2.2/1.4
• Seamless Matrix Mode: 9 in 9 out no switching delay and no signal loss
• Advanced EDID management
• Control via Panel button, Remote, RS232, TCP/IP Control
• Video wall cascading
• Micro-USB for firmware updates
• Balanced audio extraction
