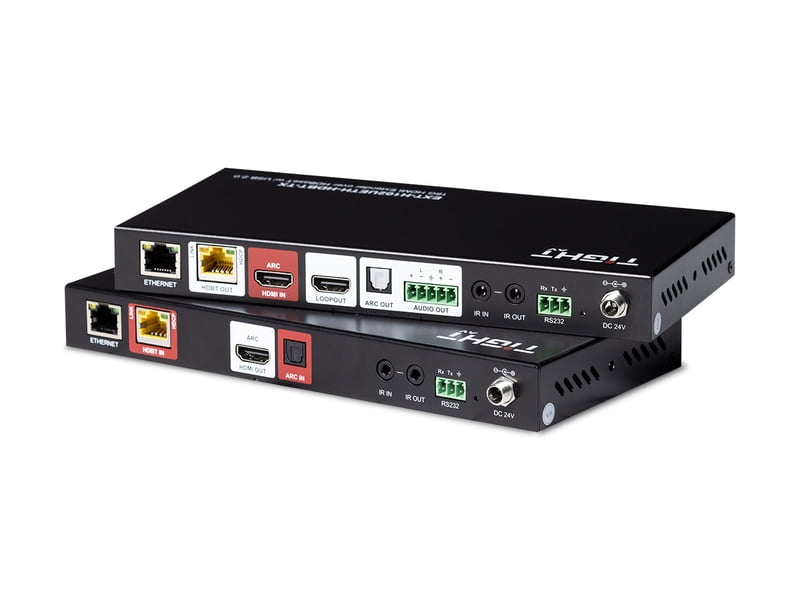

ransmitter

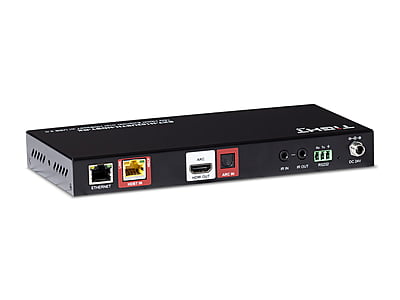

Receiver

Video

Input

(1) HDMI IN

(1) HDBT IN

Input Connector

(1) Type-A female HDMI 2.0b

(1) RJ45

Input Resolution

Up to 4K@60Hz 4:4:4

Up to 4K@60Hz 4:4:4

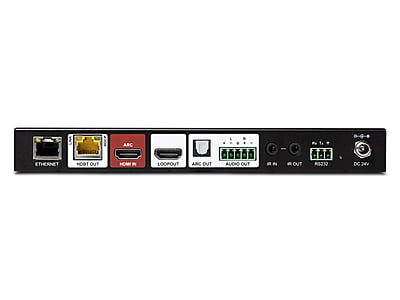

Output

(1) HDBT OUT, (1) HDMI LOOP OUT

(1) HDMI

Output Connector

(1) RJ45, (1) Type-A female HDMI

(1) Type-A female HDMI

Output Resolution

Up to 4K@60Hz 4:4:4

Up to 4K@60Hz 4:4:4

Audio

Input

-

(1) ARC IN

Input Connector

-

(1) Toslink Connector

Output

(1) ARC OUT, (1) AUDIO OUT

-

Output Connector

(1) Toslink connector

(1) 5-pin terminal block

-

Audio Format

Toslink (ARC): PCM, Dolby Digital, DTS 5.1CH

5-pin terminal block: PCM 2CH

Frequency Response

20Hz ~ 20KHz, ±3dB

Max Output Level

2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal

THD+N

< 0.05% (-80dB), 20Hz~20KHz bandwidth, 1kHz sine at 0dBFS level (or max level)

SNR

> 85dB, 20Hz-20kHz bandwidth

Crosstalk Isolation

> 70dB, 10kHz sine at 0dBFS level (or max level before clipping)

L-R Level Deviation

< 0.3dB, 1kHz sine at 0dBFS level (or max level before clipping)

Frequency Response Deviation

< ± 0.5dB, 20Hz – 20kHz

Output Load Capability

1KΩ and higher (Supports 10x paralleled 10KΩ loads)

Stereo Channel Separation

>70dB@1KHz

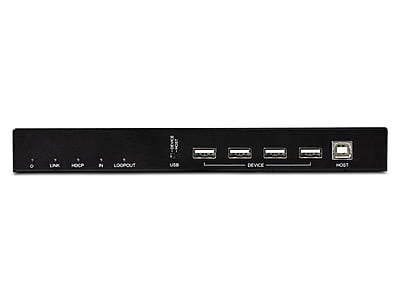

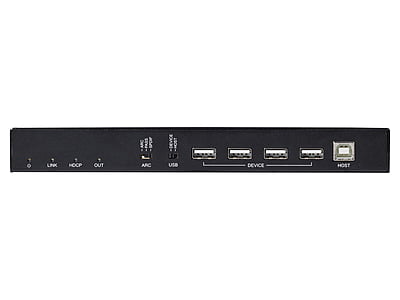

Control

Control Part

(4) DEVICE,

(1) HOST,

(1) USB Switch,

(1) IR IN,

(1) IR OUT,

(1) RS232,

(1) ETHERNET

(4) DEVICE,

(1) HOST,

(1) ARC Switch,

(1) USB Switch,

(1) IR IN,

(1) IR OUT,

(1) RS232,

(1) ETHERNET

Control Connector

(4) Type-A USB 2.0,

(1) Type-B USB 2.0,

(1) 2-pin DIP Switch,

(2) 3.5mm Jacks,

(1) 3-pin Terminal Block,

(1) RJ45

(4) Type-A USB 2.0,

(1) Type-B USB 2.0,

(1) 3-pin DIP Switch,

(1) 2-pin DIP Switch,

(2) 3.5mm Jacks,

(1) 3-pin Terminal Block,

(1) RJ45

General

HDCP Version

Input: HDCP 2.3, HDCP 2.2, HDCP 1.4 compliant

Loop out: Follows the display’s HDCP version.

RX Output: Follows the source’s HDCP version.

CEC

Pass-through (when ARC switch is selected to PASS or SPDIF)

Bi-directional PoC

Supported

HDMI 2.0 Cable Length

4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m, 1080P ≤ 20m

Transmission Distance

4K/1080p ≤ 100 meters (328 feet)

USB 2.0 Bandwidth over HDBaseT

Up to 272Mbps

Operation Temperature

-5 to +55℃(+23° to +131°F)

Storage Temperature

-25 to +70℃(-13° to +158°F)

Relative Humidity

10% to 90%, non-condensing

Power Supply

Input:100V~240V AC; Output:24V DC 1.25A

Power Consumption

17W(Max)

Dimension (W*H*D)

212mm x 25mm x 100mm

Net Weight

570g(TX), 555g(RX)
