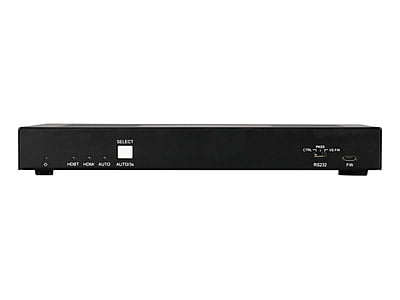

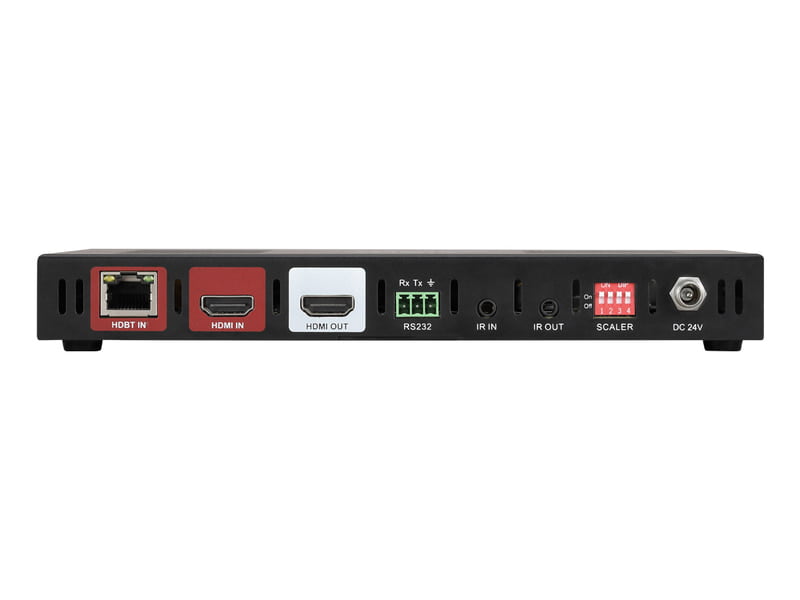

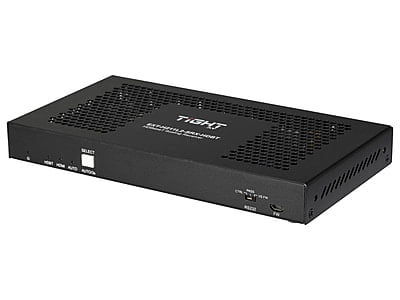

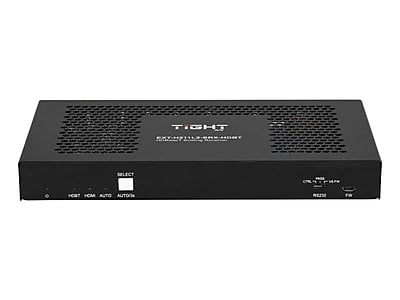

HDBT SCALING RECEIVER WITH LOCAL HDMI INPUT

The EXT-H211L2-SRX-HDBT from TiGHT AV offers an optimal solution for integrators seeking to distribute a video signal over extended distances in various installation applications while maintaining optimal picture quality. The HDBaseT receiver is equipped with advanced scaling technology supporting selectable scaled resolutions ranging from 1024x768 up to DCI 4K60 (4096x2160@60Hz 4:4:4).

The EXT-H211L2-SRX-HDBT supports automatic input selection feature facilitates seamless operation for users by automatically switching between the HDBaseT and the local HDMI inputs upon connection or disconnection of sources, thereby enabling effortless "connect and present" functionality. Additionally, the scaling receiver features EDID and HDCP management to ensure maximum functionality with a wide range of video sources and displays.

The EXT-H211L2-SRX-HDBT also supports RS232 and IR pass-through over HDBaseT and can be controlled via RS232 or from any compatible transmitter devices, such as the EXT-H101L2 TX-HDBT and the matrix switcher MSW-H614A-HDBT.

Furthermore, the device supports two-way PoC (Power over Cable), which means that it can draw power from a transmitter device or power compatible transmitters when connecting included external power supply.
