NGSME9AVB
Non-returnable
€1.394,00
Tags:
NGSME9AVB

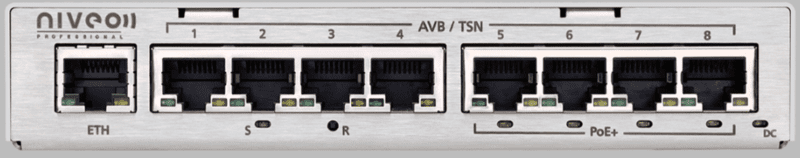

9-PORT AVB POE+ SWITCH
The EASY option for AVB
Niveo Professional introduces the brand new NGSME9AVB switch,
offering a ready -out of the box- AVB switch that also supports
Dante and PoE+. The switch requires no configuration or difficult
firmeware uploads, nor any payment or activation of AVB license
fees.
Just unbox, plug-in and relax.
The switch can be expanded to an 18-port design with a simple
expansion cable.
With a simple command, you can add or remove ports to the
Dante-VLAN or the AVB-VLAN.
The industrial design en specifications, make this the most
durable AVB-switch on the market.
9-PORT AVB POE+ SWITCH
The EASY option for AVB
Niveo Professional introduces the brand new NGSME9AVB switch,
offering a ready -out of the box- AVB switch that also supports
Dante and PoE+. The switch requires no configuration or difficult
firmeware uploads, nor any payment or activation of AVB license
fees.
Just unbox, plug-in and relax.
The switch can be expanded to an 18-port design with a simple
expansion cable.
With a simple command, you can add or remove ports to the
Dante-VLAN or the AVB-VLAN.
The industrial design en specifications, make this the most
durable AVB-switch on the market.
Product URL
http://www.idm-solutions.nl VAT
Not Included Choose Quantity
Product Details
Specifications
Our AVB switch is preconfigured for AVB, Dante and PoE + out of the box. No configuration or difficult firmware uploads are needed. Also no payment or activation AVB licence fees are required.
GENERAL ENVIRONMENT & DIMENSIONS
9 * Gigabit Ethernet Ports High-performance security offload engine including
IPSec, SSL, DTLS, and IKE
1- 8 ports for AVB/ 1-8 ports for Dante (user defined)
Hardware compliance with ARM Trustzone® architecture for DRM
1 x SFP 2500BASE-X rear connector for expanding to 16 ports AVB
FIPS-140 certified
4 x 802.3at PoE+ (up to 30W/port) Dimensions: 160mm (W) x 35mm (H) x 146mm (D)
PoE+ support up to 120W in total AVNU® MILAN® Bridge Certified (*Per1-11-2021)
High performance, non-blocking, Gigabit Ethernet 48VDC/54VDC power input operation (135W)
Support for up to 16K MAC addresses, 10KByte Jumbo Frames
RoHS compliant
Supports 802.1 Audio Video Bridging (AVB) Gen 2*
9 * Gigabit Ethernet Ports High-performance security offload engine including
IPSec, SSL, DTLS, and IKE
1- 8 ports for AVB/ 1-8 ports for Dante (user defined)
Hardware compliance with ARM Trustzone® architecture for DRM
1 x SFP 2500BASE-X rear connector for expanding to 16 ports AVB
FIPS-140 certified
4 x 802.3at PoE+ (up to 30W/port) Dimensions: 160mm (W) x 35mm (H) x 146mm (D)
PoE+ support up to 120W in total AVNU® MILAN® Bridge Certified (*Per1-11-2021)
High performance, non-blocking, Gigabit Ethernet 48VDC/54VDC power input operation (135W)
Support for up to 16K MAC addresses, 10KByte Jumbo Frames
RoHS compliant
Supports 802.1 Audio Video Bridging (AVB) Gen 2*
Operating temperature -40°C to +85°C
(industrial temperature range)
Time Sensitive Networking (TSN) Standards*, IEEE1588v2 one-step PTP
Storage temperature -40°C to +85°C, max.
gradient 5°C/min
Synchronous Ethernet* Humidity 5% ... 95% RH non condensing
Quality of Service (QoS) support with 8 traffic
classes
Altitude -300m ... +3000m
Supports 4096 802.1Q VLANs, three levels of
802.1Q security
Shock 15g 0.33ms, 6g 6ms
DDR4 2400 1GB, high-speed DRAM memory controller
Vibration 1g 5-2000Hz
e•MMC 5.1 Flash 16GB (up to 64GB) EC Regulatory EN55024, EN55032, EN62368-1 (CE)
SPI Flash 64Mb FCC (planned)
Protected against reverse polarity
(industrial temperature range)
Time Sensitive Networking (TSN) Standards*, IEEE1588v2 one-step PTP
Storage temperature -40°C to +85°C, max.
gradient 5°C/min
Synchronous Ethernet* Humidity 5% ... 95% RH non condensing
Quality of Service (QoS) support with 8 traffic
classes
Altitude -300m ... +3000m
Supports 4096 802.1Q VLANs, three levels of
802.1Q security
Shock 15g 0.33ms, 6g 6ms
DDR4 2400 1GB, high-speed DRAM memory controller
Vibration 1g 5-2000Hz
e•MMC 5.1 Flash 16GB (up to 64GB) EC Regulatory EN55024, EN55032, EN62368-1 (CE)
SPI Flash 64Mb FCC (planned)
Protected against reverse polarity
MTBF 68.6 years
ESD protecJon (TVS)
ESD protecJon (TVS)
Designed & manufactured in Germany
3-years warranty
3-years warranty
Switch Capabilities
- BrandNiveo
- Switch TypeManaged Switches
- AV Multicast PossibleYes
- Number of LAN Ports5-10
- Main Port Speed2.5G
- Number of Uplink Ports1
- Uplink Ports2.5G SFP
- PoE SupportYes
- Number of PoE Ports8
- PoE StandardPoE+ (802.3at)
- PoE BudgetMedium (100-199W)
- InstallationDesktop/Rackmount
- AVB CapableYes
- SDVOE CertifiedNo
- Direction of ConnectionsFront Facing
- Optimized for AVYes
- CertificationsDante
