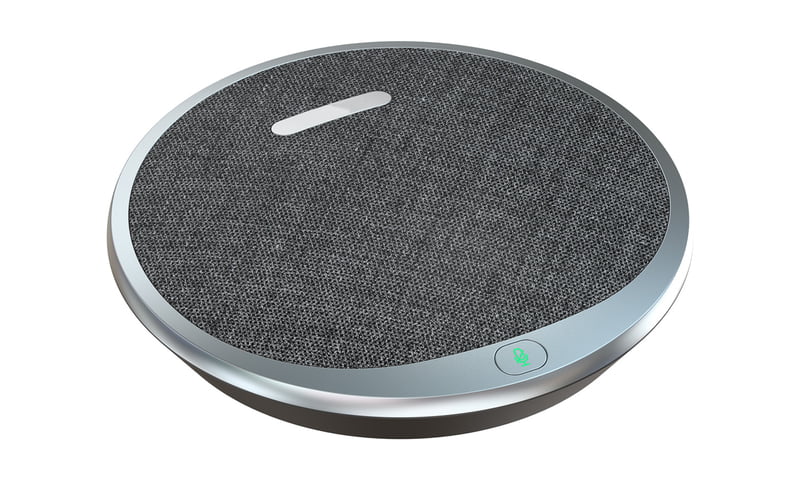

BG-CYCLOPS-EXT
ELECTRET MICROPHONE TECHNOLOGY
The microphones utilize Electret Microphone technology, providing a reliable and high-quality audio experience. The pickup range extends up to 10 feet (3 meters), capturing clear audio within its radius. The frequency response spans from 120 Hz to 16 kHz, ensuring a broad spectrum of sound is accurately reproduced.

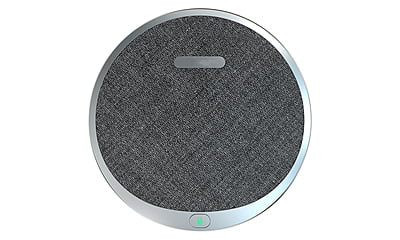

BUTTON LAYOUT
The expansion microphones include a mute button, enabling users to disable or enable the microphone function as needed. This mute functionality can be synchronized with the microphone disable function for convenient control. An indicator light system is in place, with the button light turning red when the microphones are disabled and green when they are enabled. The logo light turns to a solid green when the microphones are powered on.

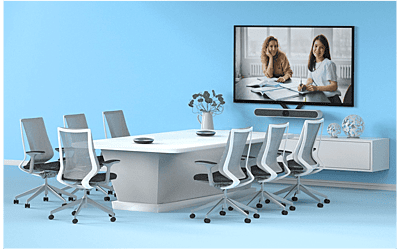

The BG-CYCLOPS Expansion Microphones seamlessly integrate advanced control features, elegant design, and dependable performance, elevating the audio capabilities of the BG-CYCLOPS. This enhancement offers users a versatile and professional audio solution. Featuring a 3-meter extension range and an intuitive interface, these units are perfect for individuals seeking to expand the audio pickup range of their BG-CYCLOPS video bar in large conference spaces and meeting rooms.
TECH SPECIFICATIONS
Control | Infrared Transparent Transmission | Control through the command from the transparent transmission |
Appearance | Dimension | 5.2in x 5.2in x 1.2in [132mm x 132mm x 31mm] |
Mics | Mic Type | Electret Microphone |
Pickup Range | 10ft (3m) pickup range | |
Frequency Response | 120 Hz-16 kHz Frequency Response | |
Connection | Output Jack | RJ45 port, connecting with support 10-meter transmission |
Cascading Jack | RJ45 port, allowing up to 8 units of expansion mics to connect | |
Buttons | Mute Button | Disable/enable the microphone function, which can be synchronized with the microphone disable function |
Indicator Light | Button Light | The light turns red when mics are disabled and turns green when mics are enabled |
Logo Light | Light turns to solid green when powered on |
