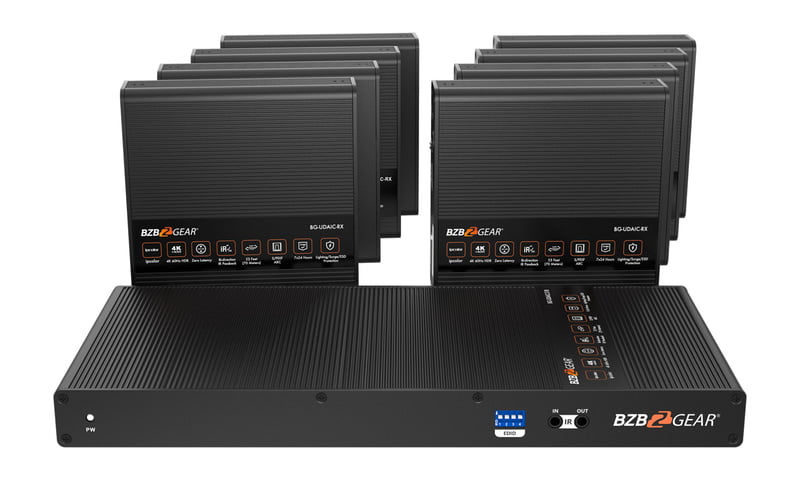

The BG-UDAIC-E18 by BZBGEAR is a high-performance extender/splitter kit that enables users to distribute one HDMI input to up to eight extender outputs and extend signals up to 70 meters (230 feet) with CAT 6/6A/7 network cables. This solution is ideal for transmitting audio and video signals from a source located at a remote distance, providing reliable and zero-latency connectivity without compromising on quality.

The BG-UDAIC-E18 supports resolutions up to 4K@60Hz, delivering stunning visuals with uncompromising clarity and precision. The extender/splitter kit offers zero-latency transmission, ensuring that audio and video sync perfectly without any noticeable delay. Using a wired connection for this purpose guarantees higher and more consistent image quality, making it ideal for professional applications where quality is paramount.

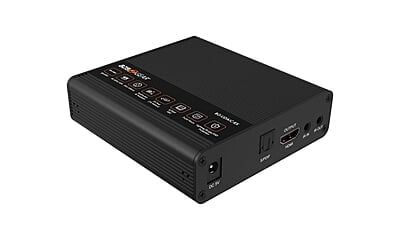

Moreover, the receivers can output digital audio from the display (ARC) or from the source device via the S/PDIF port. HDMI loop out is also available, allowing users to connect local displays or scale the system effortlessly and conveniently.

The extender/splitter kit offers bi-directional IR passthrough via IR blaster and IR receivers, enabling users to control equipment regardless of distances or obstacles. EDID passthrough and manual EDID setup with a dip-switches is available ensuring correct image resolutions. RS-232 passthrough is also supported, providing easy integration with automation and control systems.

Overall, the BG-UDAIC-E18 is a robust and reliable extender/splitter kit that delivers outstanding performance and flexibility for distributing high-quality HDMI signals over long distances. It is an ideal solution for a wide range of applications, including home entertainment, digital signage, hospitality, and education.

Features

• Crystal Clear Images Supports resolutions up to 4K@60Hz
• ARC Audio Return Channel support
• Control Bi-Directional IR Passthrough
• Long Range Transmit HDMI signals up to 70m
• HDCP 2.2 High-Bandwidth Digital Content Protection Supported
• Audio De-Embedding Digital audio provided via TOSLINK connector on receiver

• Zero latency transmission
• Split and extend 1 HDMI input signal to 8 HDMI outputs
• The transmitter supports HDMI loop out
• Supports EDID passthrough or manually set the EDID of the product
• Supports RS-232 command control
• Surge Protection, Lightning Protection, ESD Protection
