BG-AMPC40 - 2-Channel 40W 70/100V Stereo/Mono Audio Amplifier

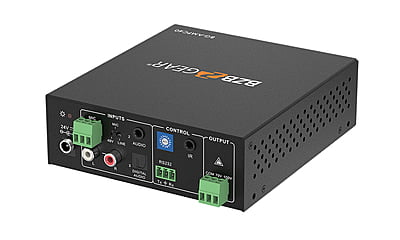

The BG-AMPC40 is a 40-Watt digital stereo amplifier (Class-D) with switchable output of 70V or 100V. Inputs include 2 stereo inputs (1x3.5mm port for line in, 2xRCA for L&R), 1 TOSLINK input, and 1 balanced MIC input. The 3-pin MIC input has selectable 48V phantom power, supports balanced or unbalanced signals, and features external noise suppression.

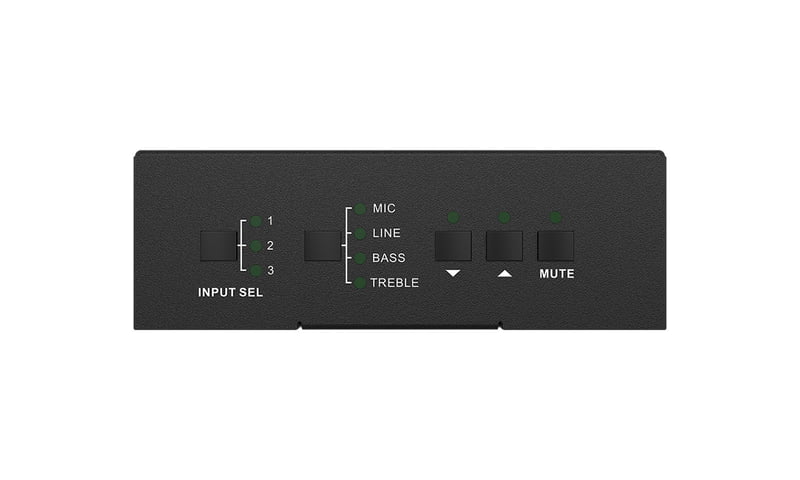

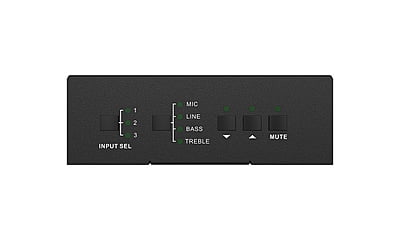

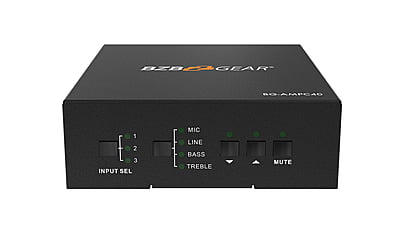

Integrated functions include ducking, EQ control, and MIC mixer. The rotary knob allows users to choose from 16 IR ID codes for easy control of multiple amplifiers. The front panel has controls for input selection, volume level for MIC and Line inputs, and bass/treble adjustment. This amplifier can be controlled with RS232 commands in addition to the front panel buttons and IR commands.

Features

• Microphone Input 3-level Mic input with mixer function
• Amplify Your Sound Outputs 40Watts at either 70V or 100V
• Compact Small form factor ideal where full-sized amplifiers will not fit
• Multiple Control Options Take control using RS232, IR, or push buttons
• Durable Metal enclosure designed to last for years
• Bass, Treble, & Volume Control bass, treble and volume levels conveniently using integrated push buttons

• Ducking function
• Fast switching speed for good performance
• 16 ID codes for controlling between different amplifiers
• Convection cooler, fan is not needed
• MIC port can support balance/unbalance signal, suppress the external noise effectively
• LED indicator, for power and working status
