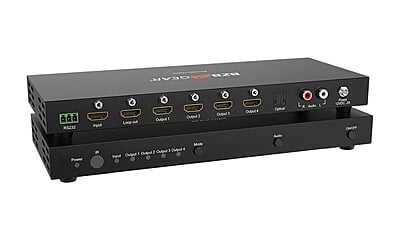

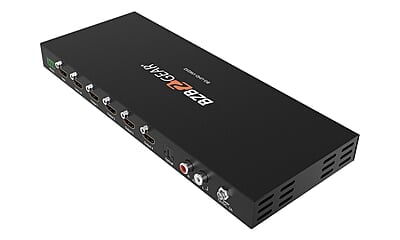

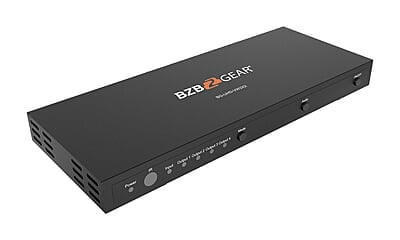

BG-UHD-VW2X2

Video walls shouldn’t be difficult to create. That’s why the BG-UHD-VW2X2 video wall processor requires almost no configuration. All users need to do is plug in their devices, select the layout, and adjust for bezel correction with three simple button presses. If needed, 180° output rotation is an option available for inverted displays to help with bezel obstructions.

These features combine to make this video wall processor a great industry-compliant device with no-fuss setup. With its ease of use, this video wall processor is a great and affordable choice for any application that would benefit from an eye-catching video wall display.

Connectivity

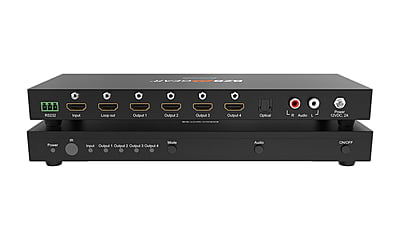

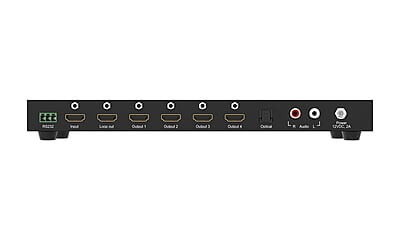

Simplicity is one of the BG-UHD-VW2X2’s greatest strengths. This video processor supports high resolution 4K@60Hz 4:4:4 input resolutions. The four HDMI outputs have a maximum resolution of 1080p@60Hz. This video processor is compliant with both HDCP 2.2 and HDMI 2.0. The device also supports loop out up to 4K@60Hz 4:4:4 for additional local display connectivity. For audio extraction, RCA and TOSLINK audio outputs are available.

Control

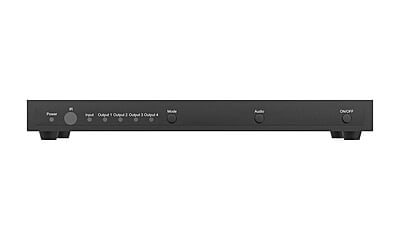

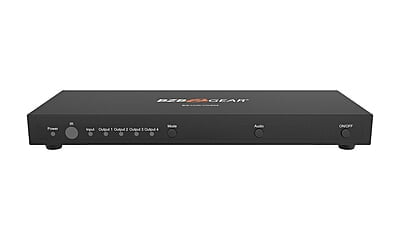

Operators have access to multiple control options for the BG-UHD-VW2X2, including an IR remote control, front panel buttons, and RS-232. On the IR remote, five preset bezel adjustments are available. Operators can also rotate the display 180° for inverted displays if needed. These configurations work for both commercial displays and for consumer-based TVs.

Features

• High Input Resolution Input Up To 4K@60Hz 4:4:4
• Video Wall Processor Spread a Source Across Multiple Displays
• HDMI Loop-Out Additional Local Display Connectivity
• Audio De-Embedding 1 x RCA, 1 x TOSLINK
• Alternate Layouts Choose From a Variety Of Video Wall Configurations
• Multiple Control Options Front panel, IR Remote, RS232

• Compatible with HDCP2.2
• Mirror mode available (2x2 only)
• Edge shielding functions

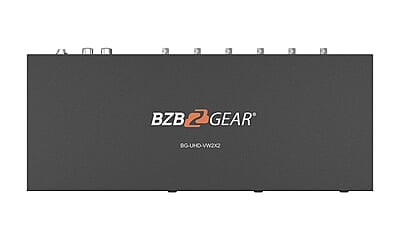

• Sturdy metal housing
• Plug and play unit
• Supports AUX and Spdif audio extraction
• 180° output rotation for installations with inverted displays
• Output up to 1080p@60Hz on each display
• Configure for 1x1, 2x2, 1x2 (H), 1x3 (H), 1x4 (H), 2x1 (V), 3x1 (V), 4x1 (V) layouts
