BG-EXH-70UCWP-W | 4K UHD 18Gbps HDBaseT HDMI/USB-C/RS-232 Wall Plate Transmitter & Receiver Kit up to 230ft
Overview

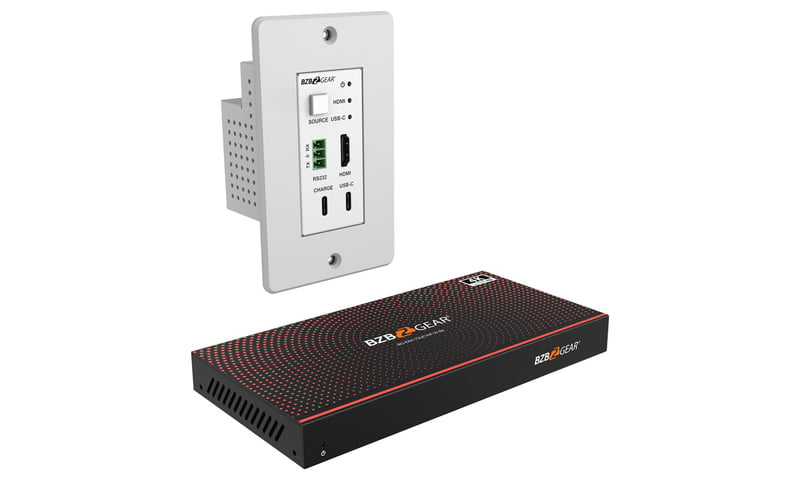

Introducing the BG-EXH-70UCWP-W 18Gbps HDBaseT 230ft Wall Plate Kit, a comprehensive solution for advanced signal transmission and distribution. This kit features a USB-C/HDMI Wall Plate Transmitter and an HDBaseT to HDMI Receiver, delivering exceptional performance and versatility for professional AV installations. Enclosed within a sleek US one-gang enclosure compatible with Decora-style wall plate openings, the transmitter functions as a 2x1 switcher and HDBaseT transmitter, supporting HDMI and USB-C inputs.
With support for video resolutions up to 4K2K@50/60Hz 4:4:4 and bidirectional RS-232 pass-through functionality, this kit ensures seamless integration and reliable control signal transmission. Furthermore, the transmitter can be remotely powered via Power Over Ethernet (POE) from the receiver or other HDBaseT-equipped devices, enhancing convenience and flexibility in installation.
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| DP Compliance | Display Port 1.2a (Adapter required for Display Port) |
| Video Bandwidth | USB-C: 5.4 Gbps HDMI: 18 Gbps |
| Video Resolution | 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bit (1080P@60Hz) 8-bit (4K@60Hz) |
| HDR | Support |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Transmission Distance | Max distance (1080P) : 230ft / 70m over CAT6/6a/7 Max distance (4K): 131ft / 40m over CAT6/6a/7 |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |

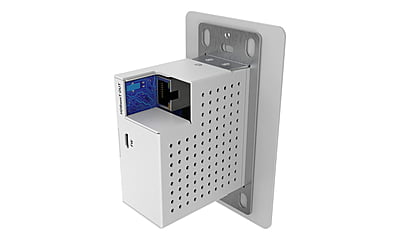

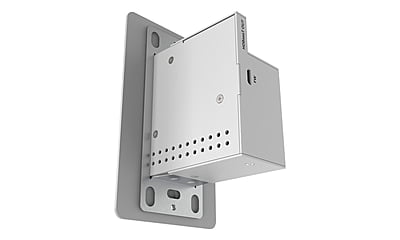

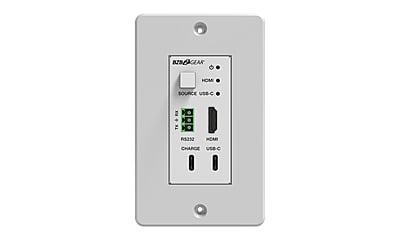

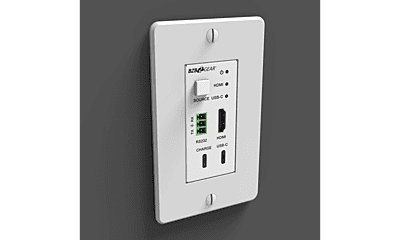

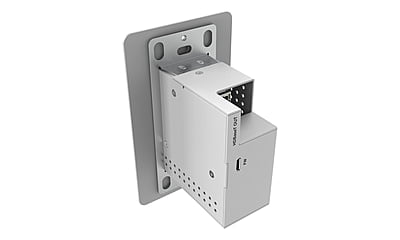

| Transmitter | Inputs: 1x HDMI Type A [19-pin female] 1x USB-C Outputs: 1x HDBaseT Out [RJ45, 8-pin female] 1x USB-C (only for charging) Controls: 1x RS-232 [3-pin phoenix connector] 1x FW [Micro USB, Update port] |

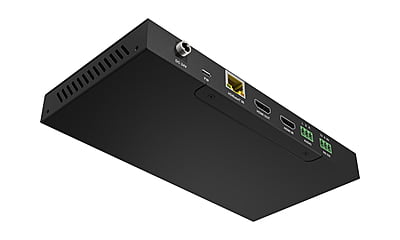

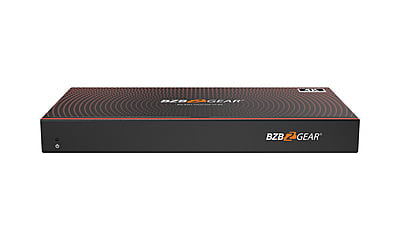

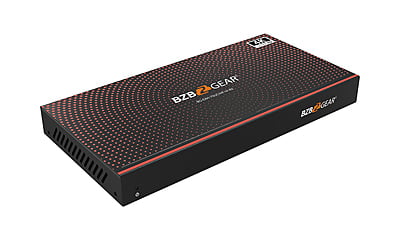

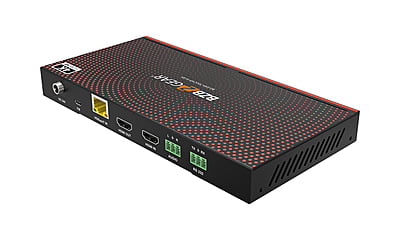

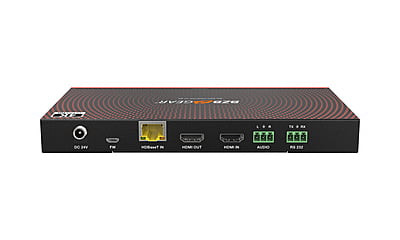

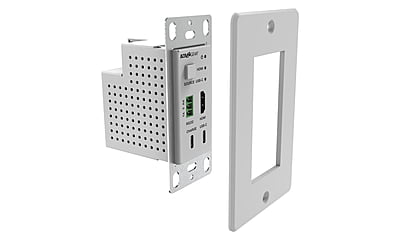

| Receiver | Inputs: 1x HDMI IN [Type A, 19-pin female] 1x HDBaseT IN [RJ45, 8-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [Phoenix jack] Controls: 1x RS-232 [3-pin phoenix connector] 1x FW [Micro USB, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | White |
| Dimensions (W x D x H) | Wall plate: 1.31in x 2.6in x 2.7in [33.3mm x 65.7mm x 68.7mm] Faceplate: 2.8in x 0.12in x 4.5in [69.9mm x 3mm x 114.3mm] Receiver: 7.9in x 4.0in x 0.87inin [200mm x 102.8mm x 22mm] |
| Weight | Wall plate: 0.43 lbs [197g], Receiver: 1.1 lbs [517g] |
| Power Supply | POE (only from Receiver to Transmitter) |
| Power Consumption | Wall plate: 7.92W (Max), Receiver: 6W (Max) |
| OperatingTemperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
