CS84D SMART AMP | 4 CHANNELS | 80 WATTS PER CHANNEL, Dante
CS84D
SMART AMP | 4 CHANNELS | 80 WATTS PER CHANNEL

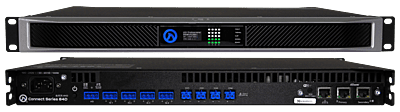

The CONNECTSERIES 84D is a 4-channel amplifier with 80 watts per channel. As part of the Dante CONNECTSERIES, the world’s first Internet of Things- (IoT) enabled professional-grade amplifiers, it is perfectly suited for small to medium-scale installations. The 84D features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built-in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.
Then there’s the Cloud…Dante CONNECTSERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications, and more from any of your personal devices. Just connect your amp to a network and start commanding your systems. Register for your free LEA Cloud account at leaprofessional.cloud
The Dante CONNECTSERIES also features analog inputs and Dante inputs and external I/O control for remote on/off and fault monitoring.
AUDIO SPECIFICATIONS | |
|---|---|
INPUTS | Analog: 4 Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity Dante: 8 x 8 Dante at 96kHz or 48kHz, Multicast or Unicast AES 67: Configurable via the Dante Controller Software |
THD+N | 0.1% (20Hz to 20kHz) |
FREQUENCY RESPONSE | 20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω |
SIGNAL TO NOISE LEVEL | 105dB (20Hz to 20kHz referenced to 8Ω) |
CROSSTALK | 70dB (20Hz to 20kHz) |
AMPLIFIER OUTPUT CLASSIFICATION | Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel |
DSP | |
|---|---|
DSP ARCHITECTURE | Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters |
INPUT MATRIX | Routable matrix; any input to any output with primary and secondary input priority |
CROSSOVERS | Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth) |
PARAMETRIC EQ | 8 Band Parametric EQ per channel |
OUTPUT DELAY | 100ms per channel |
OUTPUT PROTECTION | DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection |
USER ADJUSTABLE LIMITING | Peak Voltage and RMS Voltage |
LOAD MONITORING | Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources |
CONTROL, MONITORING, NETWORKING | |
|---|---|
USER INTERFACE | Web Browser User Interface, 3rd Party API control, or CLOUD control |

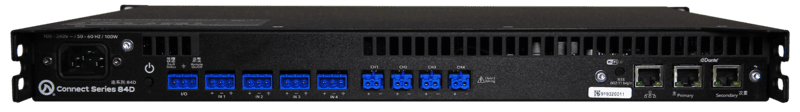

EXTERNAL I/O | External I/O In: Toggles Remote On/Off External I/O Out: Indicates Amplifier Health |
OPERATION | |
|---|---|
AC MAINS | 100VAC - 240VAC +/- 15% 50Hz or 60Hz |
POWER SUPPLY | Universal Switch Mode Power Supply |
PHYSICAL SPEC | |
|---|---|
DIMENSIONS (L X W X H) | Product: 14.25” x 19” x 1U (362mm x 482mm x 1U) x 1U (362mm x 482mm x 1U) Shipping: 20” x 22.75” x 3.75” (508mm x 578mm x 95.25mm) |
WEIGHT | 12.25lbs / 5.56kg | Shipping: 16.55lbs / 7.51kg |
COOLING | Front to Rear Variable Fan Speed Cooling Fan Noise at idle is 50dB @ 1m Fan Noise at 50% is 57dB @1m Fan Noise at full speed is 63dB @ 1m |
