BG-EXH-50UWP-W | 4K UHD 18Gbps HDMI/USB-C Wall Plate Transmitter & Receiver Kit up to 164ft
Overview

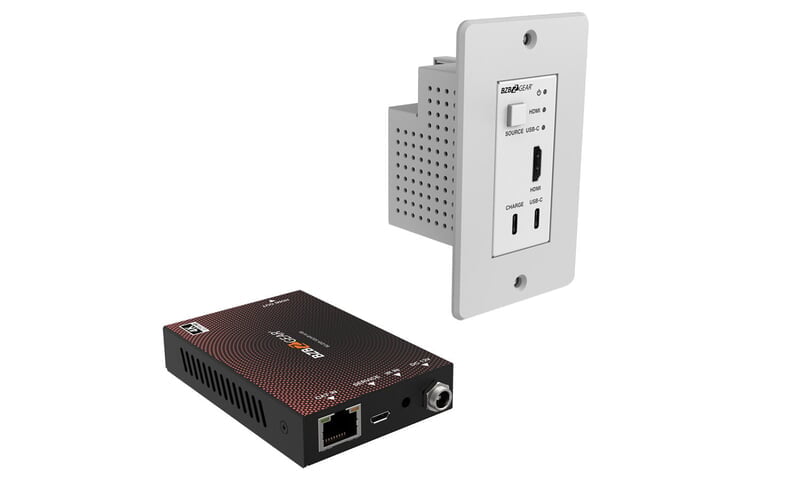

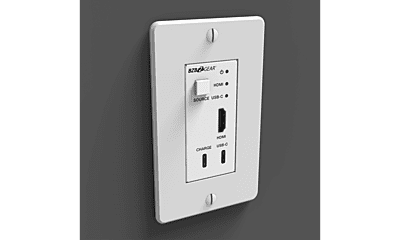

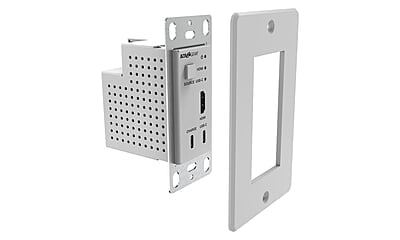

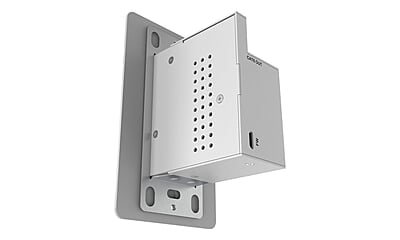

Introducing the BG-EXH-50UWP-W 18Gbps CAT 164ft Wall Plate Kit, a comprehensive solution for seamless signal transmission and distribution. This kit comprises a USB-C/HDMI Transmitter and a CAT6 to HDMI Receiver, designed to meet the demands of modern AV installations. Enclosed within a sleek one-gang Decora-style enclosure, the wall plate transmitter serves as a versatile 2x1 switcher and CAT transmitter, accommodating HDMI and USB-C inputs.
With support for resolutions up to 4K2K@50/60Hz 4:4:4 and a transmission distance of up to 164ft / 50m via CAT6 output, this kit ensures exceptional visual fidelity and flexibility. Additionally, the BG-EXH-50UWP-W kit supports various HDMI audio formats, HDR, and features a user-friendly interface with automatic/manual input signal selection. Its compatibility with Power Over Cable (POC) further enhances convenience, allowing remote powering from the receiver or other CAT-equipped devices.
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| DP Compliance | Display Port 1.2a (Adapter required for Display Port) |
| Video Bandwidth | USB-C: 5.4 Gbps HDMI: 18 Gbps |
| Video Resolution | 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bit (1080P@60Hz) 8-bit (4K@60Hz) |
| HDR | Support |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Transmission Distance | Max distance (4K@24) : 164ft / 50m over CAT5e/6 Max distance (4K@60) : 115ft / 35m over CAT5e/6 |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |

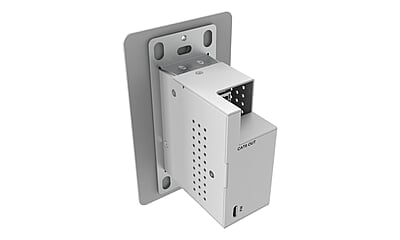

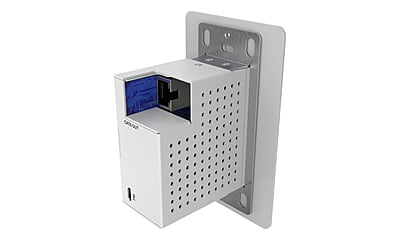

| Transmitter | Inputs: 1x HDMI Type A [19-pin female] 1x USB-C Outputs: 1x HDBaseT Out [RJ45, 8-pin female] 1x USB-C (only for charging) Control: 1x FW [Micro USB, Update port] |

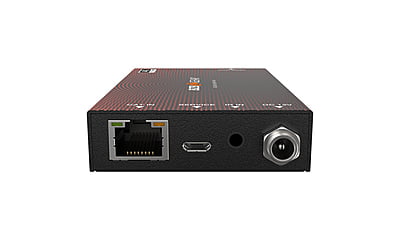

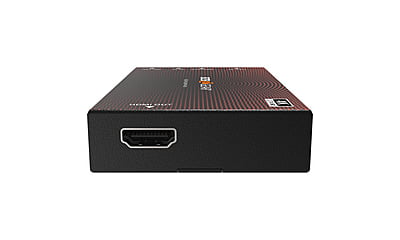

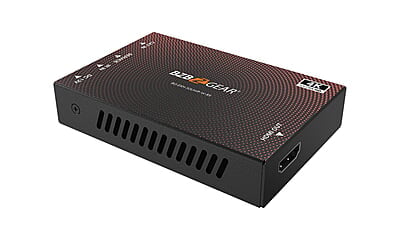

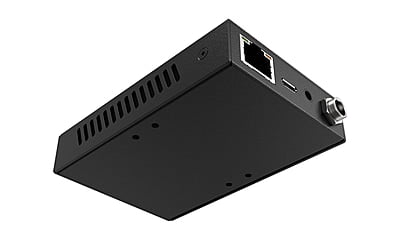

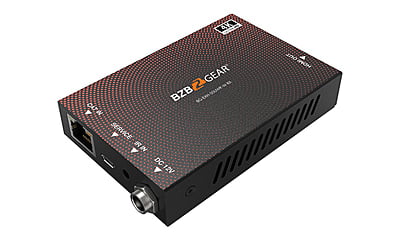

| Receiver | Input: 1x HDBaseT IN [RJ45, 8-pin female] Output: 1x HDMI OUT [Type A, 19-pin female] Controls: 1x IR IN [3.5mm Stereo Mini-jack] 1x SERVICE [Micro USB, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | White |
| Dimensions (W x D x H) | Wall plate: 1.31in x 2.6in x 2.7in [33.3mm x 65.7mm x 68.7mm] Faceplate: 2.8in x 0.12in x 4.5in [69.9mm x 3mm x 114.3mm] Receiver: 3.5in x 2.4in x 0.71in [88mm x 61mm x 18mm] |
| Weight | Wall plate: 0.43 lbs [195g], Receiver: 0.34 lbs [155g] |
| Power Supply | POE (only from Receiver to Transmitter) |
| Power Consumption | Wall plate: 3W (Max), Receiver: 3.72W (Max) |
| OperatingTemperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
