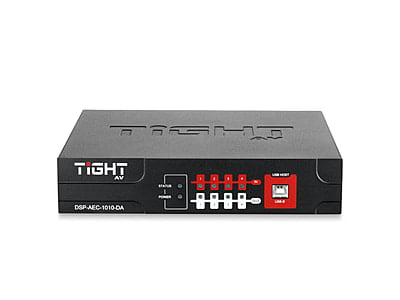

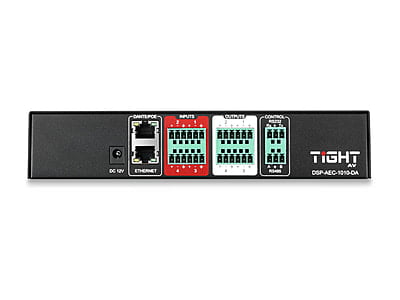

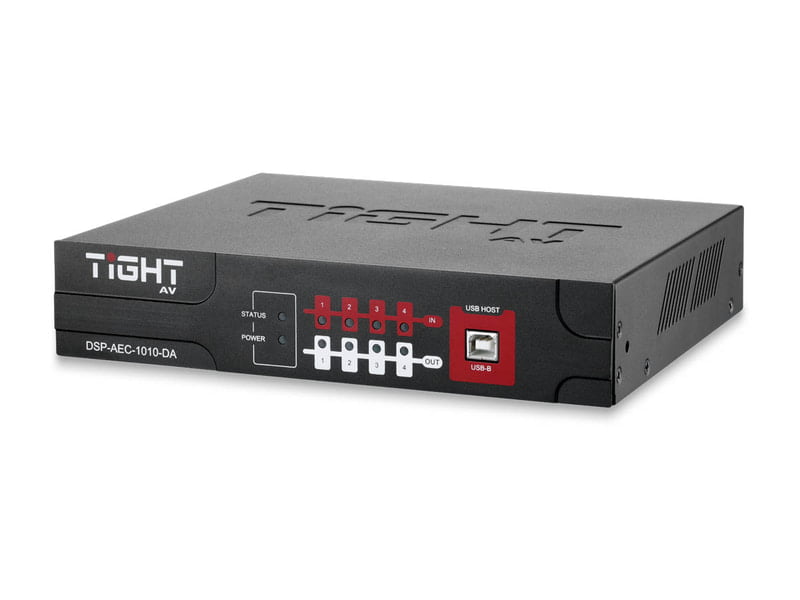

DSP-AEC-1010-DA
10X10 DSP DANTE
The DSP-AEC-1010-DA is an audio signal processing unit with analog and Dante interface, as well as a USB for computer audio.
The unit is configured and controlled from a Windows application that presents an easy to use GUI. Powerful processing with eq, dynamics, mixing and matrix combined with advanced acoustic echo cancellation (AEC) makes this unit suitable for a wide range of use cases.
A single network cable connected to a PoE network switch allows for both power, control and Dante audio. Analog audio inputs supports both microphone and line level sources. Phantom power is selectable individually for each channel.
USB connection to host computer works as a sound card for easy computer audio connectivity for both playback and recording.
Processor | ADI SHARC 21489 |
Sample rate/bit depth | 48kHz/24bit |
Input gain steps | 0/6/12/18/24/30/36/42/48dB |
Phantom Power | 48V |
Frequency Response (20Hz~20KHz) | ±0.5dB |
Maximum Level | +18dBu |
THD + Noise | 0.003%@4dBu |
Dynamic Range | 110dB |
Background Noise (A-weighted) | -91dB |
Common Mode Rejection Ratio @60Hz | 80dB |
Channel Isolation @1KHz | 108 dB |
Input Impedance (Balanced Connection) | 5.6kΩ |
Output Impedance (Balanced Connection) | 102Ω |
System Delay | <3ms |
Power Requirements | PoE or 12V |
Power Adapter | AC110~240V 5Hz-60Hz, 12V DC / 2A output |
Maximum Power Consumption | 10W |
Dimensions (Width x Depth x Height) | 215 x 162 x 44mm |
Shipping Weight | 2 kg |
