BG-EXH-70UWP-W | 4K UHD 18Gbps HDBaseT HDMI/USB-C/KVM Wall Plate Transmitter & Receiver Kit up to 230ft
Overview

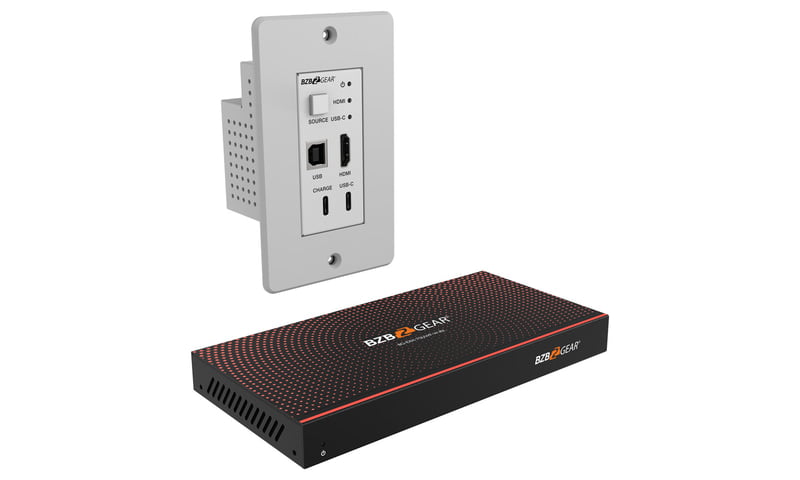

Introducing the BG-EXH-70UWP-W 18Gbps HDBaseT 230ft Wall Plate Kit, an advanced solution for high-definition signal distribution and transmission. Featuring a USB-C/HDMI & KVM Function Wall Plate Transmitter and an HDBaseT to HDMI Receiver, this kit delivers unparalleled performance and versatility for professional AV installations.

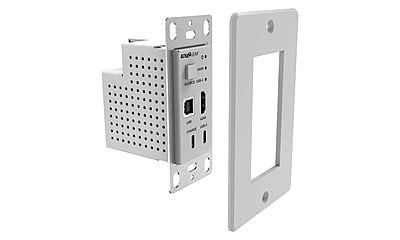

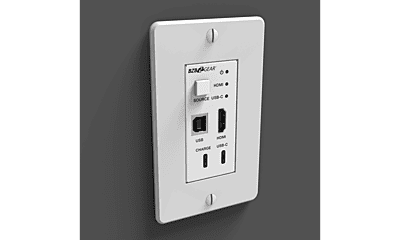

Encased in a sleek US one-gang enclosure tailored for Decora-style wall plate openings, the transmitter serves as a 2x1 switcher and HDBaseT transmitter, supporting HDMI and USB-C inputs for seamless integration with a wide range of AV devices. With support for resolutions up to 4K@60Hz 4:4:4, this kit ensures exceptional visual fidelity and clarity. Moreover, the transmitter can be conveniently powered via Power Over Ethernet (POE) from the receiver or other HDBaseT-equipped devices, enhancing flexibility and ease of installation.
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b, DisplayPort 1.2a (Adapter required for Display Port) |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bit |
| HDR | HDR10, HDR10+ |
| HDMI Audio Formats | Dolby Atmos,TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch |
| Transmission Distance | Max distance (1080p): 230ft / 70m over CAT6/6a/7 Max distance (4K): 131ft / 40m over CAT6/6a/7 |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |

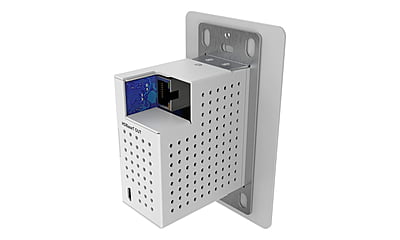

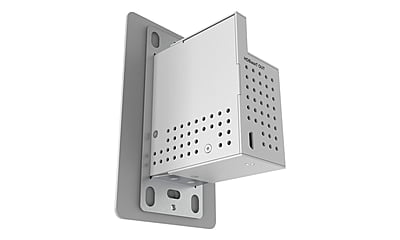

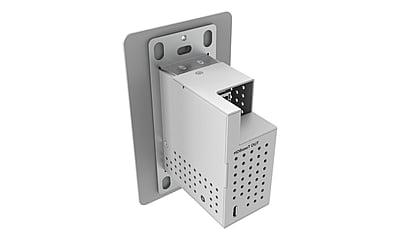

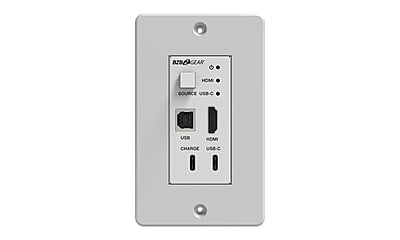

| Transmitter | Inputs: 1x HDMI Type A [19-pin female] 1x USB-C Outputs: 1x HDBaseT Out [RJ45, 8-pin female] 1x USB-C (only for charging) Control: 1x USB-B [Micro USB, Update port] |

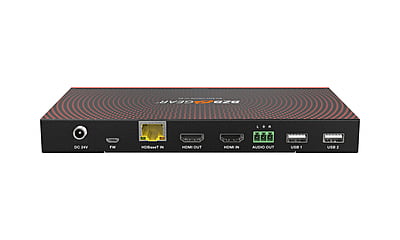

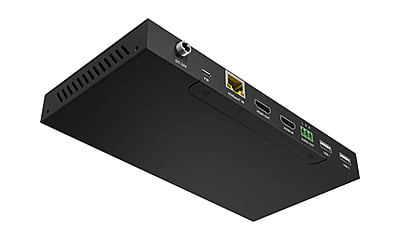

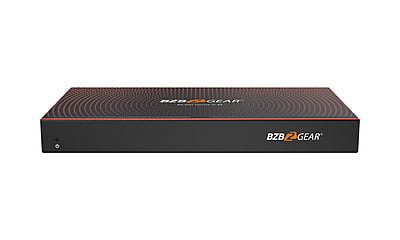

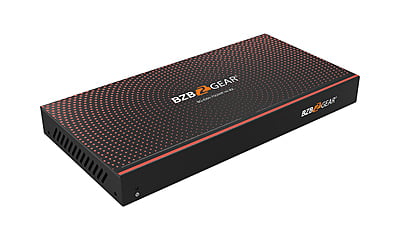

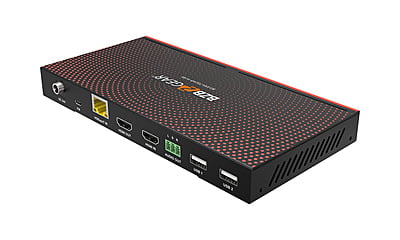

| Receiver | Inputs: 1x HDMI IN [Type A, 19-pin female] 1x HDBaseT IN [RJ45, 8-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [Phoenix jack] Controls: 2x USB [USB A TYPE] 1x FW [Micro USB, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | White |
| Dimensions (W x D x H) | Wall plate: 1.31in x 2.6in x 2.7in [33.3mm x 65.7mm x 68.7mm] Faceplate: 2.8in x 0.12in x 4.5in [69.9mm x 3mm x 114.3mm] Receiver: 7.9in x 3.9in x 0.91in [200mm x 98mm x 23mm] |
| Weight | Wall plate: 0.43 lbs [196g], Receiver: 1.1 lbs [511g] |
| Power Supply | POE (only from Receiver to Transmitter) |
| Power Consumption | Wall plate: 9W (Max), Receiver: 11W (Max) |
| OperatingTemperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
