BG-AVTPG-KIT

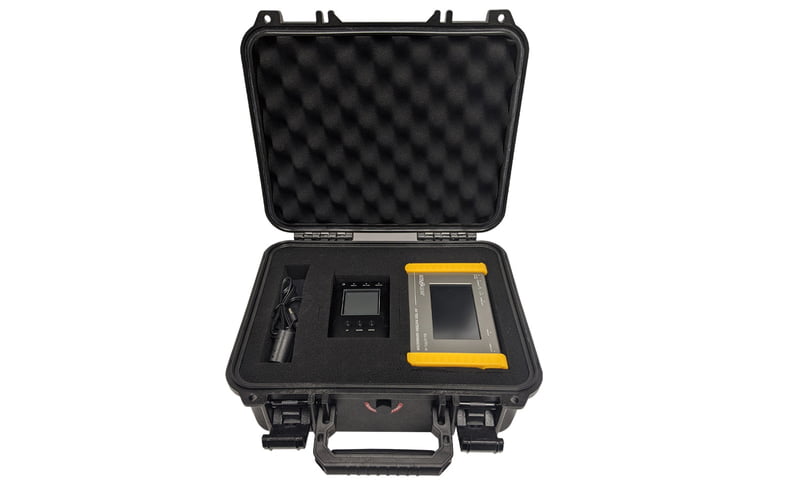

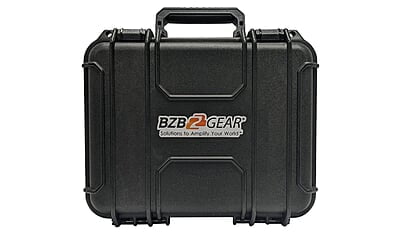

The BG-AVTPG-KIT combines 2 of our best selling HDMI tester/analyzers for a comprehensive toolkit that should be a part of every professional installer’s arsenal. The kit includes one BG-AVTPG-4K and one BG-AVTPG-MINI in a foam-lined protective case built to withstand years of job site abuse. The kit allows for full end-to-end testing of all HDMI-related cabling and gear, allowing installers to quickly identify and correct issues that would otherwise complicate and delay progress.

TAA COMPLIANT PRODUCT

This product meets the standards of the Trade Agreement Act (TAA).

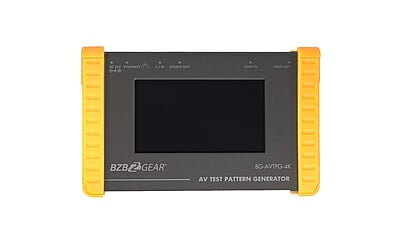

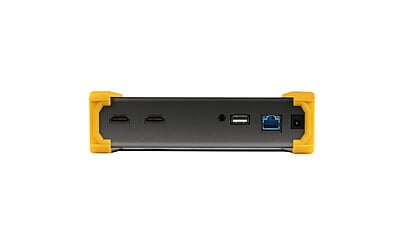

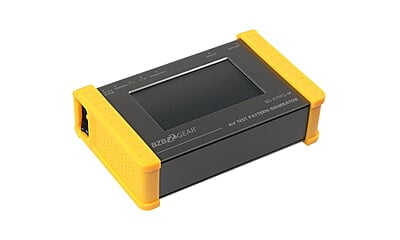

BG-AVTPG-4K
1080P FHD/4K UHD HDMI 2.0 18GBPS VIDEO TEST PATTERN GENERATOR/TESTER AND ANALYZER WITH ETHERNET

The BG-AVTPG-4K HDMI 2.0 Generator and Analyzer is a versatile and compact test set designed for A/V Professionals. The set allows the user to conduct verification and diagnostic tests of HDMI cables, A/V components and video distribution networks with confidence. Its protective rubberized edges and rechargeable battery make it well-suited for on-site testing virtually anywhere. With the advanced touch panel and USB connection mouse control you can easily access options for video patterns, audio signals, HDCP analyzer, and loop signal testing. The unit supports 8 channel LPCM with selectable sampling rate making it perfect for testing multi-channel audio systems. The BG-AVTPG-4K is a must-have for all AV System Integrators and Technicians.

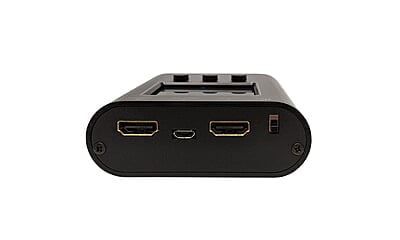

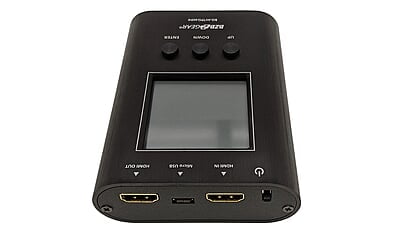

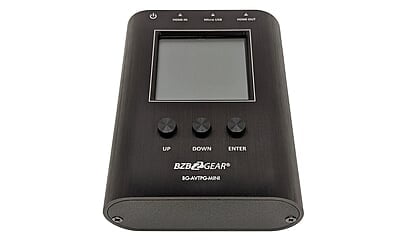

BG-AVTPG-MINI

1080P FHD/4K UHD HDMI 2.0 18GBPS PORTABLE SIGNAL TEST GENERATOR AND ANALYZER

The BG-AVTPG-MINI HDMI 2.0a tester/analyzer is a mobile, hand-held device which can help installers test cable quality by generating HDMI signals and detecting important HDMI features quickly. With this handy and portable tool users will appreciate the built-in 3 hour chargeable battery, video patterns and other features. It features adjustable color depth so installers can instantly test the connected display’s capability. Getting important pieces of information makes troubleshooting a breeze and helps installers take the guess work out of HDMI compatibility issues. With the device’s response time, you will have the answer to a potential problem in less than a minute! The BG-AVTPG-MINI, with its cost and features, is the ideal testing unit for custom and commercial integrators to have on every call!

BG-AVTPG-MINI:

• Supports video resolution* outputs up to 4K2K@60 4:4:4 8bit, HDR 10bits**, 12bits, 16bits
• Fundamental HDMI feature analysis up to 4K2K@60 4:4:4 8bit HDMI 2.0 input
• Provides statistics analysis for cable quality or connection stability
• Rechargeable battery design with short charging time about 3 hours
• Built-in 3 video patterns***
• HDCP 1.4 & 2.2 compliant
• Hand-held pocket size
• Both HDMI input and output support up to HDMI 2.0
• Tests cable quality
• Battery powered for portability, it can extend operation time with full load up to 3 hours
