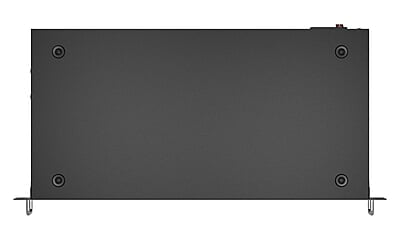

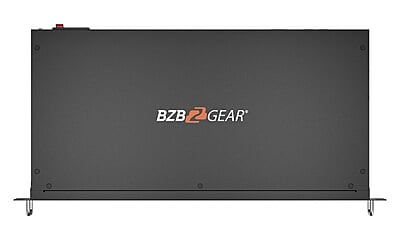

BG-UHD-VW29

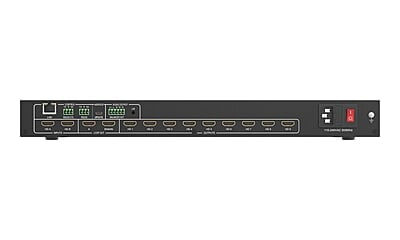

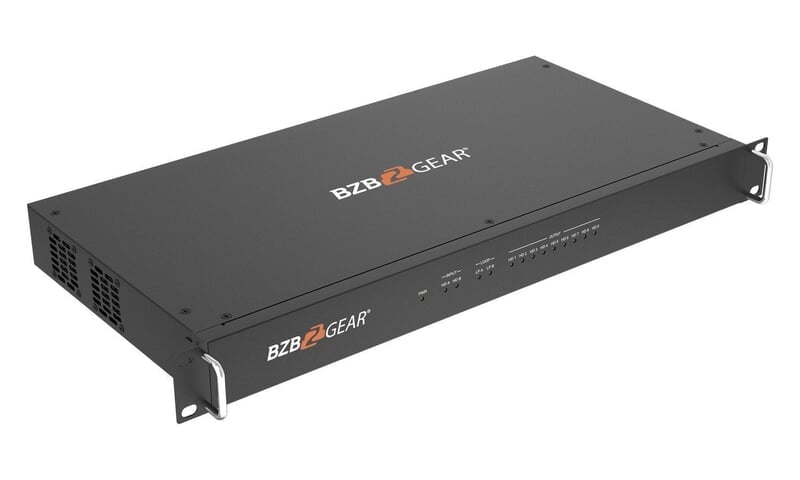

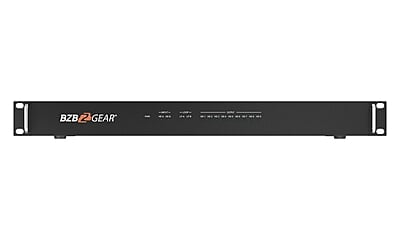

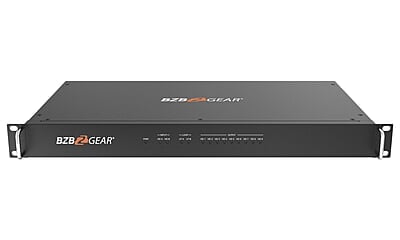

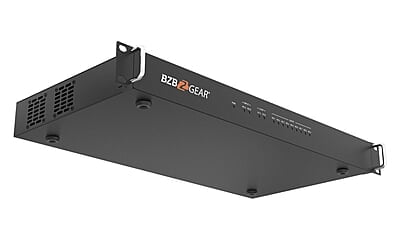

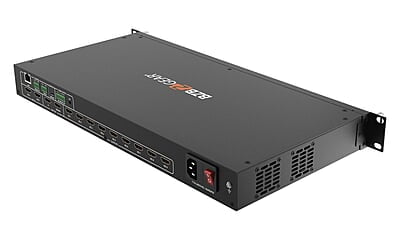

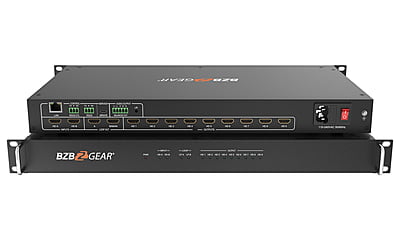

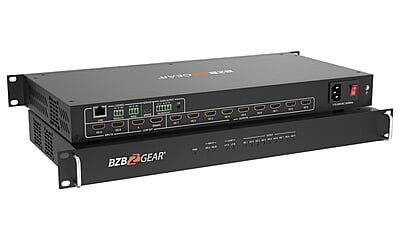

Introducing the BG-UHD-VW29 HDMI 2.0 video wall controller from BZBGEAR, an innovative solution for all your video wall processing needs. This powerful controller features 2 HDMI inputs and 2 HDMI loop outs, as well as 9 HDMI scaling outputs, providing seamless and efficient video processing.

With support for resolutions up to 3840x2160@60Hz, this HDMI 2.0 device ensures stunning video quality and optimal viewing experience. The BG-UHD-VW29 also supports HDCP 2.2, ensuring that it is fully compatible with the latest content protection standards.

One of the unique features of the BG-UHD-VW29 is its ability to compensate for bezels in two modes, allowing for optimal display of content across multiple displays. Ability to control resolutions of the output displays and configure the brightness, contrast, saturation, and sharpness of each output further enhancing the viewing experience. Additionally, the controller provides the flexibility of 180° display rotation.

The BG-UHD-VW29 is controllable via PC software, webGUI, and RS232, giving users the freedom to choose the most convenient control option. The device also includes a de-embedding audio feature, which allows audio to be sent to an Analog L/R audio output via 3.5mm Stereo Jack or a balanced audio output port using a 5-pin phoenix connector.

Overall, the BG-UHD-VW29 video wall controller from BZBGEAR is an excellent choice for anyone looking for a reliable, efficient, and versatile video processing solution. Whether you're in the digital signage business or require video wall controller to improve your entertainment systems, the BG-UHD-VW29 is the perfect choice.

Features

• High Resolution Inputs Supports Resolutions Up To 4K@60Hz
• Third Party Control Options Include TCP/IP, RS-232, HDMI CEC, and PC Software
• HDCP 2.2 High-Bandwidth Digital Content Protection Supported
• Multiple Inputs Supports up to two HDMI inputs
• Audio Extraction 3.5mm and Balanced Analog Audio Outputs
• Versatile 180° Rotation and Dual-Mode Bezel Compensation

• Dual HDMI loop outs
• Sturdy, metal case construction
• Supports CEC control through PC Tool or line commands
• Easily upgradable firmware
• 2.0 channel, 5.1 channel, LPCM, Dolby, AC3, and DTS audio
• Video wall resolutions up to 3840x2160@60Hz
• Baud rate: 57600, data bit: 8, Stop bit: 1, no parity
• Loop out the HDMI A/B signal for devices connected to each output
