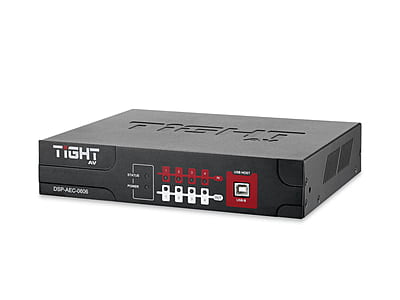

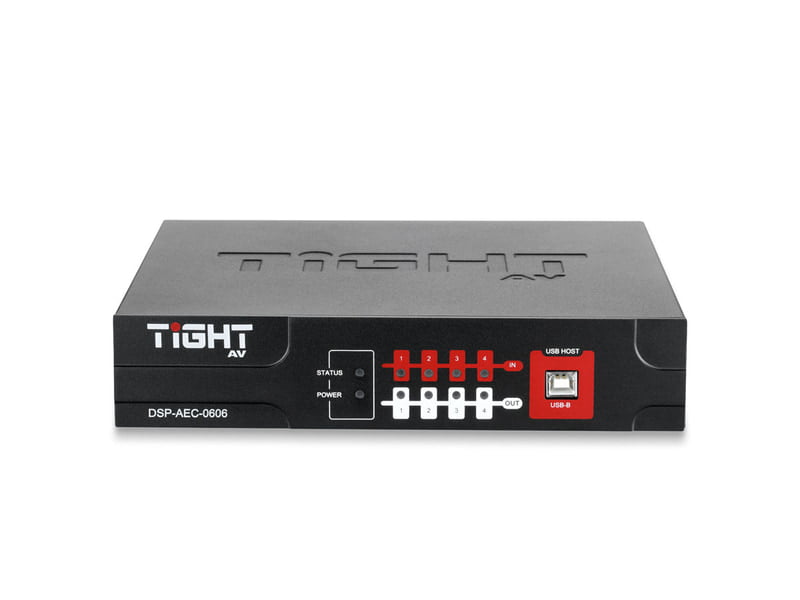

DSP-AEC-0606
6X6 DSP
Small-format, cost-efficient DSP for smaller installations.
Need a small-format, cost-efficient, no-nonsense DSP for those lighter installations? Our DSP-AEC-0606 should have you covered! Featuring 4x4 channels of balanced audio, plus a 2x2 USB interface for computer recording and playback, the 0606 should be a perfect fit for the job.
For those of you familiar with our DSP-AEC-1010-DA, the 0606 is basically the same model but without the 4x4 Dante connectivity. This leaves the 0606 with the following features:
- 4 x balanced analog in and out, with integrated mic pre and +48V
- 2x2 USB (with processing) for recording and playback
- RS232 and RS485 control ports
- Dual Ethernet with PoE capability
As the name suggests, the DSP-AEC-0606 is equipped with advanced acoustic echo cancellation, making it ideal as a centerpiece in web conference installations to eliminate unwanted feedback. Other DSP facilities include EQ, dynamics, mixer, and matrix, all easily configured and controlled from an intuitive GUI. As an option, programmable control panels (sold separately) offer the end user hands-on control to parameters set by the integrator.
Type | ADI SHARC 21489 |
DSP Handling Capacity | 400 MIPS, 1,6 GFLOPS |
Input | |
Inputs | (4) Analog Mic/line Audio |

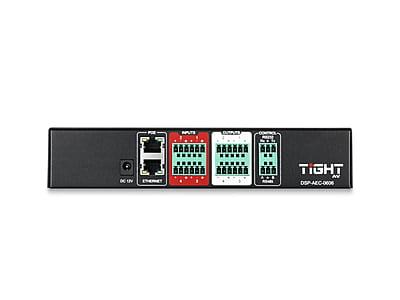

Input Connector | (2) 6-pin Green Terminal Blocks |
Phantom Power | 48V (Max 10mA), selectable per input |
Output | |
Outputs | (4) Analog Line Audio |
Output Connector | (2) 6-pin Green Terminal Blocks |
Interface | |
Ethernet | LAN/Dante, 10/100/1000 Base-T Ethernet |
Ethernet Connector | (2) RJ45 |
PoE | 802.3af |
USB | (1) USB 2.0, Type B |
Serial | (1) RS-232, (1) RS-485 |
Serial Connector | (2) 3-pin Green Terminal Blocks |
| |
Input Gain | 0 - 48dB in 6dB steps |
Frequency Response | ±0.5dB (20Hz~20KHz) |
Maximum Level | +18dBu |
THD + Noise | 0.003%@4dBu |
Input Dynamic Range | 110dB |
Output Dynamic Range | 112dB |
Background Noise (A-weighted) | -91dBb |
Common Mode Rejection Ratio @60Hz | 80dB |
Channel Isolation @1KHz | 108 dB |
Input Impedance (Balanced) | 5.6kΩ |
Output Impedance (Balanced) | 102Ω |
System Latency | <3ms |
Sample Rate | 48 kHz |
Bit Depth | 24 Bit |
General | |
Power requirements | PoE 802.3af or 12VDC |
Power adapter | AC110~240V 5Hz-60Hz, 12VDC / 2A output |
Maximum Power Consumption | 10W |
Rack Space | Half Rack |
Dimensions with terminal blocks (W x D x H) | 215mm x 192mm x 44mm |
Shipping Weight | 2kg |
Operating Temperature | 0 ~ +40℃ |
Storage Temperature | -25 ~ +70℃ |
Relative Humility | 10% - 90% |
Compliance | |
Compliance | FCC, CE |
Environmental Compliance | RoHS, REACH, WEEE |
