EDU-H201AUC-KIT
HDBT CLASSROOM KIT

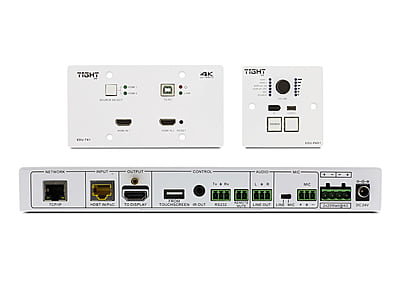

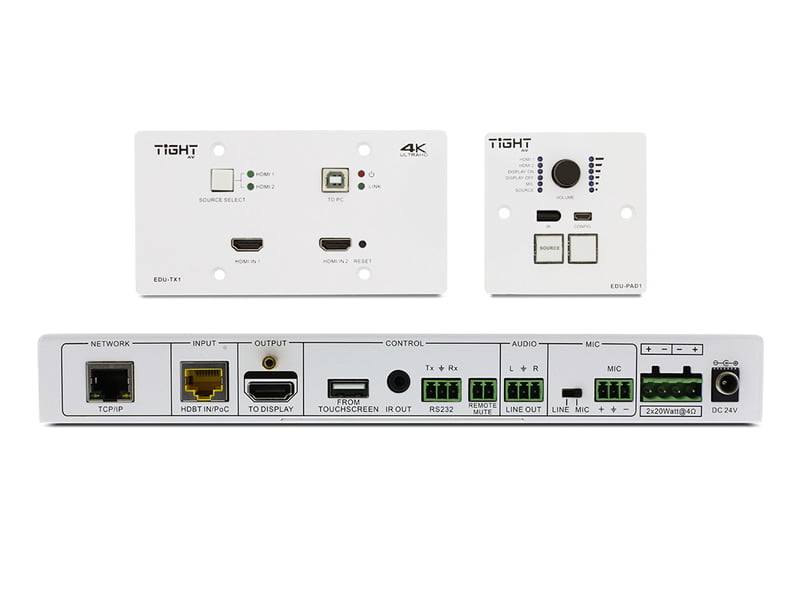

The The HDBase-T Classroom Kit is a multi-function AV system designed to provide HDMI video switching, system control, video extension and analog audio amplification, all in one convenient kit for classrooms and meeting spaces. The system consists of an HDBaseT transmitter wall plate with two HDMI inputs, a receiver with built in audio amplification and a simple wall plate control panel.
Audio and 4K video is transported over a single solid core CAT cable between the wall plate transmitter and the receiver. The wall plate control panel provides the customer with an easy to use control interface without use of programming. All power needed for the system is provided by the receiver.
Additionally, the receiver features a built-in web GUI for control. The WEB GUI also supports user and administrator privileges. A user login only provides the control page that can be reached from any device with a web browser
KEY FEATURES:
• Two HDMI inputs can be switched freely.
• HDMI video resolution up to 4K@60Hz 4:2:0.
• Extends 4K@60Hz 4:2:0 signal up to 40m and 1080p@60Hz signal up to 70m via a single CATx cable.
• USB extension for interactive whiteboard connection.
• HDCP 2.2.
• Analog MIC/Line input.
• 2 x 20 Watt@4Ohm amplifier output.
• Customizable control panel, supports IR learning.
• Copy and load IR and RS232 control settings.
• WEB GUI control.

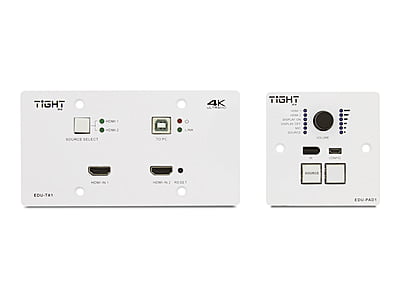

EDU-TX1 Transmitter
Video | |
Video Input | (1) HDMI IN 1, (1) HDMI IN 2 |
Video Input Connector | (2) 19-pin type-A female HDMI |
Video Output | (1) PoC IN/HDBT OUT, (1) POWER/RS232 |
Video Output Connector | (2) RJ45 |
Control | |
Control Port | (1) TO PC, (1) FIRMWARE |
Control Connector | (1) Type-B USB, (1) Micro USB |
General | |
Video Resolution | Up to 4K@60Hz 4:2:0 |
Transmission Mode | HDBaseT |
Transmission Distance | CAT5e/6: 4K@60Hz 4:2:0 ≤ 35 meters (115 feet), 1080p@60Hz ≤ 60 meters (197 feet) |
CAT6a/7: 4K@60Hz 4:2:0 ≤ 40 meters (131 feet), 1080p@60Hz ≤ 70 meters (230 feet) | |
Bandwidth | 10.2Gbps |
HDMI Version | 1.4 |
HDCP Version | 2.2 |
Operation Temperature | -5~ +55℃ |
Storage Temperature | -25 ~ +70℃ |
Relative Humidity | 10%-90% |
Dimension (W*H*D) | 105mm x 89mm x 44mm |
Net Weight | 242g |

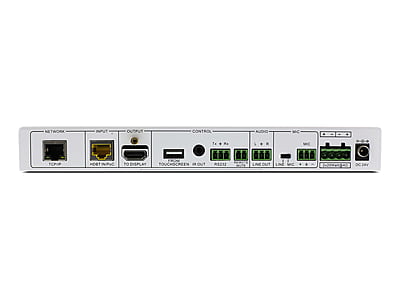

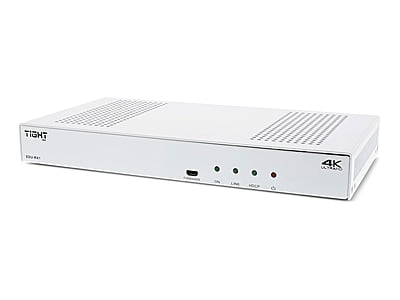

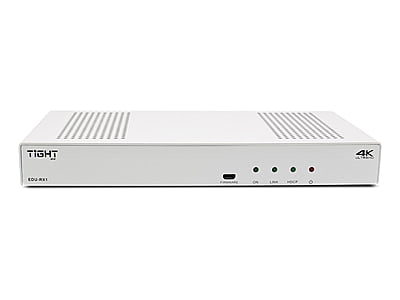

EDU-RX1 Receiver
Video | ||
Video Input | (1) HDBT IN/PoC | |
Video Input Connector | (1) RJ45 | |
Video Output | (1) TO DISPLAY | |
Video Output Connector | (1) 19-pin type-A female HDMI | |
Audio | ||
Audio Input | (1) MIC | |
Audio Input Connector | (1) 3-pin terminal block | |
Audio Output | (1) 2x20Watt@4Ω, (1) LINE OUT | |
Audio Output Connector | (1) 4-pin terminal block, (1) 3-pin terminal block | |
Audio Format | HDMI embedded audio: PCM/Dolby/DTS MIC input audio: PCM Analog output audio: PCM | |
Control | ||
Control | (1) TCP/IP, (1) FROM TOUCHSCREEN, (1) IR OUT, (1) RS232, (1) REMOTE MUTE | |
Control Connector | (1) RJ45, (1) Type-A USB, (1) 3.5mm mini jack, (1) 3-pin terminal block, (1) 2-pin terminal block | |
General | ||
Video Resolution | Up to 4K@60Hz 4:2:0 | |
Transmission Mode | HDBaseT | |
Transmission Distance | CAT5e/6: | 4K@60Hz 4:2:0 ≤ 35 meters (115 feet), 1080p@60Hz ≤ 60 meters (197 feet) |
CAT6a/7: | 4K@60Hz 4:2:0 ≤ 40 meters (131 feet), 1080p@60Hz ≤ 70 meters (230 feet) | |
Bandwidth | 10.2Gbps | |
HDMI Version | 1.4 | |
Power Supply | Input:100V~240V AC; Output: 24V DC 2.71A | |
Power Consumption | 55W (Max) | |
Operation Temperature | -5~ +55℃ | |
Storage Temperature | -25 ~ +70℃ | |
Relative Humidity | 10%-90% | |
Dimension (W*H*D) | 250mm x 31mm x 130mm | |
Net Weight | 682g |
EDU-PAD1 Control Panel
Port | |
Program Port | (1) CONFIG, (1) POWER/RS232 |
Output Port | (1) Type-A USB, (1) RJ45 |
Other | (1) Volume Knob, (2) Buttons (SOURCE, DISPLAY ON/OFF), (1) Built-in IR sensor |
Operation Temperature | -5~ +55℃ |
Storage Temperature | -25 ~ +70℃ |
Relative Humidity | 10%-90% |
Dimension (W*H*D) | 80mm x 80mm x 37mm |
Net Weight | 124g |
