BG-ADAMO-4KDA12X-W
Non-returnable
€2.849,00
Tags:
BG-ADAMO-4KDA
The BG-ADAMO-4KDA is loaded with features including the latest Dante AV-H technology by Audinate, a full interface of video connections, and immaculate 4K@60Hz resolution. The integration with Dante AV-H technology enables the BG-ADAMO-4KDA to distribute the stream to multiple devices on the network using nothing more than a simple Ethernet connection. The 12G-SDI connection enables long distance cable runs without compromising image quality. Compose shots ahead of time utilizing the up to 255 programmable presets, with 10 conveniently accessible using the IR remote. Capable of storing 1 TB of video footage with the Micro SD Card writer, start recording on the fly when other connections are inaccessible.
VAT
Not Included Choose Quantity
Product Details
Specifications
TECH SPECIFICATIONS
| Parameters | ||
| Optical Zoom | 12X | 25X |
| Focal Length Range | f=3.85 mm ~ 43.06 mm ±5% | f=6.91 mm ~ 214.64 mm ±5% |
| View Angle | H: 7.59°(tele) ~ 80.4°(wide) V: 4.6°(tele) ~ 50.0°(wide) | H: 1.98°(tele) ~ 59°(wide) V: 1.12°(tele) ~ 34.14°(wide) |
| AV | F1.8 ~ F3.56±5% | F1.35 ~ F4.6±5% |
| Sensor | 1/2.5 inch SONY CMOS sensor | 1/1.8 inch SONY CMOS sensor |
| Effective Pixels | 8.51 Megapixels 16:9 | |
| Video Format | HDMI: 3840*2160p@60/50/30/25/59.94/29.97Hz/24Hz/23.98Hz; 1080p@60/50/30/25/59.94/29.97Hz/24Hz/23.98Hz; 1080i@60/50,30/59.94Hz; 720p@60/50/59.94Hz; 12G-SDI: 3840*2160p@60/50/30/25/59.94/29.97Hz/24hz/23.98Hz; 1080p@60/50/30/25/59.94/29.97Hz/24Hz/23.98Hz; 1080i@60/50/59.94Hz; 720p@60/50/59.94Hz; USB2.0: MJPG: 3840*2160 /1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240p@30Hz; H264: 3840*2160 /1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240p@30Hz; YUY2: 800*448 /720*480p@25; 640*360 /432*240p@30Hz NV12: 800*448p@25; 640*480 /640*360 /432*240p@30Hz USB3.0: YUY2: 1920*1080 /1280*720p@60/50/30/25Hz; 960*540 /800*600p@30Hz; 720*576p@50Hz; 720*480p@60Hz; 640*480p@30Hz; | |
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) | |
| DNR | 3D DNR | |
| White Balance | Auto / Manual / One Push / Specified Color Temperature | |
| Focus | Auto / Manual / One Key Focus | |
| Exposure Mode | Auto, Manual / Shutter Priority / Aperture Priority / Brightness Priority | |
| Aperture Parameters | F1.8 ~ F11, CLOSE | |
| Shutter Speed | 1/25 ~ 1/10000 | |
| BLC | Off/On | |
| Dynamic Range | OFF / Dynamic Level Adjustment | |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | |
| SNR | ≥50dB | |
| Interface Features | ||

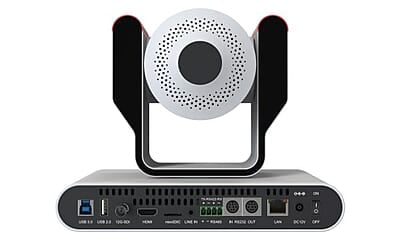

| Interfaces | HDMI, 12G-SDI, LAN/Dante AV-H (supports PoE), USB 2.0, A-IN, USB 3.0, Micro SD (FAT32), RS232-IN, RS232-OUT, RS422 (Compatible with RS485), Dial switch, DC12V, Power Switch | |
| Video Compression | LAN: H.264, H.265 USB 2.0: MJPG, H264, H265, YUY2, NV12 USB 3.0: YUY2 | |
| Audio-in Interface | Double track 3.5mm linear Input | |
| Audio-out Interface | HDMI, SDI, LAN | |
| Audio Compression | AAC, G.711A | |
| Sampling Frequency | 32000, 44100, 48000 | |
| LAN | 10M/100M/1000M adaptive Ethernet port, support POE and audio/video output | |
| Network Protocol | RTSP, RTMP, RTMPS, ONVIF, SRT, GB/T28181; VISCA Control Protocols | |
| Control Interface | RS232-IN, RS232-OUT, RS422 compatible with RS485, LAN | |
| Serial Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400 | |
| USB Communication Protocol | UVC (video) | |
| Power Interface | HEC3800 outlet (DC12V), PoE | |
| Power Adapter | In: AC110V-AC220V; Out: DC12V/2.5A | |
| Input Voltage | DC12V±10% | |
| Input Current | <1.5A | |
| Power Consumption | <12W | |
| PTZ Parameters | ||
| Pan Rotation | -170° ~ +170° | |
| Tilt Rotation | -30° ~ +90° | |
| Pan Control Speed | 0.1°/s ~ 100°/s | |
| Tilt Control Speed | 0.1°/s ~ 70°/s | |
| Preset Speed | Pan: 78.8°/s, Tilt: 31.7°/s | |
| Preset Number | 255 presets via Web GUI (10 presets using remote control) | |
| Other Parameters | ||
| Stored Temperature | 14°F ~ 140°F / -10°C ~ +60°C | |
| Storage Humidity | 20% ~ 95% | |
| Working Temperature | 14°F ~ 122°F / -10°C ~ +50°C | |
| Working Humidity | 20% ~ 80% | |
| Dimension | 8.7in(L) x 5.9in(W) x 7in(H) [220mm(L) x 150.2mm(W) x 177.5mm(H)] | |
| Weight | ~4 Lbs [~1.8kg] | |
| Working Environment | Indoor Only |
Camera's
- Resolution4K
- ProtocolDante
