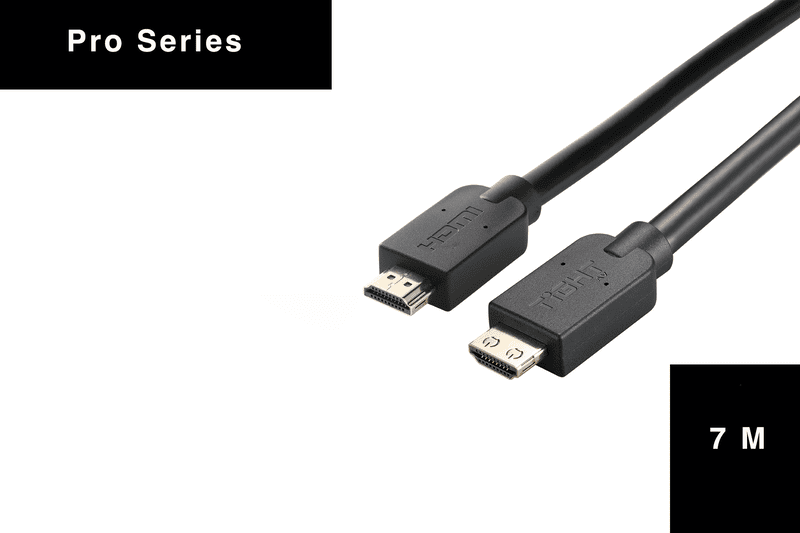

HDMI-M/M-PRO-7
The HDMI PRO cables are the recommended choice for high quality HDMI installation cables, offering exceptional performance and endurance.
The PRO-cables support video signals up to 4K@60Hz 4:4:4, HDR, HDCP 2.3, EDID, CEC, ARC, ETH, Dolby Digital Plus™, Dolby TrueHD™, DTS−HD Master Audio™, DVD Audio and SA−CD.
The cables provide an uncompressed digital link between professional equipment to ensure the highest possible quality of video and audio along with long lifetime, exceptional shielding and also great endurance when treated roughly. To ensure highest performance and quality, the cables are HDMI 2.0 ”Premium High Speed” certified up to 5m and support 4K@60 4:4:4 video resolution at any length. The 7m and 10m version are HDMI “High Speed” certified and can support up to 4K@60Hz 4:4:4.
It comes with high-quality connectors that are 24K gold-plated to resist corrosion and provide the best possible connectivity. The gold-plated HDMI connector features a C-Grip friction lock mechanism that provides a secure connection to all devices in your installation.
The cables feature triple shielding and a metal shell at the connector to ensure maximum EMI/RFI protection.
| TECHNICAL SPECIFICATIONS | |
| VIDEO | |
| Max Resolution for 0,5-5m: | 4K@60Hz 4:4:4, Premium High Speed Certification |
| Max Resolution for 7-10m: | Up to 4K@60Hz 4:4:4, High Speed Certification |
| Max Data Rate: | 18 Gbps (6Gbps per channel) |
| Supported Color Spaces: | RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020 |
| HDMI Compliance: | HDR, HDCP 2.3, EDID, CEC, ARC and ETH |
| AUDIO | |
| Supported Audio Formats: | Dolby Digital Plus™, Dolby TrueHD™, DTS−HD Master Audio™, DVD Audio, SA−CD |
| PHYSICAL | Male HDMI type A, 24K gold−plated T-Grip Connector |
| T-Grip withdraw force: | Mating Force 10KG max, Unmating Force 3KG min |
| Connector: | Copper shell with gold plating |
| Connector over mold: | PVC |
| Connector inner mold: | LD-PE |
| CONDUCTORS | |
| Material: | Bare Copper |
| 0,5-5m: | 28AWG (7/0.160) |
| 7-10m: | 26AWG (7/0.160) |
| Wire Specification: | (1P+D+ AL/MY)x5C+4C+FILLER+ADB(85%AL-M) |
| SCREENING | |
| Type: | Triple shielding |
| Metal can | |
| Type: | Nickel plated metal can |
| JACKET | |
| Color: | Black |
| Diameter for 0,5-5m: | 7.10 ± 0.25mm |
| Diameter for7-10m: | 8.50 ± 0.25mm |
| Material: | PVC |
| MECHANICAL | |
| Cable Bending Radius for 0,5-5m: | 45mm |
| Cable Bending Radius for 7-10m: | 90mm MAX |
| ELECTRICAL | |
| Temperature Rating: | 80°C |
| Storage Temperature: | (-)20-80°C |
| Voltage Rating: | 30V |
| Conductor Resistance – 28AWG: | 237Ω/KM |
| Conductor Resistance – 26AWG: | 149Ω/KM |
| Insulation Resistance: | >10MΩ |
| STANDARDS COMPLIANCE | |
| Safety: | VW-1 |
| Environmental: | RoHS, REACH, WEEE |
| Compliance | CE, UKCA |
| MODELS | |
| HDMI-M/M-PRO-0.5 | PREMIUM HIGH SPEED HDMI INSTALLATION CABLE WITH ETHERNET- 0.5M |
| HDMI-M/M-PRO-1 | PREMIUM HIGH SPEED HDMI INSTALLATION CABLE WITH ETHERNET - 1M |
| HDMI-M/M-PRO-2 | PREMIUM HIGH SPEED HDMI INSTALLATION CABLE WITH ETHERNET - 2M |
| HDMI-M/M-PRO-3 | PREMIUM HIGH SPEED HDMI INSTALLATION CABLE WITH ETHERNET - 3M |
| HDMI-M/M-PRO-5 | PREMIUM HIGH SPEED HDMI INSTALLATION CABLE WITH ETHERNET - 5M |

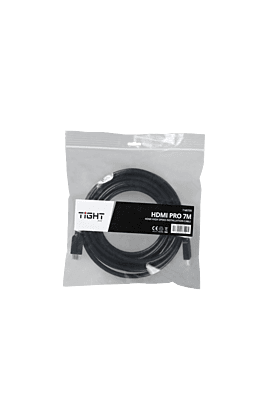

| HDMI-M/M-PRO-7 | HIGH SPEED HDMI INSTALLATION CABLE WITH ETHERNET - 7M |
| HDMI-M/M-PRO-10 | HIGH SPEED HDMI INSTALLATION CABLE WITH ETHERNET - 10M |
