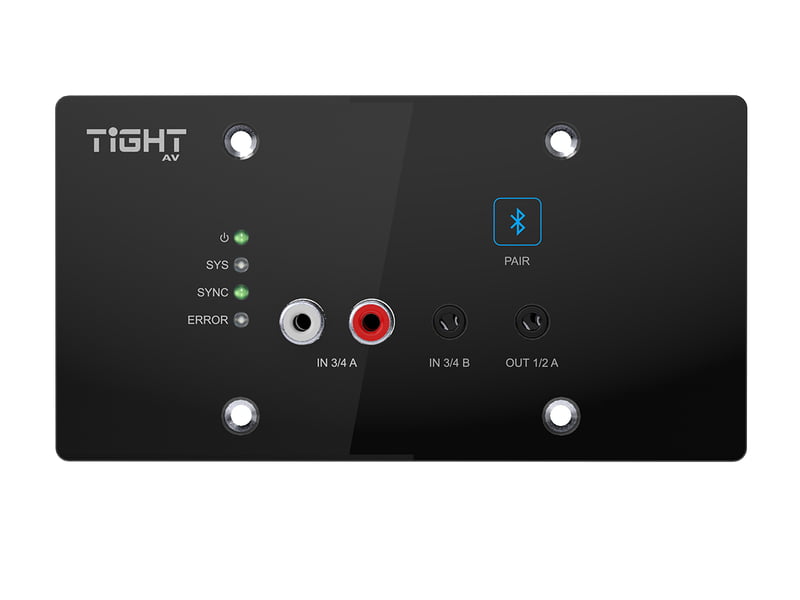

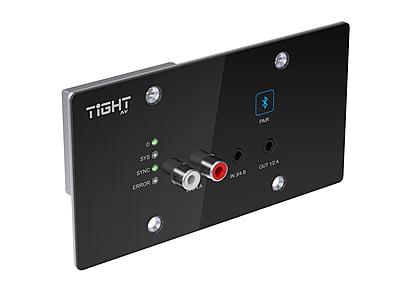

AU-BT413WP-DA-BL
BLUETOOTH DANTE WALL INTERFACE, BLACK
Featuring bi-directional Bluetooth audio, the interface allows you to transmit two channels of Bluetooth audio onto the Dante network, and simultaneously receive one Dante channel. The paring is as simple as pressing a button on the front panel, and you can give the unit any friendly name you like.
Need more I/O? No problemo. Additional inputs and outputs are available via unbalanced RCA and TRS mini-jack connectors on the front panel.
On the setup side, audio routing and control is maintained via Dante Controller and Domain Manager. A web UI handles the configuration of the device itself, with an open API for third-party control.
The AU-BT413WP-DA is perfect for simple BYOD, or you could use the call bridging feature for conference calls utilizing the existing audio equipment in the room.
Input | |
Inputs | Stereo Bluetooth 5.0 audio receiver L+R stereo unbalanced audio on RCA Stereo unbalanced audio on 3.5mm TRS |
Bluetooth Range | Recommended max 15m (depending on source Bluetooth device and installation environment) |
Output | |
Outputs | One channel Bluetooth 5.0 audio transmitter Two unbalanced line level outputs on 3.5mm TRS |
Audio Performance | |
Gain | Input: -12 ~ +18dB, 6dB per step Output: -60 ~ 0dB, 1dB per step |
Frequency Response | 20Hz - 20KHz (±0.5dB) |
Max Input Level | +12dBu @ 0dB input gain Output: +18dBu @ 0dB output gain |
Max Output Level | +12dBu @ 0dB input gain
|
Output Noise | <-79dBu @ 0dB gain |
THD | <0.05% at 0dBu,1kHz, 0dB gain |
Dante | |
Bit Depth | 24 |
Sample Rate | 44.1kHz or 48kHz |
Latency | 1,2 or 5ms (configurable using Dante Controller) |
Network Transport | Dante Audio over IP |
Control | |
Control | (1) Dante Network (1) Pair button |
Control Connector | (1) RJ45 (1) Bluetooth button |
General | |
Model Names | AU-BT413WP-DA-WH (white front) |
Power | 802.3af PoE |
Operation Temperature | -10℃ ~ +55℃ |
Storage Temperature | -25℃ ~ +70℃ |
Relative Humility | 10%-90% |
Power Consumption | 4.22W (Max) |
Dimension (WxHxD) | 151mm x 80mm x 42mm |
Net Weight | 195g |
Shipping Dimension | 178mm x 108mm x 55mm |
Shipping Weight | 300g |
Compliance Environmental RoHs, WEEE | FCC, CE |
Environmental | RoHs, WEEE |
