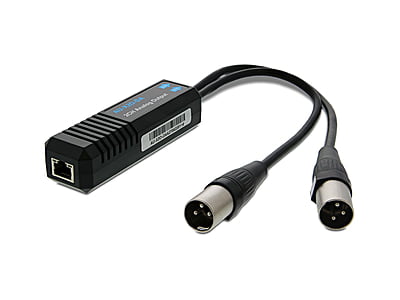

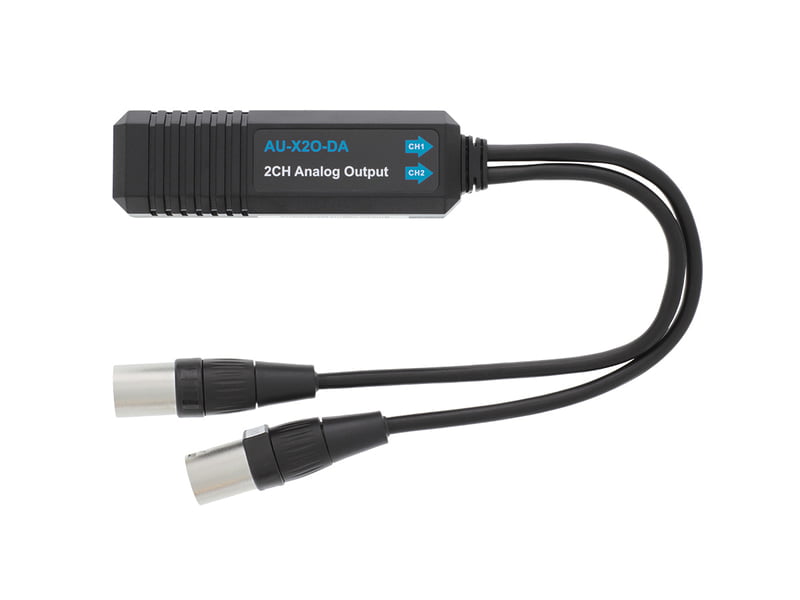

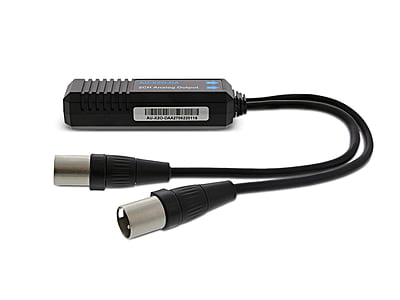

AU-X2O-DA
DANTE 2-CHANNEL XLR OUTPUT ADAPTER
AU-X2O-DA from TiGHT AV outputs two channels of analog line level audio from your Dante network. It supports sample rates up to 96kHz, using Audinate’s original Dante Ultimo chip.
Featuring two male XLR standard connectors, the AU-X2O-DA is a simple and cost-efficient solution to connect analog equipment to a Dante network.
PoE support allows for a simplified installation via a PoE-capable network switch or from a separate PoE injector.
KEY FEATURES:
-Plug and Play
-2 x line outputs on standard XLR male connectors
-Dante and AES67 support
-24-bit audio support
-Supports 802.3af PoE
-Dante Controller and Dante Domain Manager compatible
AUDIO | |
Max signal level | +18 dBu / +4 dBu / 0 dBu 0 dBV /-10 dBV |
Frequency Response | 20 Hz to 20 kHz (-/+0.5dB) |
Impedance | 150 Ohm balanced 75 Ohm unbalanced |
Dynamic Range | >100 dB |
Signal to Noise Ratio | >100 dB |
THD | <0.01% @+4 dBu |
DANTE | |
Sample Rate | 44.1 kHz, 48 kHz, 96 kHz |
Bit Depth | 24 |
Dante Device Latency | 1, 2 or 5 ms (configurable using Dante Controller) |
Network Transport | Dante Audio over IP AES67 RTP |
Model Name | AU-X2O-DA |
GENERAL | |
Connectors | 2 XLR-M |
Operation Temperature | -5 to +55 (+23° to +131°F) |
Storage Temperature | -25 to +70℃ (-13° to +158°F) |
Power | 802.3af PoE |
Power Consumption | 2.6W (Max) |
Dimension (W*H*D) | 30 x 28 x 114 mm |
Cable length | 300mm |
Net Weight | 145g |
Compliance | FCC, CE |
Environmental | RoHs, WEEE |
