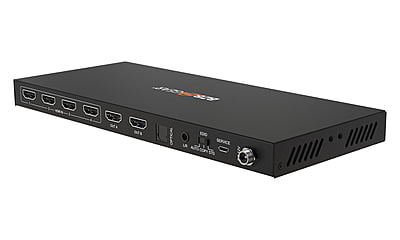

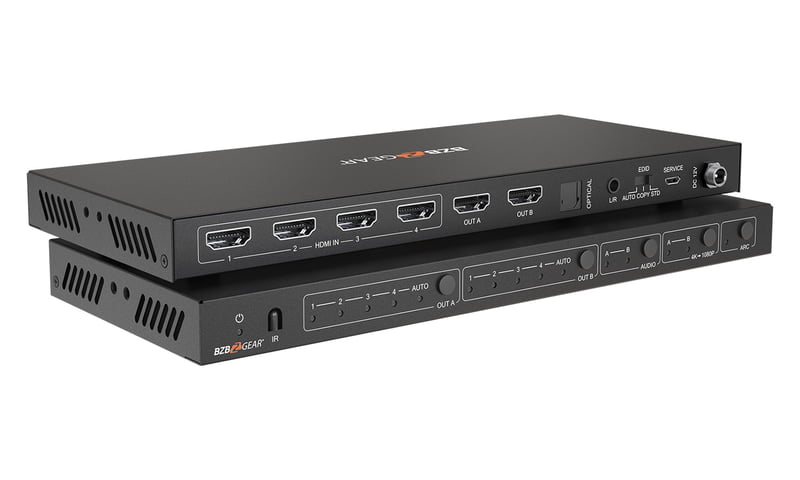

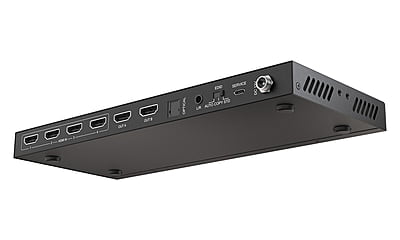

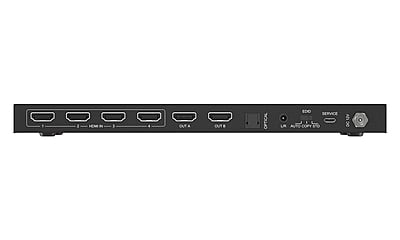

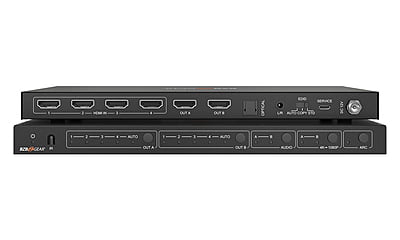

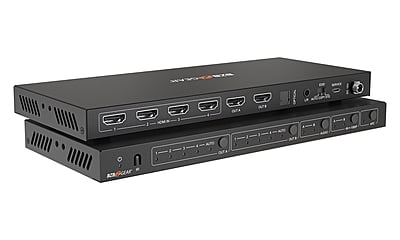

BG-UHD-42M

The BG-UHD-42M is a 4K HDMI matrix switch with four HDMI inputs and two HDMI outputs. This unit can be used to route any of the four HDMI inputs to either of the two HDMI outputs. This matrix is a great choice for anyone looking to share up to four 4K sources between two TVs. Applications include conference rooms, sports bars, restaurants, and auditoriums.

Connectivity

The BG-UHD-42M supports a maximum resolution of 4K@60Hz 4:4:4. With 18 Gbps of uncompressed bandwidth, HDMI signals are routed with no loss of quality. All HDMI ports on this device are HDMI 2.0a and HDCP 2.2 compliant. Both HDMI outputs support downscaling from 4K to 1080p, ensuring compatibility with legacy displays.

Dolby Vision, HDR 10+, HLG, and CEC are supported. With optical and analog outputs, the BG-UHD-42M provides audio de-embedding from each HDMI input. Audio Return Channel (ARC) is supported.

Control

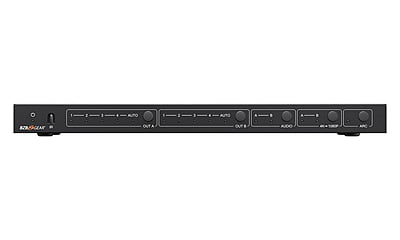

The advanced EDID management of the BG-UHD-42M increases reliability and makes it easy to overcome HDMI connectivity issues. The matrix can be controlled using the front panel buttons or with the included IR remote control.

Features

• Stunning Image Quality Supports resolutions up to 4K@60Hz 4:4:4
• HDCP 2.2 & HDCP 1.4 High-Bandwidth Digital Content Protection Supported
• EDID Advanced EDID management for rapid integration of sources and displays
• Easy to Use Flexible control via front panel buttons and IR remote
• 4x2 Matrix Route any of the 4 inputs to either of the 2 outputs
• Auto-Scaling Supports resolution downscaling from 4K to 1080P

• Supports 18Gbps uncompressed bandwidth on all HDMI ports
• Supports audio de-embedding via optical and analog outputs
• Features 4 HDMI inputs and 2 HDMI outputs
• Durable metal enclosure designed to last for years
• Supports Dolby Vision, HDR 10+, HLG, and CEC function
• Supports ARC
