VC-C101U-ETH
The VC-C101U-ETH converts 4K@60Hz 4:4:4(max) DisplayPort alt mode signal over USB-C video input to 4K@60Hz 4:4:4(max) HDMI 2.0 video output.
For the USB-C input interface, it also supports USB 3.2 Gen1 data transfer, Gigabit LAN and 100W fast-charging.

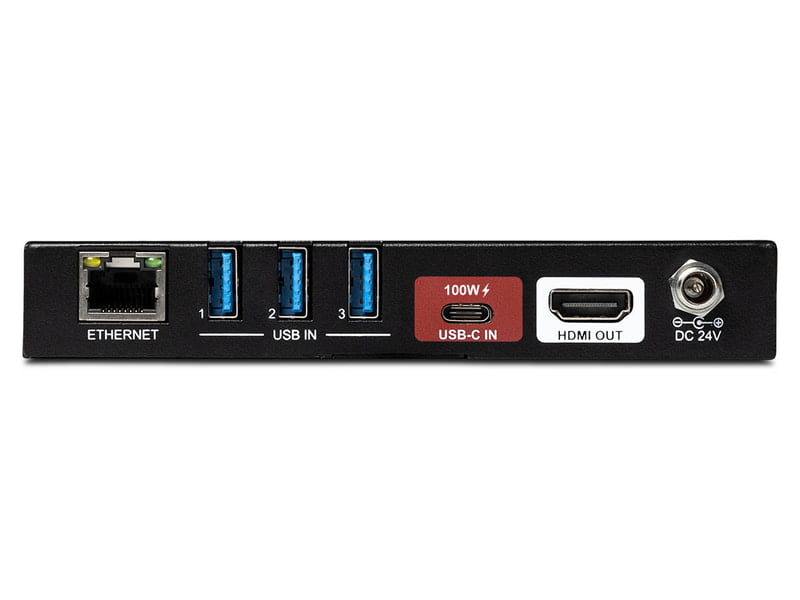

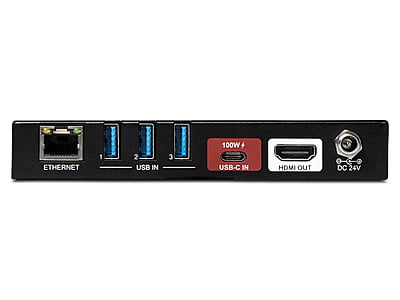

The converter includes three USB 3.2 device ports and one Ethernet Gigabit LAN port.
Features
- Input supports DisplayPort Alt mode up to 4K@60Hz 4:4:4 using DisplayPort 1.4 (DisplayPort 1.2 is limited to 4K@30Hz 4:4:4).
- Output supports HDMI 2.0, 4K@60Hz 4:4:4.
- HDCP 2.3 support.
- USB-C input supports 100W USB Power Delivery.
- Supports USB3.2 Gen1 (up to 5 Gbit/s) data transfer via USB-C.

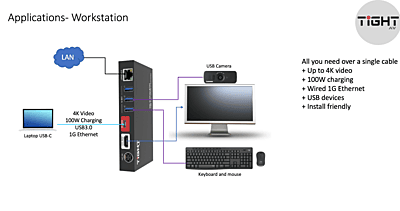

- 3x USB 3.2 device ports for camera, keyboard and mouse.
- Ethernet Gigabit LAN pass-through via USB-C
- No software drivers required - Plug and Play.
Video Input | |
Input | (1) 2-lane DisplayPort alt mode, DisplayPort 1.4 |
Input Connector | (1) USB-C |
Input Resolution | Up to 4K@60Hz 4:4:4 (HBR3, 8.1Gbps) |
| |
Output | (1) HDMI |
Output Connector | (1) Female type-A HDMI |
HDMI Output Resolution | Up to 4K@60Hz 4:4:4 (18Gbps) |
HDMI Standard | 2.0b |
HDCP Version | 2.3/1.x compliant |
| |
Connector | (3) USB-A, (1) USB-C |
USB Standard | (3) USB-A: USB 3.2 Gen 1, 5V1A External Power Supply (1) USB-C: USB 3.2 Gen 1, DisplayPort Alt mode, 100W PD |
| |
Standard | 10/100/1000Base-T |
| |
Bandwidth | 18Gbps |
Operation Temperature | -10 ~ +55℃ |
Storage Temperature | -25 ~ +70℃ |
Relative Humility | 10% - 90% |
Power Supply | Input:100V~240V AC; Output: 24V DC 6.25A |
Power Consumption | 143W(Max) |
Dimension (W*H*D) | 145mm x 22mm x 80mm |
Net Weight | 290g |
Compliance | FCC, CE |
Environmental Compliance | RoHS, REACH, WEEE |
