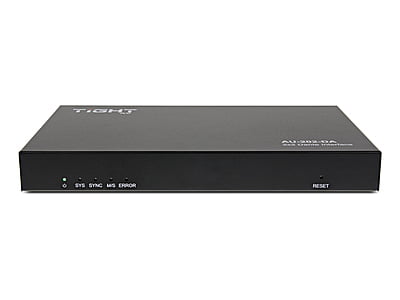

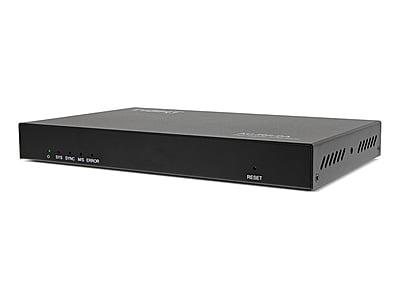

AU-202-DA
2X2 DANTE INTERFACE
The 2x2 Dante is a network audio interface allowing users to integrate up to 2x2 audio channels of Dante audio into networked AV systems. Each input features a microphone preamplifier and 48V phantom power option.
The 2x2 Dante features PoE power capability and local power. A small form factor and included mounting ears makes it easy to add Dante connectivity wherever it is needed. It can be close to the audio source or sink to eliminate the need for costly and interference-prone analog wiring.

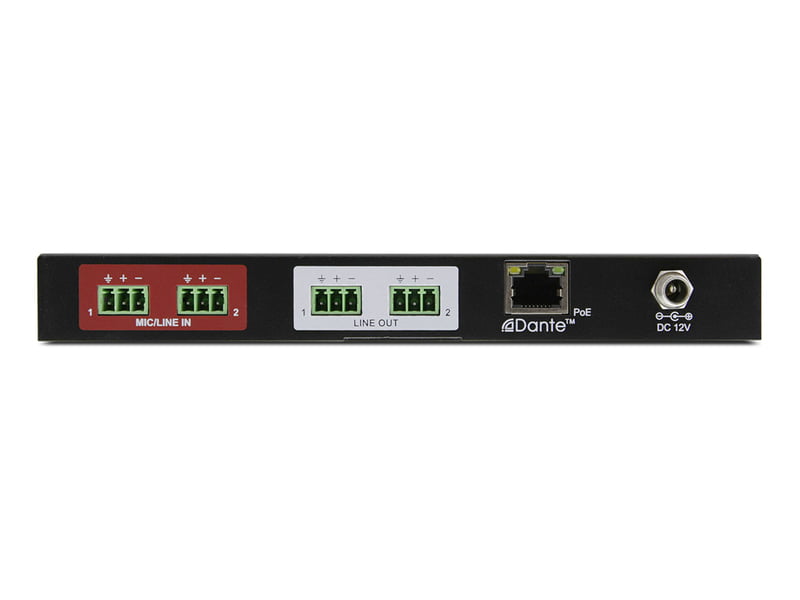

Input | |
Input | (2) MIC/LINE IN |
Input Connector | (2) 3-pin Green Terminal Blocks |
Phantom Power | 48V, software selectable for each input |
Output | |
Output | (2) LINE OUT |
Output | (2) 3-pin Green Terminal Blocks |
Output Type | Balanced line level with automatic muting on loss of Dante signal |
Audio Performance | |
Gain | Input: 0 ~ +48dB, 6dB per step |
Max Level | Input: +18dBu @ 0dB input gain |
Input | >1.8kΩ |
Effective Input | -119dB @ 48dB gain |
Output Noise | <-79dBu @ 0dB gain |
THD | <0.05% at any gain |
Sample Rate | 44.1kHz or 48kHz |
Control | |
Control Port | (1) Dante Network |
Control | (1) RJ45 |
General | |
External Power Supply | Input: AC 100~240V, 50/60Hz; Output: 12V DC 1A |
Operation | -10℃ ~ +55℃ |
Storage | -25℃ ~ +70℃ |
Relative Humility | 10%-90% |
Dimension | 185mm x 115mm x 22mm |
Net Weight | 500g |
