BG-MKVM41R

This seamless-switching quad KVM multiviewer is a great choice for anyone looking for an easy way to control four separate devices on one screen with one set of peripherals. With one mouse and one keyboard, a user can control up to four PCs in quad-view simply by hovering the mouse over the desktop of the computer they’d like to control on the screen to instantaneously activate control over that machine.

The BG-MKVM41R can help create a productivity enhanced workstation and also enables several PCs to share a printer, camera, or other peripherals via two USB 2.0 ports.

Connectivity

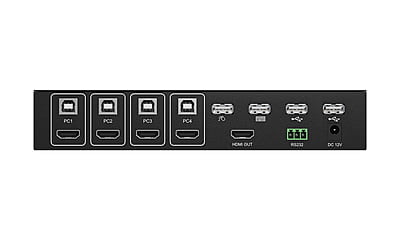

With four HDMI/USB 2.0 PC HOST ports and one HDMI output, connecting four devices and displaying them on one screen in quad-view is simple. They can also be shown in full screen and switched between via different control methods. The BG-MKVM41R can support HDMI output resolutions up to 1080p@60Hz. This device is compliant with HDMI 1.3a and HDCP 1.2. The device can also be controlled via a RS-232 connection.

The ability to display and control four separate devices on one screen offers unparalleled productivity and versatility for anyone looking to make the most out of a device management workstation.

Control

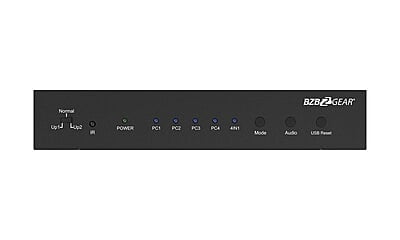

Users can easily switch between displays using mouse and keyboard hot keys. Front panel buttons on the switcher are also available, as well as an IR remote controller. With the two USB 2.0 device ports, up to four computers can share the same printer, camera, or other peripherals. An audio push button is also available that allows users to select the audio from the BG-MKVM41R’s HDMI input sources while using quad-view.

The BG-MKVM41R’s superior control over multiple devices makes it a great choice for multi-computer workstations in conference rooms, industrial centers, and surveillance applications.

Features

• Multi-Viewer View up to 4 computers or devices on one screen simultaneously
• Seamless KVM Control Control connected devices in quad-view by merely hovering your mouse over the desired screen
• HDCP 1.2 High-Bandwidth Digital Content Protection Supported
• Full HD Supports 1080@60Hz for crystal clear images
• USB 2.0 Supports up to 4 USB peripherals to share between connected device
• Compatible Compatible with Mac OS and Windows

• Control with mouse, keyboard, hot keys, front panel button, RS232, or IR control
• Supports multiple output resolutions
• Maximum resolution of 1080p@60Hz for crystal clear images
