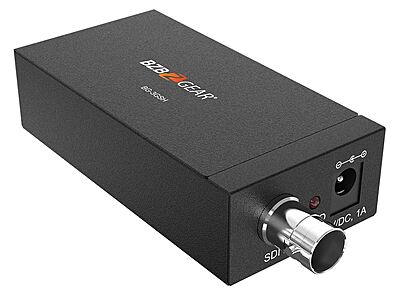

BG-3GSH
The BG-3GSH is a versatile signal converter designed to convert SD-SDI, HD-SDI, and 3G-SDI signals to the more commonly used HDMI interface. With a high bit rate of 2.970 Gbit/s, the unit supports transmission of video signals without any loss, ensuring a crystal-clear 1080p@60 image on HDMI displays. The BG-3GSH also supports SMPTE 425M, SMPTE 424M, SMPTE 292M, and SMPTE 259M-C standards, making it compatible with a wide range of video sources.
In addition to its signal conversion capabilities, the BG-3GSH also offers the ability to convert from SMPTE 425M Level B to Level A 1080p 50/59.94/60 4:2:2 10-bit, making it a powerful tool for professionals working with high-quality video content. The unit can accept 3G-SDI signals using long-range SDI cables, and convert it to display on consumer-grade HDMI displays.
Durability is also a key feature of the BG-3GSH. The unit is housed in a sturdy metal housing, providing protection against damage from everyday wear and tear, as well as ensuring reliable performance in demanding environments.
Features
- 1080p/60 Support Crystal clear images with resolutions up to 1080p@60Hz
- Portable Ideal for any on-the-go kit
- Rigid Design Durable metal structure built to withstand years of operation
- Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s
- Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
- Connect with other units to extend your signal over long distances
- Easy to Use - Simple for anyone to learn
