AU-H101A | 18G HDMI 2.0 Repeater With Audio De-Embedding
HDMI DE-EMBEDDER
The AU-H101A is a small-size HDMI 2.0 audio de-embedder with 1 HDMI input, 1 HDMI output, and three different types of audio outputs. It is designed to extract audio from a HDMI signal via stereo balanced L/R audio, analog RCA, and coaxial digital audio output.
It also features an HDMI equalizer to ensure full HDMI signal integrity is maintained. The AU-H101A can compensate for poor source signals or low-quality cabling at the end of a long cable run.
EDID and CEC pass-through ensures that the source video is at the optimal resolution for the display and can be controlled by CEC from source.
KEY FEATURES:
• De-embeds analog audio and coaxial digital audio from an HDMI signal.
• HDMI equalization.
• Three selectable audio modes.
• 4K@60Hz (4:4:4) and data rates up to 18 Gbps.
• HDMI 2.0 and HDR support.
• HDCP 2.2/1.4 support.
• EDID and CEC pass-through.
Video | |

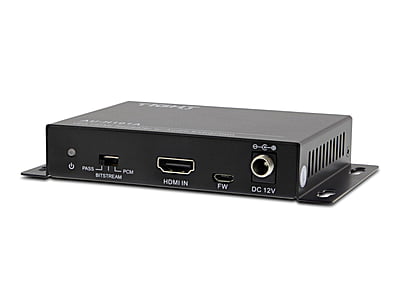

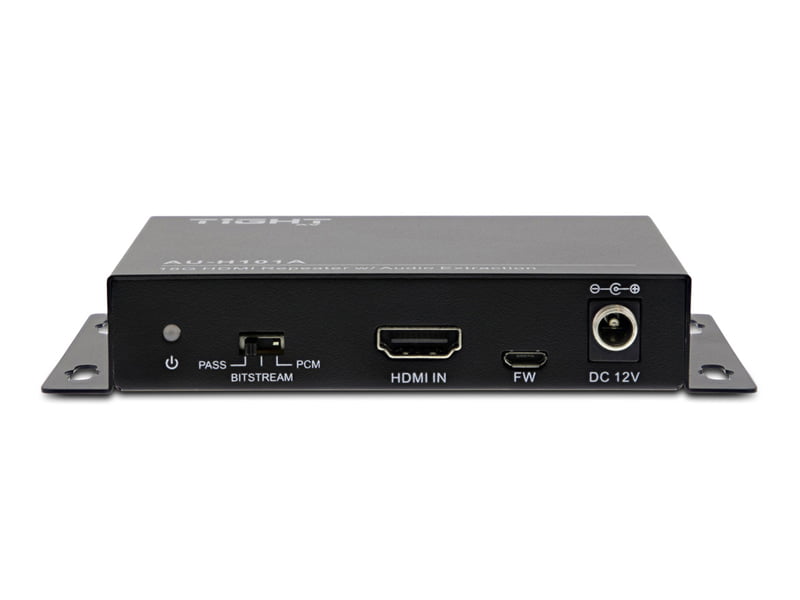

Input | (1) HDMI |
Input connector | (1) 19-pin type-A female HDMI 2.0, HDCP2.2 |
Output | (1) HDMI |
Output connector | (1) 19-pin type-A female HDMI 2.0, HDCP1.4 |
Audio | |

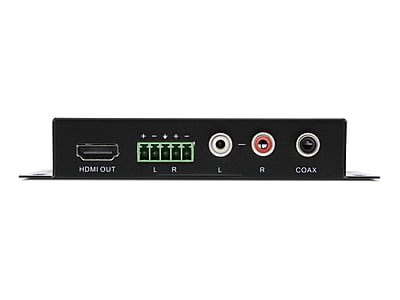

Output | (1) Stereo balanced audio L/R; (1) Analog audio L+R ; (1) COAX |
Output connector | (1) 5-Pin phoenix connector; (1) RCA ; (1) Coaxial audio connector |
Stereo analog audio format | PCM |
Coax digital audio format | LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH |
General | |
Max data rate | 18Gbit/s |
Max resolution | 4Kx2K@60Hz 4:4:4 |
Work Temperature | -10~ 55℃ |
Reference humidity | 10% ~ 90% |
Power consumption | 3 W (Max) |
Power supply | Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC 1A |
Dimension (W*H*D) | 129mm x 21.5 mm x77 mm |
Net weight | 244g |
