HDMI-M/M-AOC-30

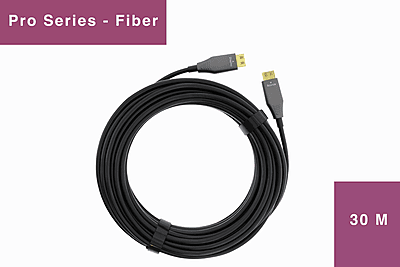

PRO HDMI ACTIVE FIBER CABLE, 30M
K/8K@60Hz 4:4:4 and full bandwidth of 48Gbps. Powered by the HDMI source device. No external power supply needed. Available in 15m, 30m and 60m lengths.
> 4K/8K@60Hz 4:4:4 and full bandwidth of 48Gbps.
> Proprietary Low Power High Bandwidth Chipset.
> EMI (electromagnetic interference) protection.
> Powered by the HDMI source device. No external power supply needed.
> Connector locking mechanism for secure installation.
> Durable and strong.
> Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM)
> Quick Frame Transport (QFT).
> Supports Dynamic HDR and eARC.
Models | HDMI-M/M-AOC-15 HDMI-M/M-AOC-30HDMI-M/M-AOC-60 |
Protocol specification | HDMI 2.1 & HDMI 2.0 & HDMI 1.4 |
Video resolution | Up to 8K@60Hz 4:4:4 |
Transmission speed | 48Gbps(12Gbps per channel) |
Connector | |

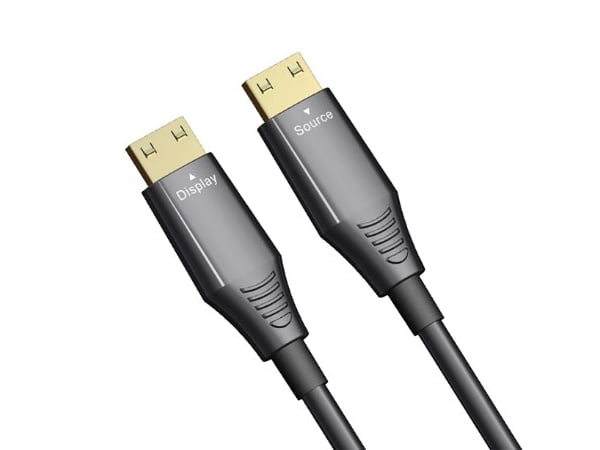

Source | HDMI Type A Male (Gold plating) |
Display | HDMI Type A Male (Gold plating) |
Cable | |
Cable specifications | 1C+(2c*30#+DA)+3C*28#+2C*24#+F+AL+B |
Optical fiber specifications | 4*Multi-mode optical fiber |
Available lengths | HDMI-M/M-AOC-15: 15 meters HDMI-M/M-AOC-30: 30 meters HDMI-M/M-AOC-60: 60 meters |
Outer sheath material | PVC |
Outer sheath color | Black |
Outer diameter | 5.2mm±0.1mm |
Cable bending radius | 6mm |
Connector max pulling strength | 150N (15kg,33lbs) |
Cable max pulling strength | 500N (50kg,110lbs) |
Environment | |
Operating temperature | -20℃ to +70℃ |
Storage temperature | -40℃ to +80℃ |
Power | |
Input voltage | +5V |
Energy consumption | ≤500mW |
Attention | |
Please avoid excessive bending of the optical fiber during use. Refer to "bending" radius for details. |
