BG-B20SHA

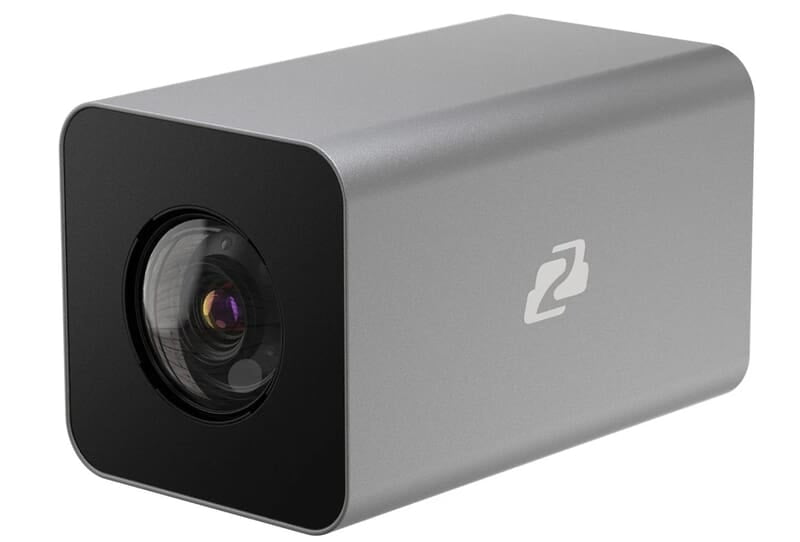

The BG-B20SHA/BG-B30SHA 20X/30X optical zoom IP-streaming camera utilizes a high-quality CMOS sensor to deliver crisp HD video signals. Its compact design provides versatile placement options and ease-of-use in a sleek low-profile housing. This camera is well-suited for a wide variety of broadcast and professional A/V applications including lecture streaming, education, room monitoring, studios, and more.

With a 1/2.8” Sony CMOS sensor, the BG-BSHA series provides crystal clear imaging at resolutions up to 1080p@60Hz. The 20X/30X optical zoom lens allows the camera to capture tight close-ups, even at a distance.

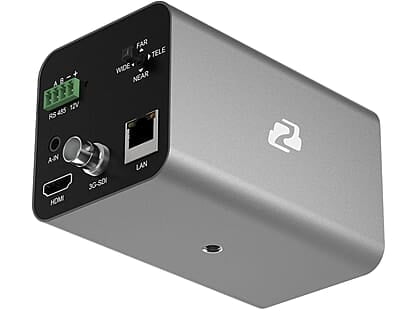

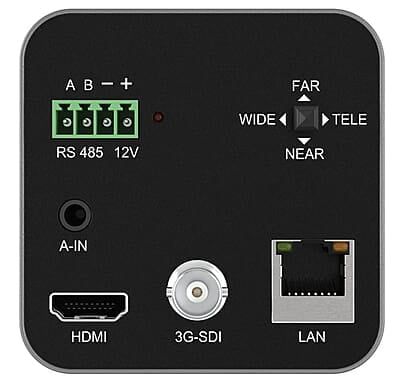

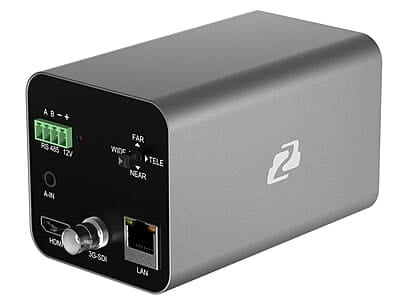

The BG-BSHA series features simultaneous 3G-SDI, HDMI, and IP streaming outputs. By utilizing the 3.5mm audio input, audio can be embedded into your livestreams and recordings with ease.

Connectivity and Control

The BG-BSHA series supports multiple streaming protocols and compression formats including ONVIF, RTSP, RTMP, and SRT. This enables users to stream directly to sites like Facebook and YouTube. The combination of outputs provides a high degree of versatility, allowing the BG-BSHA series to be easily integrated into most workflows.

Designed for installation in remote locations, the BG-BSHA series can be operated via serial (RS485) control or web interface. The web interface provides a full suite of image adjustment options. It supports PELCO-D, PELCO-P, VISCA, and IP-VISCA protocols, providing support for compatible joystick controllers.

Features

• Crystal Clear Output Full HD output delivers up to 1080p@60Hz video
• Multiple Outputs Outputs simultaneously from HDMI/3G-SDI/ IP
• Zoom 20X/30X Optical Zoom Lens
• External Audio Input Add a microphone or other audio source
• PoE Power and connect to the camera using just one CAT cable
• Multiple Control Protocols Supports ONVIF, PELCO-D, PELCO-P, VISCA

• Multiple output resolutions available
• Small form factor for tight installations
• RS-485 & RS-232 serial control options
• H.265/H.264 encoding
• 2D / 3D noise reduction
• Auto white balance, iris, and focus options
