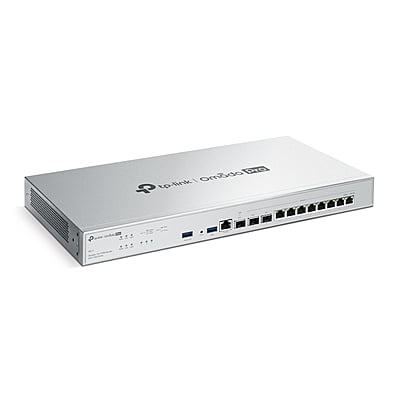

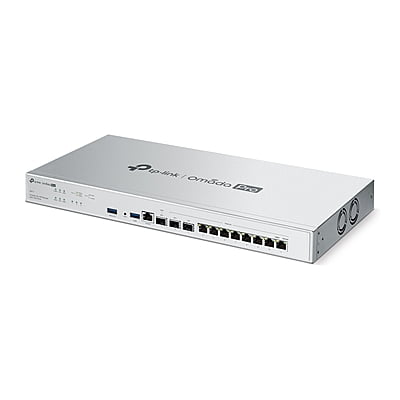

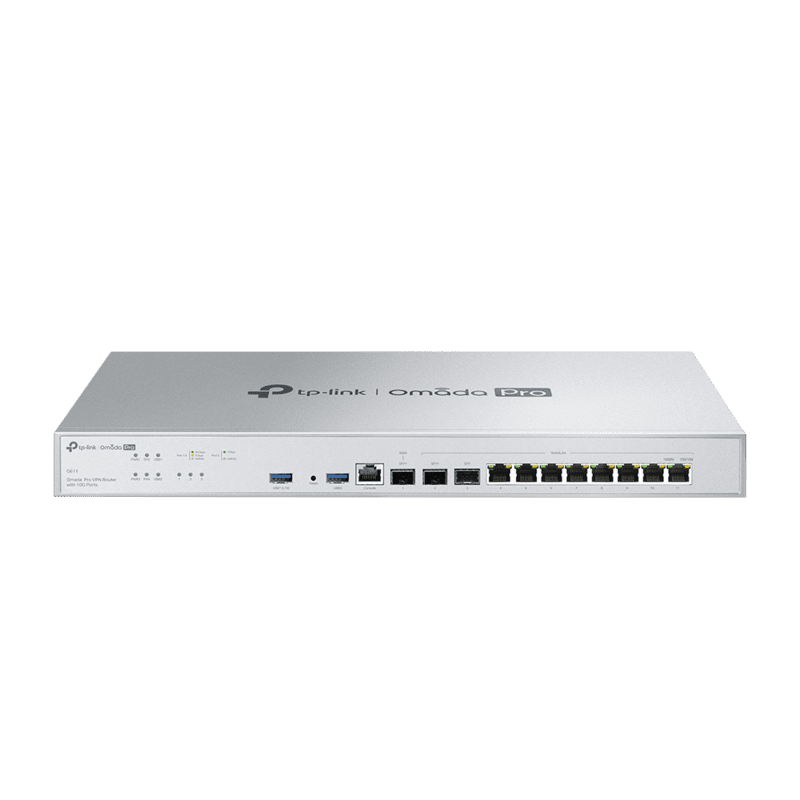

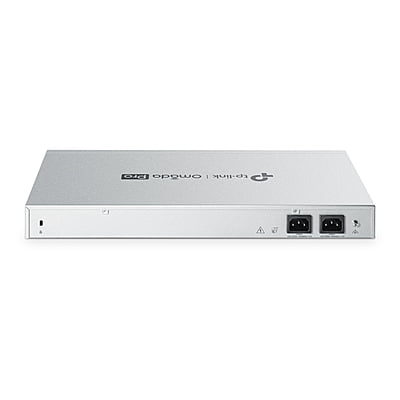

G611
What This Product Does
The G611 is a superb VPN router with 10G ports. It comes with a quad-core Cortex-A72 @2.2GHz CPU and 4GB DDR4 high-speed memory for outstanding performance.
10× WAN Ports & One USB WAN for Mobile Broadband
Up to 10× WAN SFP+, SFP, and RJ45 ports allow the router to support various internet access requirements.*1 Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup. Note: At least one of the ten WAN/LAN ports needs to function as a LAN.
High-Security and High-Performance VPN
G611 supports pass-through traffic and multiple VPN protocols, including WireGuard, SSL, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.*2 The router also features built-in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels.
Robust Security Features
G611 supports various security features. Advanced firewall policies protect your network data and resources. Intrusion detection systems (IDS)*2 monitor and analyze your network traffic for signs of intrusion. DoS Defense automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats. IP-MAC Binding reserves static IP assignments for clients to defend against ARP attacks and spoofing. More features like advanced firewall policies, VLAN Support, and One-Click ALG Activation further improve network security.
Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employees via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Integrated into Omada Pro
Integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP)*3. Omada Pro’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Omada Pro VPN Router with 10G Ports
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*3, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Two 10GE SFP+ Ports: 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
- Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
- Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / Wireguard / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH.
- Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.
Router Specifications
- FormfactorRackmount
- Ethernetport10 Gbps
- ManagementSDN Managed
- Nr. of WAN Ports6
- Nr. of IPsec VPN Tunnels100
- Nr. of PPTP VPN Tunnels50
- Nr. of L2TP VPN Tunnels16
