AU-X2OPRO-DA
DANTE 2-CHANNEL OUTPUT ADAPTER
The AU-X2IPRO-DA by TiGHT AV conveniently delivers two channels of analog audio into your Dante network. Utilizing Audinate’s original Dante Ultimo chip, the unit supports sample rates up to 96kHz.

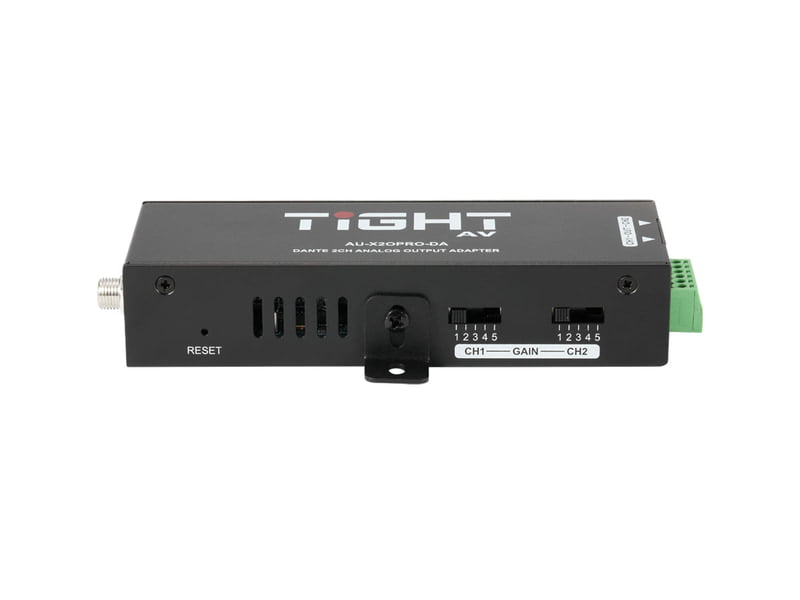

Designed for easy installation, it features phoenix analog connectors, output gain settings through dip switches, a reset button, rugged metal housing, and the flexibility of local power or POE-injection. The AU-X2OPRO-DA offers a straightforward and cost-effective solution for integrating analog equipment into professional Dante network setups.
For a simplified setup, PoE support allows easy installation via a PoE-capable network switch or a separate power supply. Optional accessories include Phoenix to XLR cables, enhancing versatility in your connectivity options.
Audio | |
Max output level (balanced) | +18 dBu / +4 dBu / 0 dBu/ 0 dBV /-10 dBV |
Frequency Response | 20Hz to 20kHz (-/+0.5dB) |
Impedance | 150 Ohm balanced 75 Ohm unbalanced |
Dynamic Range | >100 dB |
Signal to Noise Ratio | >100 dB |
THD | <0.01% @+4 dBu |
| |
Sample Rate | 44.1kHz, 48kHz, 96kHz |
Bit Depth | 24 |
Dante Device Latency | 1, 2 or 5ms (configurable using Dante Controller) |
Network Transport | Dante Audio over IP AES67 RTP |
| |
Operation Temperature | -5 to +55 (+23° to +131°F) |
Storage Temperature | -25 to +70℃ (-13° to +158°F) |
Power | 802.3af PoE or DC12V |
Power Consumption | 2.6W (Max) |
Dimension (W*H*D) | 128 x 26 x 48 mm |
Net Weight | 195g |
Compliance | FCC, CE |
Environmental | RoHS, REACH, WEEE |
