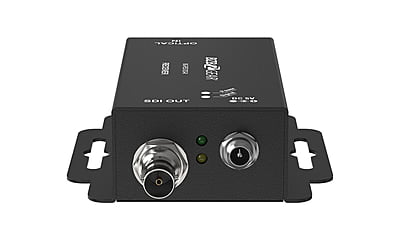

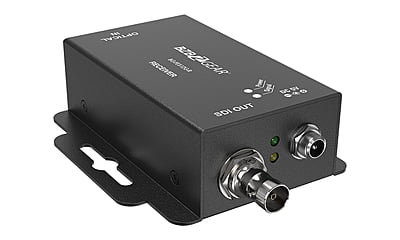

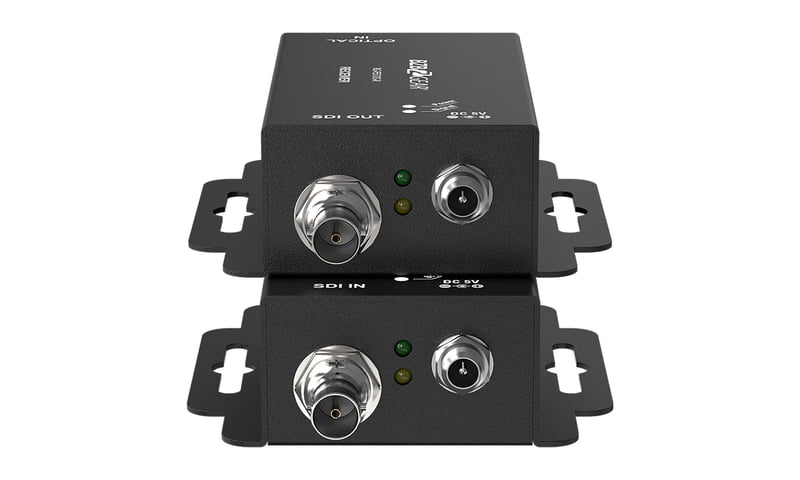

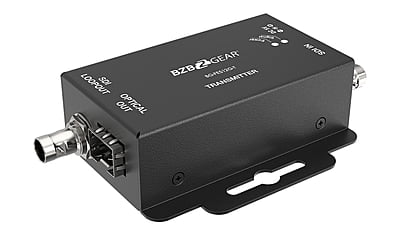

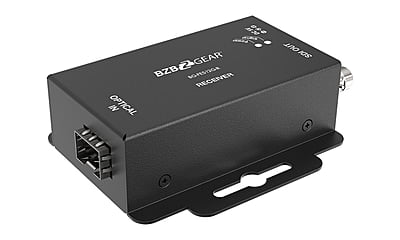

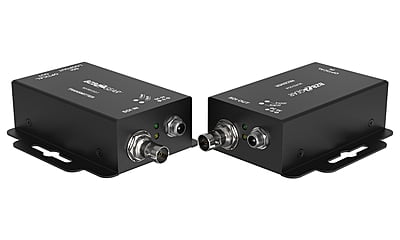

BG-FES12G

The BG-FES12G is an advanced SDI extender that enables the extension of multiple SDI formats (12G/6G/3G/HD) with embedded audio up to a distance of 10 km (6.25 miles) over a single-mode fiber optic cable. With transmission speeds of up to 11.88 Gbps, this device ensures fast and reliable signal transmission for your SDI applications.

The transmitter and receiver units of this extender both feature equalizing and re-clocking functions, which help to maintain consistent signal quality over long distances. Additionally, the transmitter includes a handy SDI loop-out port for local display. The locking power supply featured on both units ensures a secure and reliable connection, giving you peace of mind and worry-free operation.

With the BG-FES12G, you can enjoy exceptional signal quality and reliable performance for all your SDI applications, whether it's for broadcasting, post-production, or live events.

Enhanced Quality and Reliability

High-Quality Content Guaranteed: With its 4K/60 4:4:4 support, this device allows you to stream high-resolution content with stunning color depth and clarity, making it ideal for professional broadcast applications.

Hassle-Free Integration: The device's single-mode SFP compatibility makes it easy to integrate into your existing fiber optic infrastructure, allowing you to extend your SDI signals up to 10 km (6.25 miles) without any degradation in signal quality. And with speeds up to 11.88 Gbps, you can be sure your video signals will be transmitted quickly and efficiently.

TAA COMPLIANT PRODUCT

This product meets the standards of the Trade Agreement Act (TAA).

Features

• 4K/60 4:4:4 Support Ultra HD refers to a TV resolution of 3840 x 2160 pixels
• Multiple SDI Formats 12G/6G/3G/HD/SD
• High-Bandwidth Up to 11.88 Gbps
• Extreme Range Extend signal up to 10 km/6.25 miles
• Fiber-Optic Connection Single-Mode SFP
• Locking Cables Ensures reliable connection for power and video

• SDI Loop-out on Transmitter to view content locally
• Immune to RP-198 pathological patters
• Automatic Re-clocking - Maintains solid signal lock
